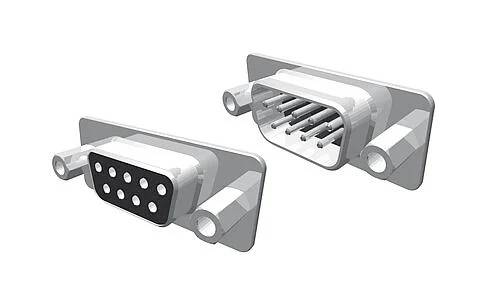

MPE Garry 596-4-009M-A00TS-BS0 D-SUB pin strip D-Sub pin strip 1 pc(s) Piece
Packaging type
Piece
Product type
D-SUB pin strip
Connection
D-Sub pin strip
Content
1 pc(s)
Manufacturer part #
596-4-009M-A00TS-BS0
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
D-Sub socket terminal strip, punched solder cup
- D-SUB pin strip
Our service for you
Technical specifications
- Soldibility 230 °C / 10 s
- Voltage resistance 500 V / min.
- Packaging type
Piece
- Product type
D-SUB pin strip
- Connection
D-Sub pin strip
- Content
1 pc(s)
- Manufacturer part #
596-4-009M-A00TS-BS0
- Contact type
Punched contacts
- RoHS-compliant
Yes
- Type
596-4-009M-A00TS-BS0

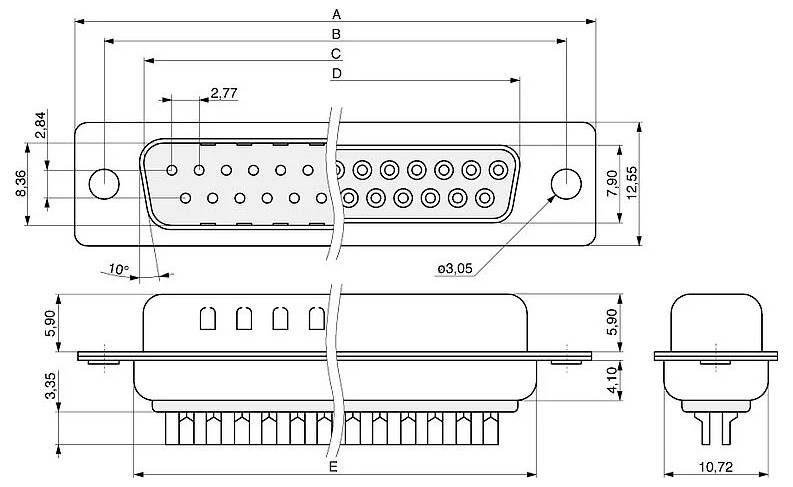

- Depth
12.55 mm
- Height
15.4 mm
- Width
30.8 mm
- Nominal current
5 A
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3735556 MPE Garry 596-4-009M-A00TS-BS0 D-SUB pin strip D-Sub pin strip 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735556 MPE Garry 596-4-009M-A00TS-BS0 D-SUB pin strip D-Sub pin strip 1 pc(s) Piece
Description
D-SUB header with punched contacts, with solder cup
For vertical PCB mounting
This text is machine translated.
For vertical PCB mounting
This text is machine translated.
Hints
Suitable mounting brackets and mounting kits must be ordered separately
