MPE Garry 597-3-015M-NB0NS-BS0 D-SUB pin strip 90 ° Solder pins 1 pc(s) Piece
Packaging type
Piece
Product type
D-SUB pin strip
Connection
Solder pins
Content
1 pc(s)
Connection angle
90 °
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
D-Sub pin connector Solder pin, angled 8.08mm SNA
- D-SUB pin strip
Our service for you
Technical specifications
- Soldibility 230 °C / 10 s
- Voltage resistance 500 V / min.
- Packaging type
Piece
- Product type
D-SUB pin strip
- Connection
Solder pins
- Connection angle
90°
- Content
1 pc(s)
- Manufacturer part #
597-3-015M-NB0NS-BS0
- Contact type
Punched contacts
- RoHS-compliant
Yes
- Features
+ 4-40 internal thread
- Type
597-3-015M-NB0NS-BS0

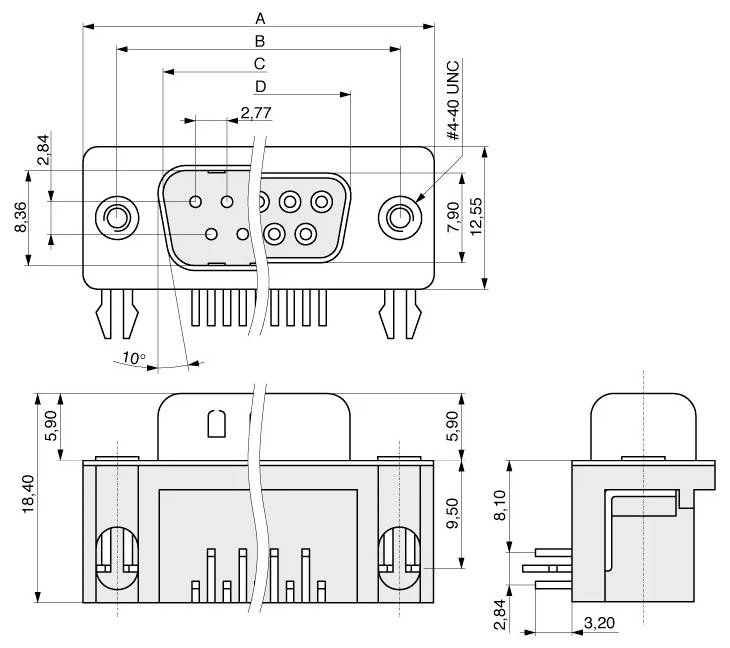

- Depth
18.4 mm
- Height
12.6 mm
- Width
39.1 mm
- Nominal current
5 A
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3735560 MPE Garry 597-3-015M-NB0NS-BS0 D-SUB pin strip 90 ° Solder pins 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735560 MPE Garry 597-3-015M-NB0NS-BS0 D-SUB pin strip 90 ° Solder pins 1 pc(s) Piece
Description

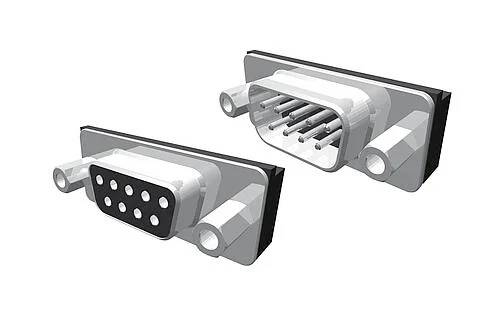

D-SUB header with punched contacts, 90° angled, with solder pins
PCB mounting: Spacer and PCB clip
Footprint 8.08mm
UNC 4-40 thread
Mounting type Plug-side: Inner thread
This text is machine translated.
PCB mounting: Spacer and PCB clip
Footprint 8.08mm
UNC 4-40 thread
Mounting type Plug-side: Inner thread
This text is machine translated.
Hints
Supplied with loose adapter threaded bolt with UNC4-40 thread
