MPE Garry Pin strip (standard) 087-1-040-0-T-XS0 1 pc(s) Piece
Packaging type
Piece
Product type
Pin strip (standard)
Connection
Soldering
Nominal current
3 A
Nominal current - rounded value
3 A
Datasheet (PDF)
Part number:
Item no:
Highlights & Details

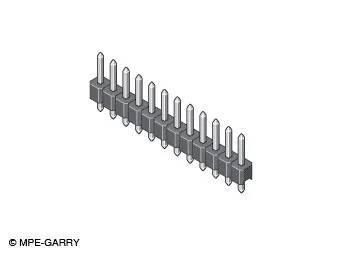

HQ multi-pin connectors straight, RM2,54
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Product type
Pin strip (standard)
- Connection
Soldering
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Tin plated
- Separable
Yes
- Dim
(W x H x D) 101.6 x 11.5 x 2.5 mm
- Manufacturer part #
087-1-040-0-T-XS0
- Content
1 pc(s)
- Width
101.6 mm
- Height
11.5 mm
- RoHS-compliant
Yes
- Type
087-1-040-0-T-XS0
- Depth
2.5 mm
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735576 MPE Garry Pin strip (standard) 087-1-040-0-T-XS0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735576 MPE Garry Pin strip (standard) 087-1-040-0-T-XS0 1 pc(s) Piece
Description
Design: Tin-plated, selectively gold-plated or gold-plated
can be broken off as required
This text is machine translated.
can be broken off as required
This text is machine translated.
