Name: MPE Garry Pin strip (standard) 087-1-050-0-F-XS0-1260 1 pc(s) Piece
Brand: MPE Garry
SKU: 3735356

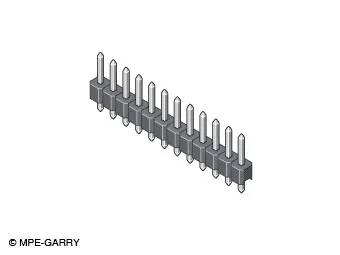

'Image of a row of metallic pin connectors on a black plastic base, commonly used for electronic circuit boards.'

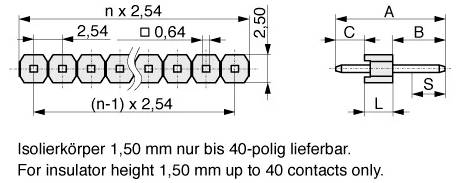

'Mechanical drawing of a pin header, showing dimensions in millimeters. Includes a note: For insulator height 1.50 mm up to 40 contacts only.'

1/2

Packaging type

Piece

Product type

Pin strip (standard)

Nominal current

3 A

Nominal current - rounded value

3 A

Separable

Yes

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

HQ multi-pin connectors straight, RM2,54

Content 1 pc(s)

Our service for you

Technical specifications

Soldibility 260 °C / 10 s
Dielectric strength 500 V RMS

Packaging type: Piece

Product type: Pin strip (standard)

Nominal current: 3 A

Nominal current - rounded value: 3 A

Separable: Yes

Dim: (W x H x D) 127.0 x 12.6 x 2.5 mm

Manufacturer part #: 087-1-050-0-F-XS0-1260

Content: 1 pc(s)

Width: 127.0 mm

Height: 12.6 mm

RoHS-compliant: Yes

Type: 087-1-050-0-F-XS0-1260

Depth: 2.5 mm

Operating temperature (max.): 105 °C

Operating temperature (min.): -40 °C

Documents & Downloads

Datasheet

Datasheet 3735356 MPE Garry Pin strip (standard) 087-1-050-0-F-XS0-1260 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3735356 MPE Garry Pin strip (standard) 087-1-050-0-F-XS0-1260 1 pc(s) Piece

Description

Design: Tin-plated, selectively gold-plated or gold-plated
can be broken off as required
High-quality multi-pin connectors

This text is machine translated.

Description

Design: Tin-plated, selectively gold-plated or gold-plated
can be broken off as required
High-quality multi-pin connectors
