MPE Garry Pin strip (standard) 088-1-050-0-S-XS0-1080 1 pc(s) Piece
Packaging type
Piece
Product type
Pin strip (standard)
Nominal current
3 A
Nominal current - rounded value
3 A
Separable
Yes
Datasheet (PDF)
Part number:
Item no:
Highlights & Details

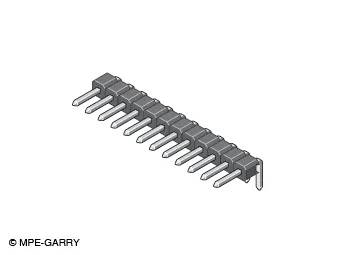

HQ multi-pin connector angled RM2,54
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Product type
Pin strip (standard)
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Separable
Yes

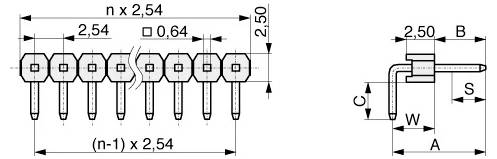

- Dim
(W x H x D) 127.0 x 5.8 x 10.8 mm
- Manufacturer part #
088-1-050-0-S-XS0-1080
- Content
1 pc(s)
- Width
127.0 mm
- Height
5.8 mm
- RoHS-compliant
Yes
- Type
088-1-050-0-S-XS0-1080
- Depth
10.8 mm
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735359 MPE Garry Pin strip (standard) 088-1-050-0-S-XS0-1080 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735359 MPE Garry Pin strip (standard) 088-1-050-0-S-XS0-1080 1 pc(s) Piece
Description
Design: Tin-plated, selectively gold-plated or gold-plated
can be broken off as required
High-quality multi-pin connectors
This text is machine translated.
can be broken off as required
High-quality multi-pin connectors
This text is machine translated.
