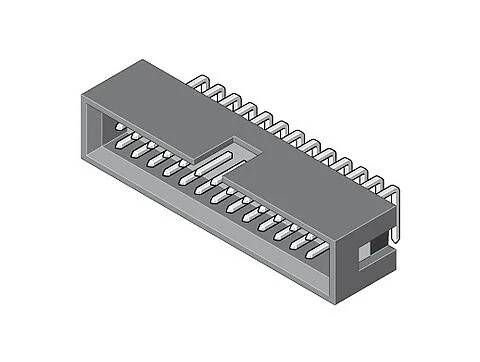

MPE Garry Pin strip (standard) 093-2-026-0-F-BS0 1 pc(s)
Product type
Pin strip (standard)
Nominal current
3 A
Nominal current - rounded value
3 A
Dim
(W x H x D) 30.5 x 9.0 x 14.02 mm
Manufacturer part #
093-2-026-0-F-BS0
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Angled header, pitch 2.54s
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- Dielectric strength 500 V RMS
- Product type
Pin strip (standard)
- Nominal current
3 A
- Nominal current - rounded value
3 A

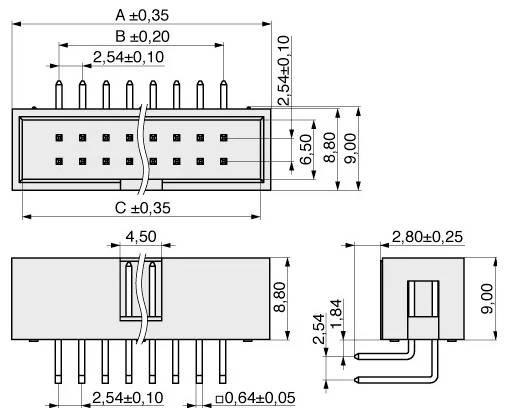

- Dim
(W x H x D) 30.5 x 9.0 x 14.02 mm
- Manufacturer part #
093-2-026-0-F-BS0
- Content
1 pc(s)
- Width
30.5 mm
- Height
9.0 mm
- RoHS-compliant
Yes
- Type
093-2-026-0-F-BS0
- Depth
14.02 mm
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735460 MPE Garry Pin strip (standard) 093-2-026-0-F-BS0 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3735460 MPE Garry Pin strip (standard) 093-2-026-0-F-BS0 1 pc(s)
Description
For SC_R and PFL series pole connectors (see note)
