1/3

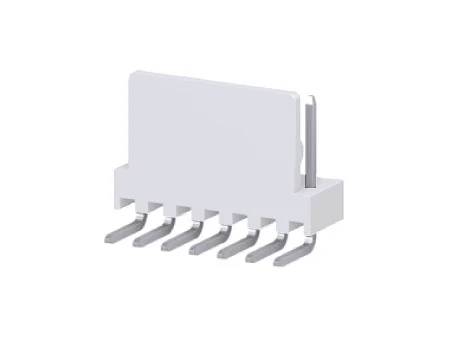

MPE Garry Pin strip (standard) 428-2-002-0-T-KS0 1 pc(s) Piece
Packaging type
Piece
Product type
Pin strip (standard)
Connection
Soldering
Nominal current
3 A
Nominal current - rounded value
3 A
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Nylon crimp connector 2.54mm
- Content 1 pc(s)
Our service for you
Technical specifications

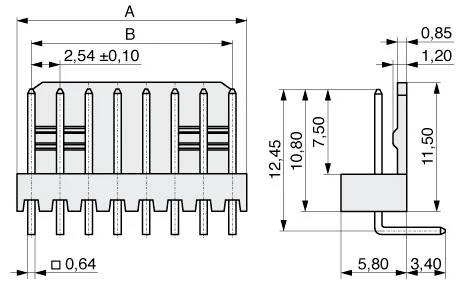

- Height (incl. pins): 12.15 mm
- Width (including pins): 9.2 mm
- Soldibility 240 °C / 5 s
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Product type
Pin strip (standard)
- Connection
Soldering
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Dim
(L x W x H) 5.1 x 9.2 x 12.15 mm
- Manufacturer part #
428-2-002-0-T-KS0
- Content
1 pc(s)
- Width
9.2 mm
- Height
12.15 mm
- Length
5.1 mm
- RoHS-compliant
Yes
- Type
428-2-002-0-T-KS0
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3735515 MPE Garry Pin strip (standard) 428-2-002-0-T-KS0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735515 MPE Garry Pin strip (standard) 428-2-002-0-T-KS0 1 pc(s) Piece
Description
For easily connecting multi-pin connectors
Angled or straight version
This text is machine translated.
Angled or straight version
This text is machine translated.
