MPE Garry Pin strip (standard) 598-3-015M-A00TF-BS0 1 pc(s) Piece
Packaging type
Piece
Product type
Pin strip (standard)
Connection
Solder bucket
Nominal current
3 A
Nominal current - rounded value
3 A
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
HD D-Sub connector strips with solder cup, shielded
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 230 °C / 10 s
- Voltage resistance 500 V / min.
- Packaging type
Piece
- Product type
Pin strip (standard)
- Connection
Solder bucket
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Dim

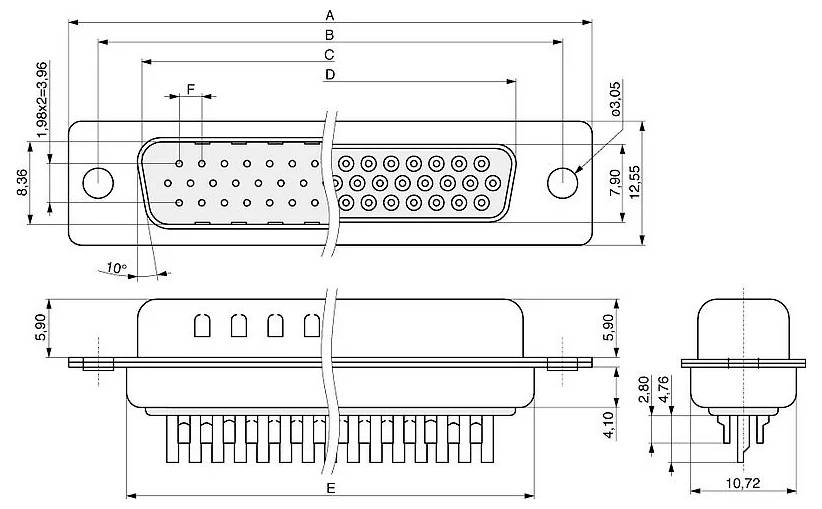

(W x H x D) 30.8 x 10.8 x 12.55 mm
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
598-3-015M-A00TF-BS0
- Content
1 pc(s)
- Width
30.8 mm
- Height
10.8 mm
- RoHS-compliant
Yes
- Type
598-3-015M-A00TF-BS0
- Depth
12.55 mm
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3735445 MPE Garry Pin strip (standard) 598-3-015M-A00TF-BS0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735445 MPE Garry Pin strip (standard) 598-3-015M-A00TF-BS0 1 pc(s) Piece
Description

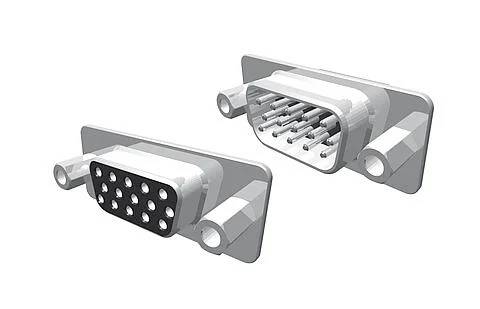

D-Sub high-density connector strip with solder cup
For vertical PCB mounting
This text is machine translated.
For vertical PCB mounting
