Name: MPE Garry SIL socket (precision) 115-1-010-0-MTF-XS0 1 pc(s) Piece
Brand: MPE Garry
SKU: 3735382

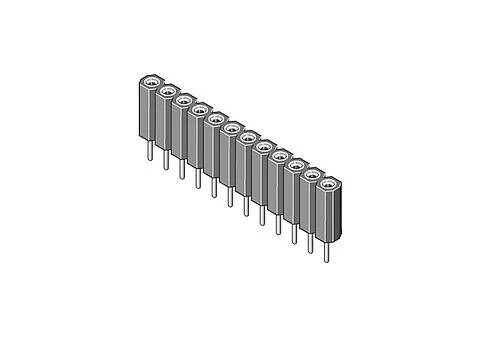

A row of gray, cylindrical connectors with pins extending downward, likely part of an electronic or electrical component assembly.

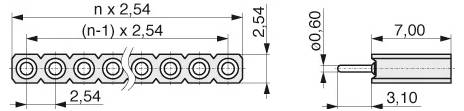

'Technical diagram of a connector with 2.54 mm spacing. Front view shows spaced circular pins; side view shows a pin extending 7 mm, with a 3.10 mm gap.'

1/2

Packaging type

Piece

Connector type

Power strip

Product type

SIL socket (precision)

Connection

Soldering

Nominal current

3 A

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Precision socket strips H=6.9 mm straight

Content 1 pc(s)

Our service for you

Technical specifications

Soldibility 260 °C / 10 s
can be plugged with 0.64 mm
Dielectric strength 500 V RMS

Packaging type: Piece

Connector type: Power strip

Product type: SIL socket (precision)

Connection: Soldering

Nominal current: 3 A

Nominal current - rounded value: 3 A

Contact surface: Gold plated

Contact material: Beryllium / copper

Pin Ø: 0.64 mm

Dim: (W x H x D) 25.4 x 10.1 x 2.54 mm

Manufacturer part #: 115-1-010-0-MTF-XS0

Content: 1 pc(s)

Width: 25.4 mm

Height: 10.1 mm

RoHS-compliant: Yes

Type: 115-1-010-0-MTF-XS0

Depth: 2.54 mm

Operating temperature (max.): 125 °C

Operating temperature (min.): -55 °C

Documents & Downloads

Datasheet

Datasheet 3735382 MPE Garry SIL socket (precision) 115-1-010-0-MTF-XS0 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3735382 MPE Garry SIL socket (precision) 115-1-010-0-MTF-XS0 1 pc(s) Piece

Description

Precision socket connector
With 6 finger clip made from beryllium-copper
gold-plated

This text is machine translated.

Description

Precision socket connector
With 6 finger clip made from beryllium-copper
gold-plated

This text is machine translated.
