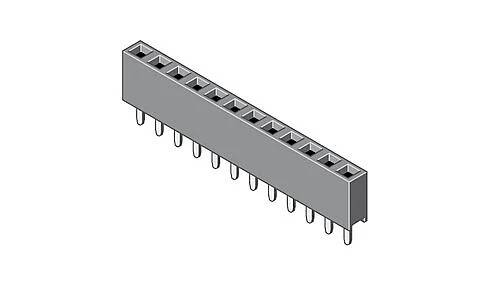

MPE Garry SIL socket (standard) 094-1-010-0-NSX-YS0 1 pc(s) Piece
Packaging type
Piece
Connector type
Power strip
Product type
SIL socket (standard)
Pin shape
Square
Connection
0.64 mm jack connector
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Socket strips H=8.5mm 1-row straight R
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- can be plugged with 0.64 mm
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Connector type
Power strip
- Product type
SIL socket (standard)
- Connection
0.64 mm jack connector
- Pin shape
Square
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Partially gold plated

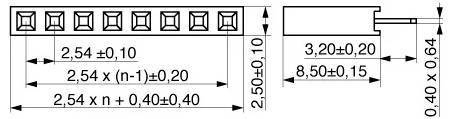

- Dim
(W x H x D) 25.8 x 11.7 x 2.5 mm
- Manufacturer part #
094-1-010-0-NSX-YS0
- Content
1 pc(s)
- Width
25.8 mm
- Height
11.7 mm
- RoHS-compliant
Yes
- Type
094-1-010-0-NSX-YS0
- Depth
2.5 mm
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735374 MPE Garry SIL socket (standard) 094-1-010-0-NSX-YS0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735374 MPE Garry SIL socket (standard) 094-1-010-0-NSX-YS0 1 pc(s) Piece
Description
In pure tin-plated and selectively gold-plated format
Suitable for square pins 0.64x0.64 mm
This text is machine translated.
Suitable for square pins 0.64x0.64 mm
