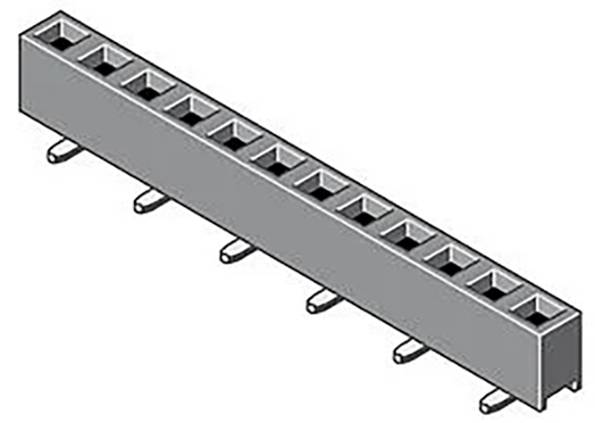

MPE Garry SIL socket (standard) 098-1-003-0-NFX-YT0 1 pc(s) Piece
Packaging type
Piece
Connector type
Power strip
Product type
SIL socket (standard)
Pin shape
Square
Connection
Push-fit + Soldering
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SMD-socket term. Strip H=3.7 to 7.45mm STR
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- can be plugged with 0.64 mm
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Connector type
Power strip
- Product type
SIL socket (standard)
- Connection
Push-fit + Soldering
- Pin shape
Square
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold plated

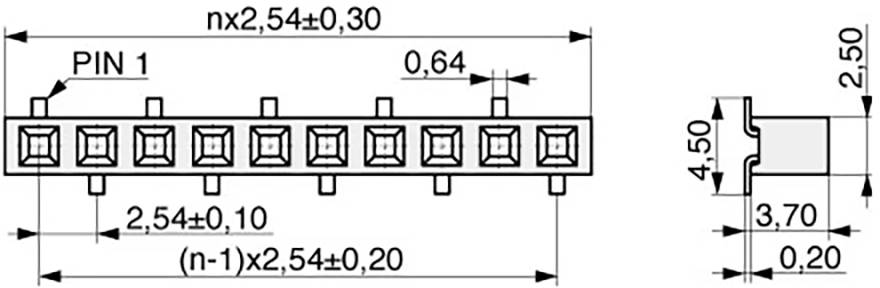

- Dim
(W x H x D) 7.9 x 3.8 x 4.66 mm
- Manufacturer part #
098-1-003-0-NFX-YT0
- Content
1 pc(s)
- Width
7.9 mm
- Height
3.8 mm
- RoHS-compliant
Yes
- Type
098-1-003-0-NFX-YT0
- Depth
4.66 mm
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735272 MPE Garry SIL socket (standard) 098-1-003-0-NFX-YT0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735272 MPE Garry SIL socket (standard) 098-1-003-0-NFX-YT0 1 pc(s) Piece
Description
Flash gold-plated
Insulator made of high temp. Thermoplastic (UL94V-0)
Suitable for square pins 0.64x0.64 mm
This text is machine translated.
Insulator made of high temp. Thermoplastic (UL94V-0)
Suitable for square pins 0.64x0.64 mm
