MPE Garry SIL socket (standard) 122-3-008-0-MTF-XS0 1 pc(s) Piece
Packaging type
Piece
Connector type
Power strip
Product type
SIL socket (standard)
CS
2.54 mm
Pin shape
Square
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Series 122 SMD socket strip
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- can be plugged with 0.64 mm
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Connector type
Power strip
- Product type
SIL socket (standard)
- CS
2.54 mm
- Connection
Soldering
- Pin shape
Square
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Case material
Thermoplastic
- Pin Ø
0.64 mm
- Dim
(W x H x D) 10.2 x 8.6 x 6.9 mm
- Manufacturer part #
122-3-008-0-MTF-XS0
- Content
1 pc(s)
- Width
10.2 mm
- Height
8.6 mm
- RoHS-compliant
Yes
- Type
122-3-008-0-MTF-XS0
- Depth
6.9 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3735285 MPE Garry SIL socket (standard) 122-3-008-0-MTF-XS0 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735285 MPE Garry SIL socket (standard) 122-3-008-0-MTF-XS0 1 pc(s) Piece
Description

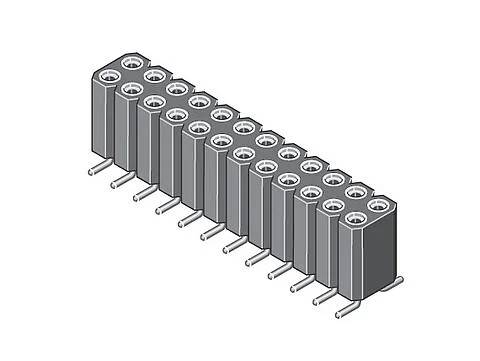

SMD baseboard in 2.54mm grid
With turned contacts
Insulator made of high temp. Thermoplastic (UL94V-0)
Suitable for square pins 0.64x0.64 mm
This text is machine translated.
With turned contacts
Insulator made of high temp. Thermoplastic (UL94V-0)
Suitable for square pins 0.64x0.64 mm
