Name: MPE Garry SIL socket (standard) 156-1-020-0-NFX-YS0 1 pc(s) Piece
Brand: MPE Garry
SKU: 3735471

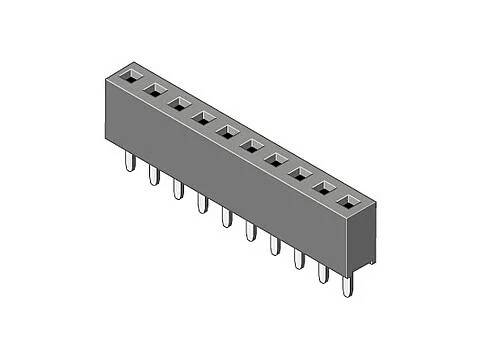

A 10-pin female header connector with a rectangular shape and vertical pins, used for connecting circuits on an electronic board.

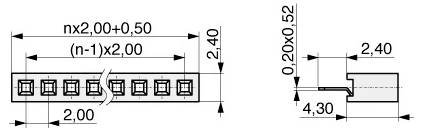

Technical drawing of a connector layout showing dimensions. The front view details spacing of contacts, each 2.00mm apart, total width based on number of contacts. Side view shows 4.30mm length, contact thickness 0.20mm, and spacing 0.52mm above base.

1/2

Packaging type

Piece

Connector type

Power strip

Product type

SIL socket (standard)

Total number of pins

Pin shape

Square

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Socket term. Strip 1-row straight RM2,00

Content 1 pc(s)

Our service for you

Technical specifications

Soldibility 260 °C / 10 s
can be plugged with 0.5 mm
Dielectric strength 500 V RMS

Packaging type: Piece

Connector type: Power strip

Product type: SIL socket (standard)

Total number of pins: 20

Connection: Soldering

Factory colour: Black

Pin shape: Square

Contact surface: Gold plated

Contact material: Gold plated

Case material: Plastic

Pin Ø: 0.5 mm

Dim: (W x H x D) 40.5 x 6.7 x 2.4 mm

Manufacturer part #: 156-1-020-0-NFX-YS0

Content: 1 pc(s)

Width: 40.5 mm

Height: 6.7 mm

RoHS-compliant: Yes

Max. temperature: 260 °C

Type: 156-1-020-0-NFX-YS0

Depth: 2.4 mm

Operating temperature (max.): 105 °C

Operating temperature (min.): -40 °C

Documents & Downloads

Datasheet

Datasheet 3735471 MPE Garry SIL socket (standard) 156-1-020-0-NFX-YS0 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3735471 MPE Garry SIL socket (standard) 156-1-020-0-NFX-YS0 1 pc(s) Piece

Description

Gold-plated version
Black insulation
Suitable for square pins 0.5x0.5mm

This text is machine translated.

Description

Gold-plated version
Black insulation
Suitable for square pins 0.5x0.5mm
