MPE Garry SIL socket (standard) 904-1-020-0-NFX-XS0-0-0-0-0A79 1 pc(s) Piece
Packaging type
Piece
Connector type
Power strip
Product type
SIL socket (standard)
Pin shape
Square
Connection
Soldering
Datasheet (PDF)
Part number:
Item no:
Highlights & Details

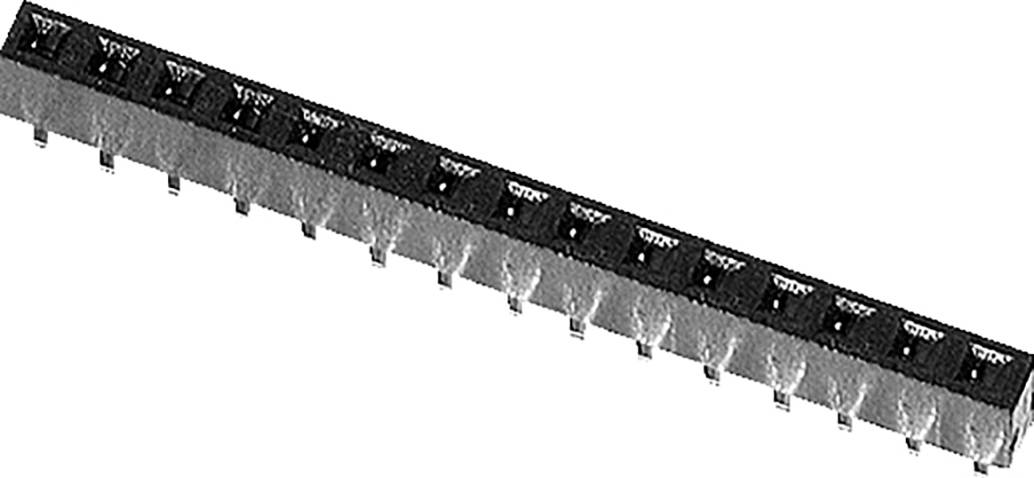

Socket 1R straight 5-pin gold
- Content 1 pc(s)
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- can be plugged with 0.635 mm
- Dielectric strength 500 V RMS
- Packaging type
Piece
- Connector type
Power strip
- Product type
SIL socket (standard)
- Connection
Soldering
- Factory colour
Black
- Pin shape
Square
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact material
Gold
- Case material
Plastic
- Pin Ø
0.635 mm
- Dim
(W x H x D) 50.8 x 8.0 x 2.54 mm
- Manufacturer part #
904-1-020-0-NFX-XS0-0-0-0-0A79
- Content
1 pc(s)
- Width
50.8 mm
- Height
8.0 mm
- RoHS-compliant
Yes
- Type
904-1-020-0-NFX-XS0-0-0-0-0A79
- Depth
2.54 mm
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735415 MPE Garry SIL socket (standard) 904-1-020-0-NFX-XS0-0-0-0-0A79 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3735415 MPE Garry SIL socket (standard) 904-1-020-0-NFX-XS0-0-0-0-0A79 1 pc(s) Piece
Description
Flash gold-plated
Black insulation

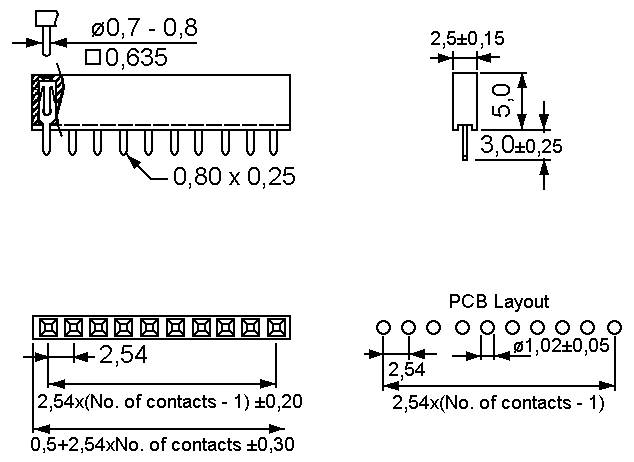

Suitable for square pins 0.635x0.635mm
This text is machine translated.
Black insulation
Suitable for square pins 0.635x0.635mm
