Name: Mueller Electric WI-M-10-50-0 Wire 1 x 5.26 mm² Black 15.2 m
Brand: Mueller Electric
SKU: 3776110
Availability: BackOrder

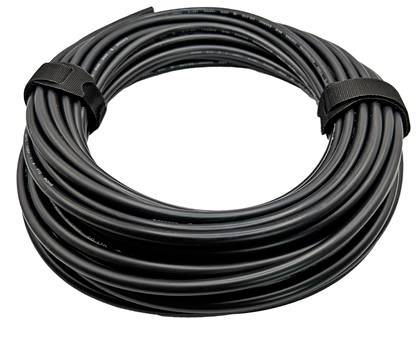

Coiled black cable secured with two straps on a white background.

Product type

Wire

No. of leads

1 x

Cross section (each core)

5.26 mm²

Outside Ø

6 mm

Content

15.2 m

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 13.49)

€ 204.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Highly Flexible Coolflex 45 Silicone Cable - 10 AWG Black (15.2 m)

"Coolflex 45" cable, 10 AWG, 1050/0.08 fine-wired, tin-plated copper wire with a highly flexible silicone sheath of 6 mm (0.236 inch) diameter.
Voltage – 1100 V.
Dielectric strength – 3.2 KV/min.
Spark test – 10 KV
Nominal temperature - -40 °C to 180 °C.
Non flammable - classification FT2

Technical specifications

Pre-assembled coil with 50 feet / approx. 15.24 m.

Product type: Wire

No. of leads: 1 x

Content: 15.2 m

Cross section (each core): 5.26 mm²

Insulation material: Silicone

Cable features: highly flexible
Heat-resistant

Outside Ø: 6 mm

Nominal voltage: 600 V

AWG max.: 10

AWG (min.): 10

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: WI-M-10-50-0

Factory colour: Black

Insulation: Silicone

Core layout: 1-wire, flexibly stranded

Core layout: ca. 1050 bis 1064 x 0,08 mm Einzeldrähte

Material (details): Copper, tin-plated (conductor material)

Sold per metre: No

Nominal voltage U0: 600 V

Nominal current: 45 A

Certification marks: UL 3640 / UL 758

Cross section: 1 x 5.26 mm²

Max. temperature range (flexible installation): 180 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (fixed installation): 180 °C

Min. temperature range (fixed installation): -40 °C

Type: WI-M-10-50-0

Standards: FT2 (flame test)
UL recognized

Variants(All information include VAT, plus shipping costs)

Content

Cross section (each core)

Outside Ø

Cable features

Mueller Electric WI-M-10-50-0 Wire 1 x 5.26 mm² Black 15.2 m

Item no:3776110

Available soon

Conrad Electronic

This article

15.2 m

5.26 mm²

6 mm

highly flexible

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 13.49

Mueller Electric WI-M-10-100-0 Wire 1 x 5.26 mm² + 5.26 mm² Black 30.5 m

Item no:3776108

Available soon

Conrad Electronic

30.5 m

5.26 mm²

6 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 385.00^*

1 m = € 12.66

Mueller Electric WI-M-10-100-2 Wire 1 x 5.26 mm² Red 30.4 m

Item no:3776109

Available soon

Conrad Electronic

30.4 m

5.26 mm²

6 mm

Heat-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 335.00^*

1 m = € 11.02

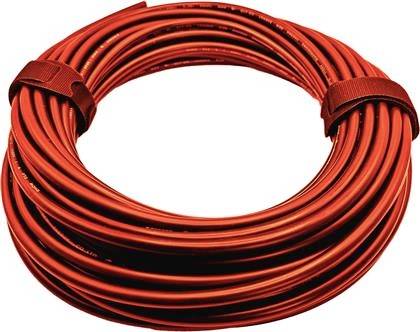

Mueller Electric WI-M-10-50-2 Wire 1 x 5.26 mm² Red 15.24 m

Item no:3776111

Available soon

Conrad Electronic

15.24 m

5.26 mm²

6 mm

Heat-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 13.49

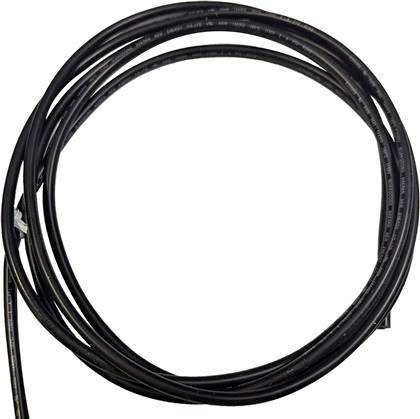

Mueller Electric WI-M-14-10-0 Wire 1 x 5.26 mm² Black 3 m

Item no:3776112

Fast track dispatch on Mon 19 Oct

2 Piece(s)Conrad Electronic

3 m

5.26 mm²

3.7 mm

Heat-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

1 m = € 10.33

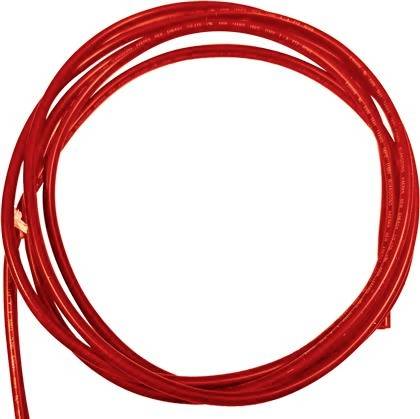

Mueller Electric WI-M-14-10-2 Wire 1 x 2.5 mm² Red 3 m

Item no:3776115

Fast track dispatch on Mon 19 Oct

2 Piece(s)Conrad Electronic

3 m

2.5 mm²

4.7 mm

highly flexible

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 30.99^*

1 m = € 10.33

Mueller Electric WI-M-14-100-0 Wire 1 x 2.08 mm² Black 30.4 m

Item no:3776113

Available soon

Conrad Electronic

30.4 m

2.08 mm²

4.7 mm

highly flexible

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 6.74

Mueller Electric WI-M-14-100-2 Wire 1 x 2.08 mm² Red 30.4 m

Item no:3776114

Available soon

Conrad Electronic

30.4 m

2.08 mm²

4.7 mm

Heat-resistant

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

1 m = € 6.74

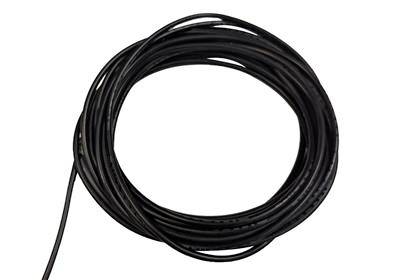

Mueller Electric WI-M-14-25-0 Wire 1 x 2.1 mm² Black 7.6 m

Item no:3776116

Available soon

Conrad Electronic

7.6 m

2.1 mm²

4.7 mm

highly flexible

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

1 m = € 10.26

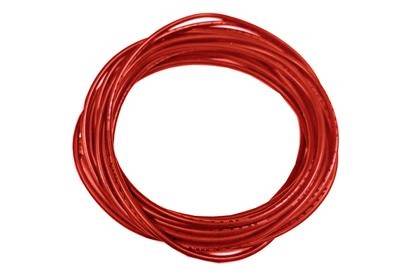

Mueller Electric WI-M-14-25-2 Wire 1 x 2.5 mm² Red 7.6 m

Item no:3776117

Available soon

Conrad Electronic

7.6 m

2.5 mm²

4.7 mm

highly flexible

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

1 m = € 10.26

Documents & Downloads

Datasheet

Datasheet 3776110 Mueller Electric WI-M-10-50-0 Wire 1 x 5.26 mm² Black 15.2 m

User & Safety Instructions

User & Safety Instructions 3776110 Mueller Electric WI-M-10-50-0 Wire 1 x 5.26 mm² Black 15.2 m

Description

Maximum flexibility meets extreme load-carrying capacity: The highly flexible "Coolflex 45" silicone cable offers excellent conductivity and flexibility thanks to its design made of 1050 tin-plated single wires (10 AWG). Protected by a robust, 6 mm thick silicone sheath, this quality cable can withstand extreme temperatures of -40 °C up to +180 °C and easily withstand voltages of up to 1100 V. The flame resistance FT2 classification guarantees highest safety for demanding electronics, modeling or industrial applications. Rely on long-lasting performance, where other cables come to their limits!
