Name: Mueller Electric WI-M-14-50-2 Wire 1 x 2.1 mm² Red 15.2 m
Brand: Mueller Electric
SKU: 3776119
Availability: BackOrder

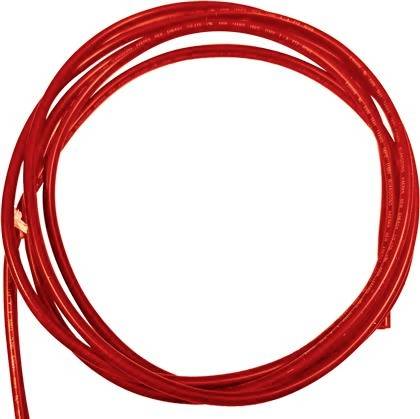

Coiled red electrical cable or wire on a white background.

Product type

Wire

No. of leads

1 x

Cross section (each core)

2.1 mm²

Outside Ø

4.7 mm

Content

15.2 m

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (1 m = € 7.57)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Highly flexible silicone cable (14 AWG) in red – 15.2 m roll for extreme conditions

14 AWG, 420/0.08 mm tin-plated copper wire with a highly flexible silicone sheath of 4.7 mm (0.185") diameter
Voltage: 1100 V
Dielectric strength 3.2 KV/min.
Spark testing (Spark test): 10 KV
Nominal temperature: -40°C to 180°C.
Fire protection class (temperature rating): FT2

Technical specifications

Product type: Wire

No. of leads: 1 x

Content: 15.2 m

Cross section (each core): 2.1 mm²

Insulation material: Silicone

Cable features: highly flexible
Heat-resistant

Outside Ø: 4.7 mm

Nominal voltage: 1100 V

AWG max.: 14

AWG (min.): 14

Packaged: Yes

Halogen-free: Yes

Manufacturer part #: WI-M-14-50-2

Factory colour: Red

Insulation: Silicone rubber

Core layout: Stranded wire

Core layout: 420 x 0,08 mm

Material (details): Tin-plated copper (conductor) / silicone (sleeve)

Sold per metre: No

Nominal voltage U0: 1100 V

Nominal current: 32 A

Certification marks: UL approved

Test voltage: Dielectric strength: 3.2 kV per minute / Spark test: 10 kV

Cross section: 1 x 2.1 mm²

Max. temperature range (flexible installation): 180 °C

Min. temperature range (flexible installation): -40 °C

Max. temperature range (fixed installation): 180 °C

Min. temperature range (fixed installation): -40 °C

Type: WI-M-14-50-2

Standards: FT2 (non-flammable)
RoHS compliant
