Murrelektronik 7000-14561-7940300 M12 Cable 3 m 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable
Connection type
M12
Cable length
3 m
LAN transfer rate
100 MBit/s
No. of A connectors
1 x
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Shielded;without LED
- Type: Plug
- Page 2 Connection: Free cable end
- Screw connection: Zinc die-cast
- Insulating material group: I
- Family design: Open cable ends
- CE 1
- PROTECTION CLASS IP65;IP66K;IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Duplex: Full duplex
- Gender: Male
- Coating contact: Gold-plated
- Material PUR
- Mounting type: Plug-in; screwed; vibration proof
- Mounting thread M12 x 1
- Min. Operating temperature: -30
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- China RoHS e: 1
- Coding: D
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M12
- Usage: Ethernet
- Tightening torque: 0.6
- Thread M12 x 1
- Pollution level 3
- Operating voltage DC max. 60
- Page 1 Cable outlet 90°
- Number of pins: 4
- Contour for corrugated hose: Without
- EtherCAT 1
- Operating current: 0 A … 1.5 A.
- Cable outlet: Angled
- Operating current per contact max. 1.5
- Max. Operating current: 1.5
- CCSAus: 1
- Ethernet/IP 0
- CULus 1
- Operating current min.: 0
- Page 1 Number of poles: 4
- Sales text 2: PUR 1x4xAWG22 shielded GN UL/CSA 3M
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Transfer rate max. 100
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 60 V
- PRODUCT STANDARD: EN IEC 61076-2-101 (M12)
- Stripping length 20:1
- Product type
Cable
- Connection type
M12
- No. of A connectors
1 x
- Type A
M12 plug
- No. of B connections
1 x
- Type B
Open cable ends
- Cable length
3 m
- Connector version
angled
- Cable use
Networks
- Version
Cable
- LAN transfer rate
100 MBit/s
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763975 Murrelektronik 7000-14561-7940300 M12 Cable 3 m 1 pc(s)
Datasheet 3763975 Murrelektronik 7000-14561-7940300 M12 Cable 3 m 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763975 Murrelektronik 7000-14561-7940300 M12 Cable 3 m 1 pc(s)
Description

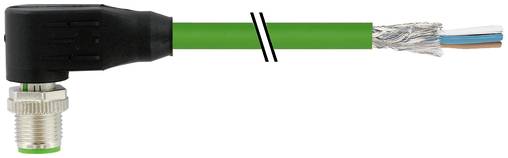

M12 PC. 90° D-coding Free cable-end shielded PUR 1x4xAWG22 shielded GN UL/CSA 3M-M12 PC. 90° D-code. Free cable end shielded-Murrelektronik GmbH
This text is machine translated.
This text is machine translated.
