Neomounts DS90-325BL1 Black
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Neomounts DS90-325BL1 height-adjustable, table-mounted workstation for 17-32" screens, keyboard and mouse - black
Highlights & Details
- Holder type: Height-adjustable, Tiltable, Swivelling, Swivelling, Keyboard traySupports VESA standards up toSuitable for displays sized (range): 43,2 cm (17") - 81,3 cm (32")Load capacity (max.) 9 kg
Technical specifications
- Table mounting: Feed-through, terminal
- Height adjustment 44 - 95 cm
- Adjustable width 52.4 cm
- Depth adjustment 6.8 - 37.4 cm
- Inclination: -/+ 35°
- Swivel range 90 °
- Rotation -/+ 180°
- Adjustment type: Gas spring
- Product type
Monitor desk mount
- Suitable for
43,2 cm (17") - 81,3 cm (32")
- Add-on displays
1 Display(s)
- Holder type
Height-adjustable
Tiltable
Swivelling
Swivelling
Keyboard tray
- Features
Pneumatic
No
- Max. load capacity
9 kg
Yes
75 x 75 mm
100 x 100 mm
- Rotation
360°
- Tilt range (bottom)
35°
- Tilt range (top)
35°
- Swivel range (left)
90°
- Swivel range (right)
90°
- Distance to wall (min.)
159 mm
- Distance to wall (max.)
421 mm
- Width
654 mm
- Height
1180 mm
- Depth
730 mm
- Factory colour
Black
- Material (details)
Steel
- Weight
9.24
- Dim
(W x H x D) 654 x 1180 x 730 mm
- Suitable for
43,2 cm (17")
81,3 cm (32")
- Product type description
Zubehör TFT/LCD-TV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342128 Neomounts DS90-325BL1 Black
Description

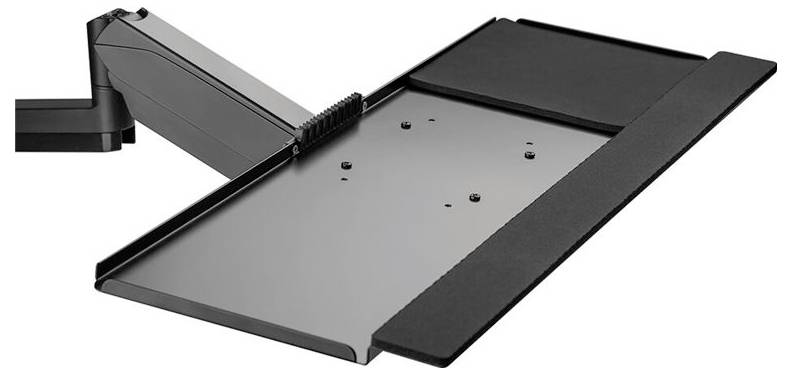

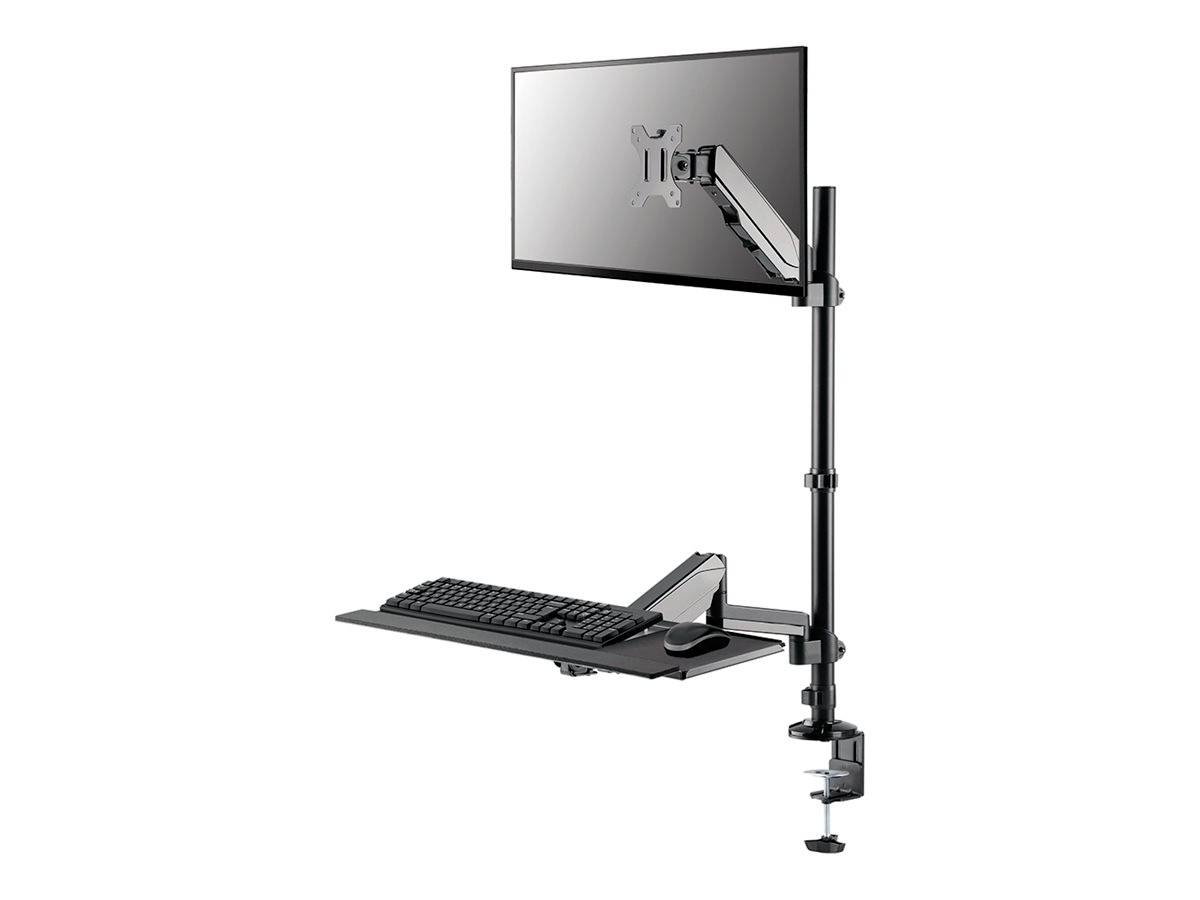

The Neomounts DS90-325BL1 is a fully moving, height-adjustable, table-mounted workstation for screens up to 32", keyboard and mouse. The bracket can support screens weighing up to 9 kg (curved: 6 kg), while the keyboard tray can carry a maximum of 1 kg. Thanks to the versatile tilt (70°), turn (360°) and swivel function (180°), the monitor arm can be brought into any viewing angle, in order to fully utilize the options of the screen. The keyboard tray has a wrist support and a mouse pad for optimal comfort.

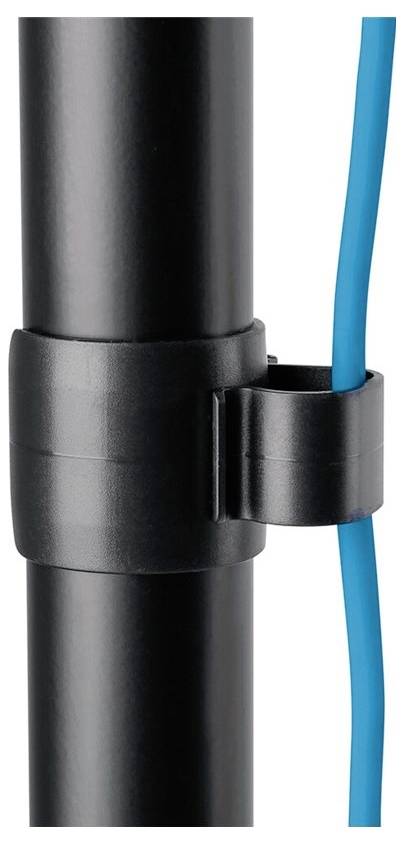

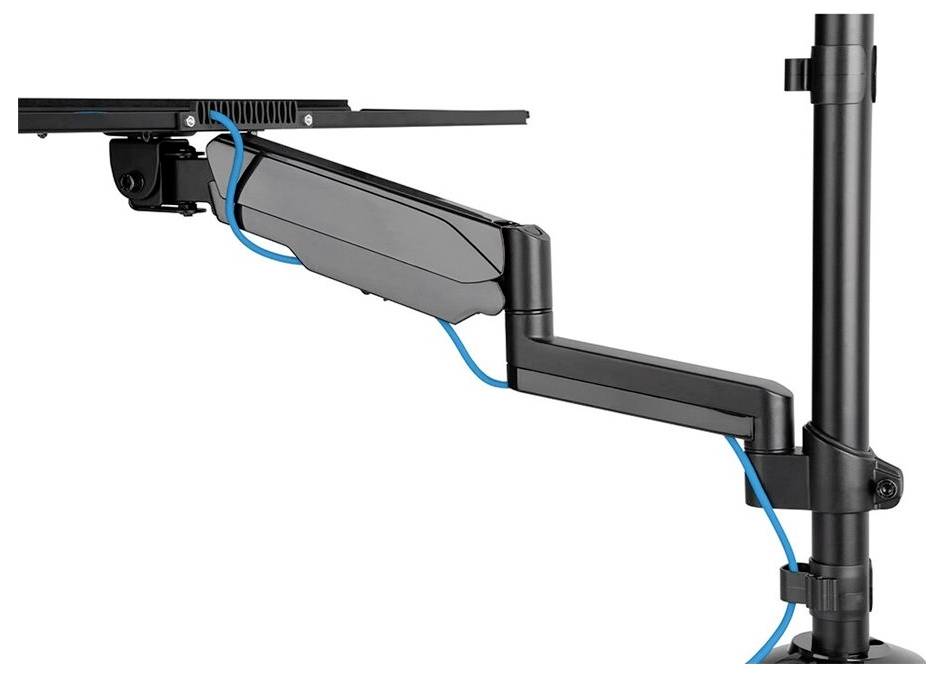

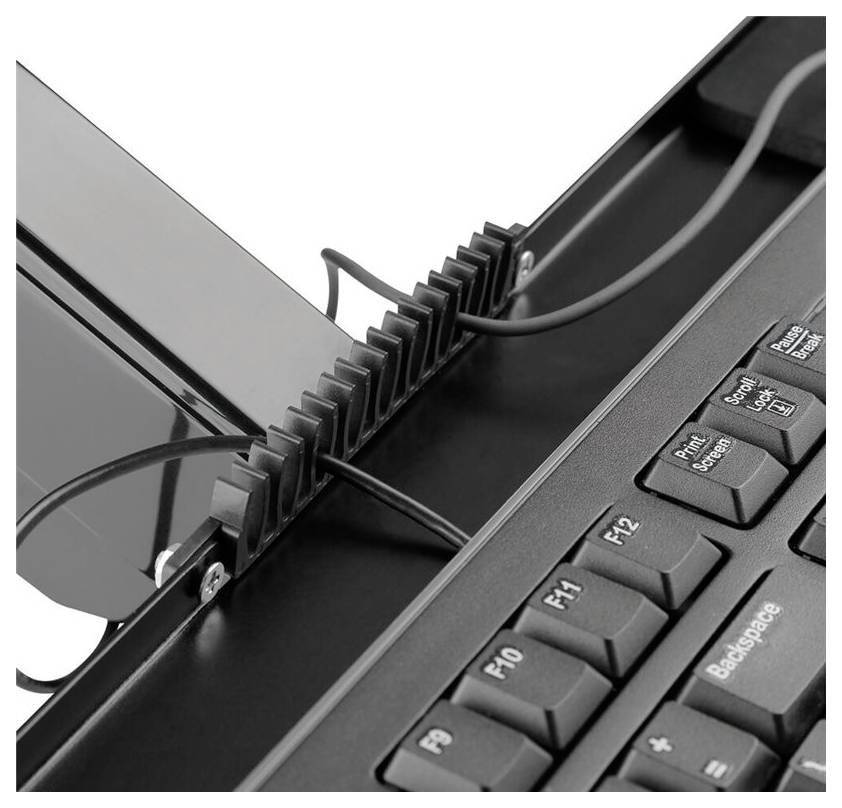

The workstation table top has a large height adjustment range of 44-95 cm and can be used in both sitting and standing positions. To ensure quick repositioning and optimal working position, the DS90-325BL1 has a gas spring height adjustment for both the monitor arm and the keyboard support arm. The intelligent cable management system ensures proper routing of the cables.

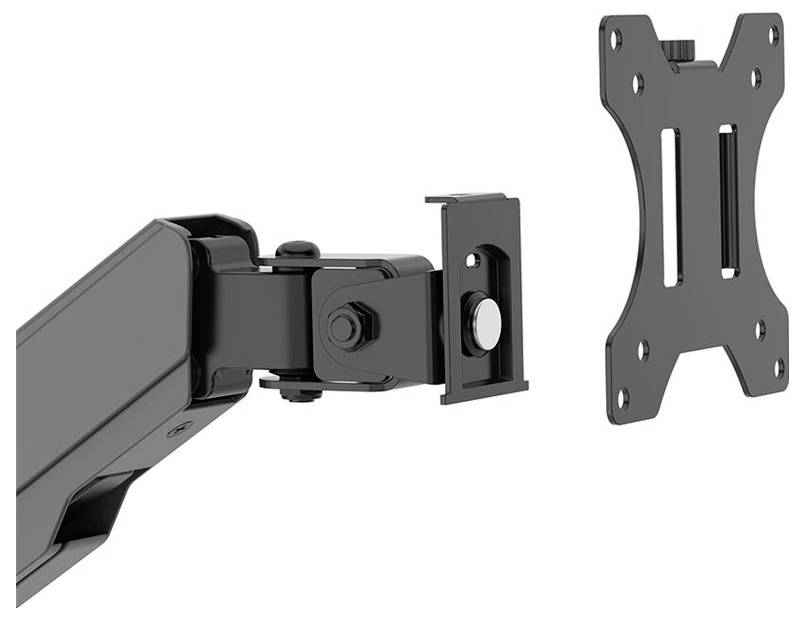

The DS90-325BL1 is suitable for screens that comply with VESA 75x75 or 100x100mm hole patterns and is equipped with a VESA quick release system for quick and easy installation. For non-standard hole patterns, Neomounts offers a range of optional VESA adapter plates.
This text is machine translated.
The workstation table top has a large height adjustment range of 44-95 cm and can be used in both sitting and standing positions. To ensure quick repositioning and optimal working position, the DS90-325BL1 has a gas spring height adjustment for both the monitor arm and the keyboard support arm. The intelligent cable management system ensures proper routing of the cables.
The DS90-325BL1 is suitable for screens that comply with VESA 75x75 or 100x100mm hole patterns and is equipped with a VESA quick release system for quick and easy installation. For non-standard hole patterns, Neomounts offers a range of optional VESA adapter plates.
This text is machine translated.
