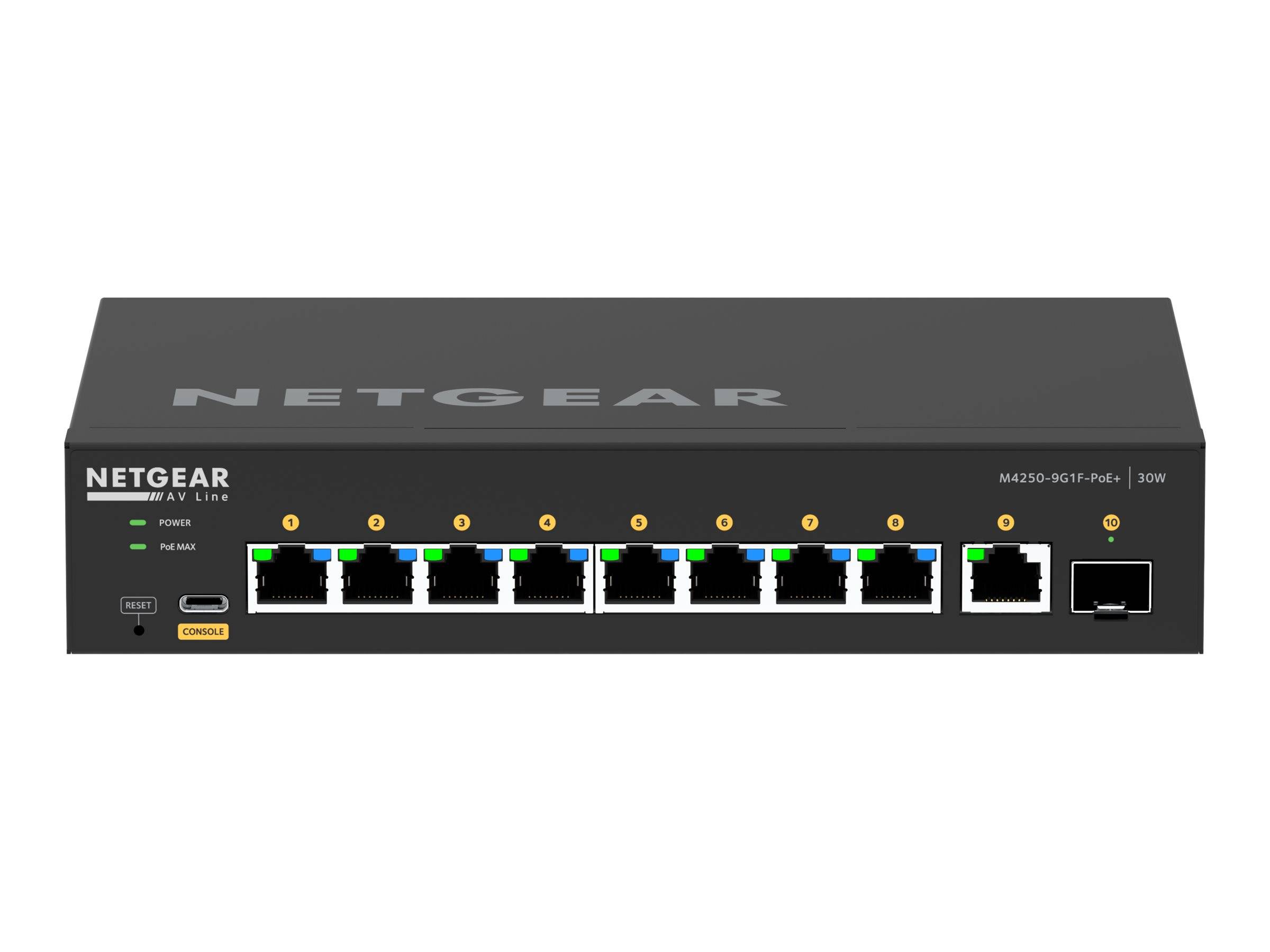

NETGEAR AV line M4250-9G1F-PoE+ - switch - L3 - managed - 8 x 10/100/1000 (8 PoE+)
EAN:
Part number:
Item no:
Highlights & Details
NETGEAR AV line M4250-9G1F-PoE+ - switch - L3 - managed - 8 x 10/100/1000 (8 PoE+)
- + 1 x 10/100/1000 + 1 x Gigabit SFP - Side-to-side airflow - Desktop - PoE+ (110 W)
Technical specifications
- NETGEAR AV line M4250-9G1F-PoE+ - switch – 10 connections – managed
- Device type: Switch – 10 connections – L3 – managed
- Housing Type : side-to-side airflow
- Sub-type : Gigabit Ethernet
- Ports : 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP
- Power over Ethernet (PoE) : PoE+
- PoE budget : 110 W.
- Performance : 20 Gbps switching capacity
- Throughput (64-byte packet size): 14.88 Mpps
- Latency (1 Gbps): < 2.27 µs
- Capacity : VLAN support: 4093
- ARP entries: 4000
- Multicast entries (IPv4): 512
- Multicast entries (IPv6): 128
- Jumbo frame size: Up to 12,000
- IGMP multicast groups: 2000
- MSTP instance: 16
- PVST instances: 32
- Size of the MAC address table : 16,000 entries
- Jumbo Frame Support : 12KB
- Routing Protocol : IGMP, IGMPv2, IGMPv3, MLDv2, static IPv4 routing, static IPv6 routing, RIP, PIM-SM, PIM-DM, PIM-SSM
- Remote Management Protocol : HTTPS, CLI, Telnet, SSH, SNMP, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9, RMON 3, SNMP 1, SNMP 2, SNMP 3
- Features : IGMP support, AVB, PoE timer, MIB support, RSPAN, LLDP-MED, policy-based routing, PTP, STP support, MTP, RSTP, BPDU, CTRL, root guard, GVRP, GMRP, LACP support, DHCP snooping, DAI, IP source monitor, DHCP relay, LLDP support, AAA, sFlow, PIM, MVRP, LACP, LAG, Private VLAN, VLAN support, DHCP server, QoS, DoS attack protection, 16 MB packet buffers, no fans
- Product certifications : IEEE 802.3at, IEEE 802.3af, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1AB (LLDP), IEEE 802.3ad (LACP)
- Dimensions (width x depth x height): 21 cm x 14 cm x 4 cm
- Weight: 965 g
- Localization : Europe
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
8
- IEEE 802.3af PoE
8
- PoE ports
8
- SFP ports
1 x
- 10/100/1000 Mbps ports
9 x
- Fibre-optic ports
1
- Jumbo frames
Yes
- MAC addresses
16000
- Weight
2460 g
- Width
21 cm
- Height
4 cm
- Depth
14 cm
- Type
GSM4210PD-100EUS
- Interfaces
RJ45
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731154 NETGEAR AV line M4250-9G1F-PoE+ - switch - L3 - managed - 8 x 10/100/1000 (8 PoE+)
Description
NETGEAR GSM4210PD-100EUS. Switch type: Managed, switch level: L2/L3. Basic Switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), number of basic switching RJ-45 Ethernet ports: 8. Full duplex MAC address table: 16000 entries, routing/switching capacity: 24 Gb/s. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1AB, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE Power over Ethernet (PoE) Rack mounting
This text is machine translated.
This text is machine translated.
Features
- NETGEAR AV Line M4250-9G1F-PoE+ switch – 10 connections – managed – can be mounted on rack
- Device type: Switch – 10 connections – L3 – managed
- Enclosure Type : side-to-side airflow mountable to rack
- Sub-type : Gigabit Ethernet
- Ports : 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP
- Power over Ethernet (PoE) : PoE+
- PoE budget : 110 W.
- Performance : 20 Gbps switching capacity
- Throughput (64-byte packet size): 14.88 Mpps
- Latency (1 Gbps): Capacity : VLAN support: 4093
- ARP entries: 4000
- Multicast entries (IPv4): 512
- Multicast entries (IPv6): 128
- Jumbo frame size: Up to 12,000
- IGMP multicast groups: 2000
- MSTP instance: 16
- PVST instances: 32
- Size of the MAC address table : 16,000 entries
- Jumbo Frame Support : 12KB
- Routing Protocol : IGMP, IGMPv2, IGMPv3, MLDv2, static IPv4 routing, static IPv6 routing, RIP, PIM-SM, PIM-DM, PIM-SSM
- Remote Management Protocol : HTTPS, CLI, Telnet, SSH, SNMP, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9, RMON 3, SNMP 1, SNMP 2, SNMP 3
- Features : IGMP support, AVB, PoE timer, MIB support, RSPAN, LLDP-MED, policy-based routing, PTP, STP support, MTP, RSTP, BPDU, CTRL, root guard, GVRP, GMRP, LACP support, DHCP snooping, DAI, IP source monitor, DHCP relay, LLDP support, AAA, sFlow, PIM, MVRP, LACP, LAG, Private VLAN, VLAN support, DHCP server, QoS, DoS attack protection, 16 MB packet buffers, no fans
- Product certifications : IEEE 802.3at, IEEE 802.3af, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1AB (LLDP), IEEE 802.3ad (LACP)
- Dimensions (width x depth x height): 21 cm x 14 cm x 4 cm
- Weight: 965 g
- Localization : Europe
