Name: NETGEAR GS728TXP-300EUS GS728TXP Network RJ45/SFP+ switch 24 ports PoE
Brand: NETGEAR
SKU: 3773434

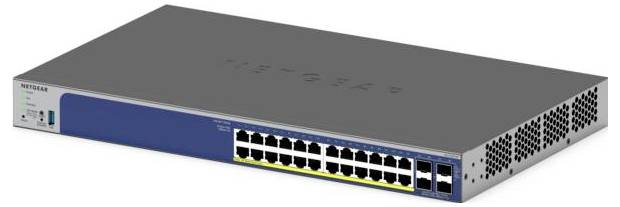

Rack-mounted NETGEAR network switch with 24 Ethernet ports and 2 uplink ports, shown in angled front view.

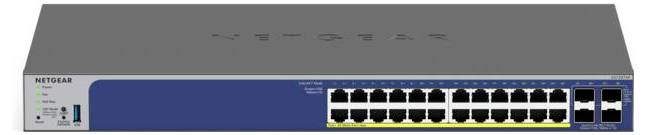

Front view of a NETGEAR network switch with 24 Ethernet ports and two uplink ports, shown with status lights on the left.

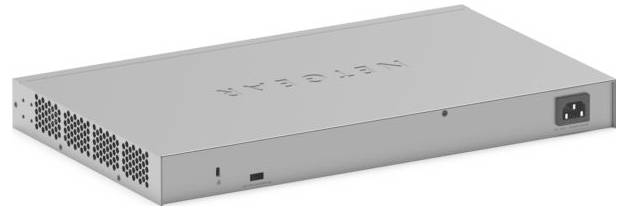

Silver rectangular network device or server appliance with ventilation holes and power inlet on the front-right side, shown in perspective on a white background.

Silver rackmount Network device labeled 'NORTEL' with front power input, status light, and side cooling fans on a white background

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR GS728TXP L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE), black

24 PoE+ ports and 4 SFP+ ports for versatile connectivity options
128 Gbps bandwidth and 95.24 Mpps forwarding rate for efficient data processing
Supports advanced Layer 3 Lite functions for efficient network routing
Robust security features including RADIUS, TACACS+, and TLS encryption
Energy-efficient Ethernet (EEE) for lower power consumption

Technical specifications

Product type: Network RJ45/SFP+ switch

Working principle: Managed switch

IEEE 802.3af PoE: 24

SFP+ ports: 4 x

10/100/1000 Mbps ports: 24 x

Jumbo frames: Yes

Router features: PoE

MAC addresses: 16000

Weight: 3.8 kg

Width: 440 mm

Height: 43.2 mm

Depth: 257 mm

Type: GS728TXP

Factory colour: Black

Port: 24 ports

Max. operating noise: 26.8 dB

Power consumption (ON): 748.18 W

CPU speed: 800 MHz

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 16 MB

Number of static routes: 32

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 3000 m

SFP+ module slots quantity: 4

Flow control support: yes

Power over Ethernet (PoE): yes

MAC address filtering: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Broadcast storm control: yes

Static route: yes

Access Control List (ACL) ingress: 100

Access Control List (ACL): yes

Rate limiting: yes

Manual: yes

Rack mounting: yes

Mean time between failures (MTBF): 1252990 h

Full duplex: yes

Flash memory: 64 MB

MAC address table: 16000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Number of VLANs: 256

Spanning tree protocol: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Built-in processor: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773434 NETGEAR GS728TXP-300EUS GS728TXP Network RJ45/SFP+ switch 24 ports PoE

Description

The NETGEAR Smart GS728TXP switch was developed to meet the requirements of modern networks and offers extended functions and robust security. With 24 PoE+ ports and 4 SFP+ ports, it offers versatile connectivity options for a variety of devices. The switch supports a bandwidth of 128 Gbit/s and a transfer rate of 95.24 Mpps, WAS ensures efficient data processing and minimum latency. Advanced Layer 3 Lite features enable efficient routing and network management. Security is important: Support for RADIUS and TACACS+ authentication as well as TLS 1.2 and TLS 1.3 encryption ensure secure access and data transmission. In addition, the GS728TXP with a MTBF of 1,252,990 hours and two fans designed for cooling to long life, WAS makes it a reliable choice for each network.
