Name: NETGEAR GS728TXUP-300EUS GS728TXUP Network RJ45/SFP+ switch PoE
Brand: NETGEAR
SKU: 3773439

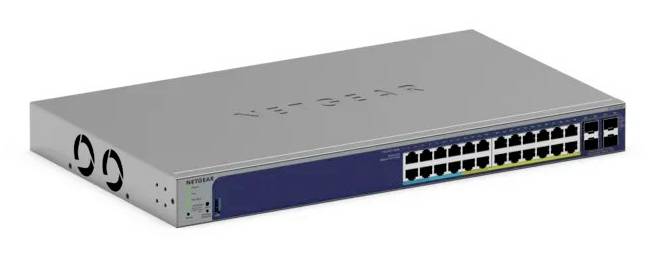

Front view of a 24-port Ethernet network switch with status lights and side ventilation ports on a white background

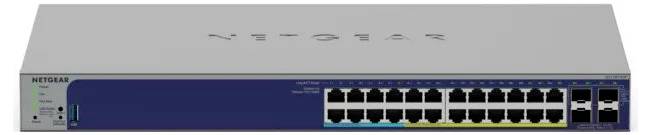

Front view of a NETGEAR Ethernet switch with 24 RJ45 ports and 4 SFP ports on a gray and blue rackmount unit.

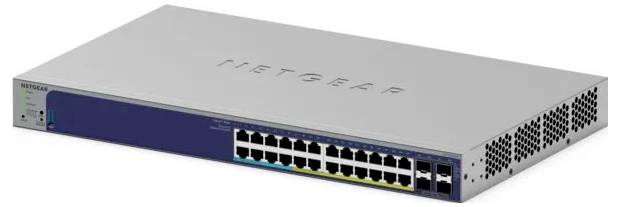

Netgear network switch with 24 Ethernet ports on the front and a silver metal chassis, shown angled on a white background.

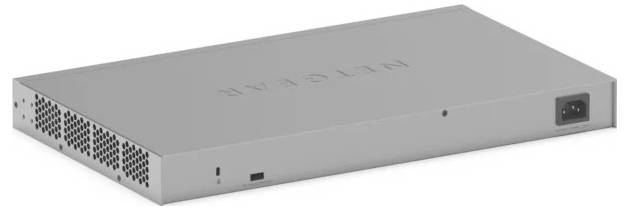

Silver NETGEAR network appliance or switch shown in a three-quarter view, with ventilation grilles and power inlet on the rear right.

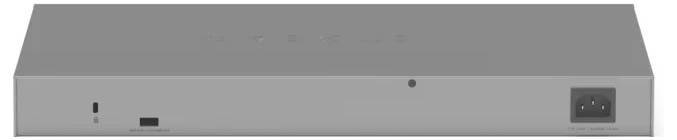

Silver rectangular electronic device front panel with a small power button, one port, and a power inlet on the right.

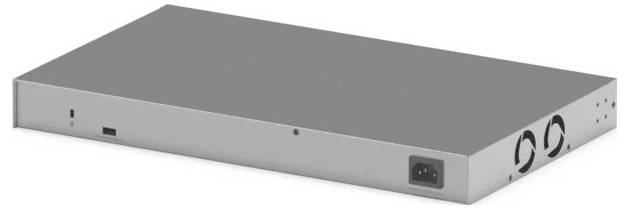

Silver metal rackmount server chassis with front power inlet and cooling fans on the right side.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR GS728TXUP managed gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U gray

Supports 24 10/100/1000 PoE++ ports and 4 10 Gigabit SFP+ ports
VLAN support enables effective network segmentation
Layer 3 Lite features improve routing efficiency
User-friendly management options simplify network management
Designed for operation in a variety of environments with high temperature and humidity tolerances

Technical specifications

Form factor: 1U
Number of fans: 2 fans
Power source AC / PoE

Product type: Network RJ45/SFP+ switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Working principle: Managed switch

IEEE 802.3af PoE: 24

SFP+ ports: 4 x

10/100/1000 Mbps ports: 24 x

Jumbo frames: Yes

Router features: PoE

MAC addresses: 16000

Weight: 3.86 kg

Width: 440 mm

Height: 43 mm

Depth: 316 mm

Type: GS728TXUP

Factory colour: Grey

Max. operating noise: 30.5 dB

UKCA: yes

Power over Ethernet plus (PoE+) ports quantity: 16

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 420 W

Packet buffer memory: 1.5 MB

Switching capacity: 128 Gbit/s

Jumbo frames: 10000

SFP+ module slots quantity: 4

Power over Ethernet (PoE): yes

Jumbo frames support: yes

Store-and-forward: yes

Cloud-managed: yes

Power over Ethernet 4PPoE (PoE++) ports quantity: 4

Rack mounting: yes

Mean time between failures (MTBF): 286168 h

MAC address table: 16000 Eintragungen

Number of VLANs: 256

VLAN support: yes

10G support: yes

Forwarding rate: 95.24 Mpps

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773439 NETGEAR GS728TXUP-300EUS GS728TXUP Network RJ45/SFP+ switch PoE

Description

The NETGEAR Smart GS728TXUP offers network solutions that have been developed for better performance and efficiency. With support for 24 10/100/1000 PoE++ ports and 4 10 Gigabit SFP+ ports, this switch is designed to effectively manage significant network traffic. It offers VLAN-support, IGMP-Snooping and several mechanisms for storm control, which ensure a smooth data transmission and at the same time prevent an overload. The Layer 3 Lite functions enable efficient forwarding and management of data packets, making this switch suitable for different network requirements.
The GS728TXUP is designed for desktop and rack use, ensuring flexible deployment. Its management options, including SNMP and CLI management, simplify administration, while the dual firmware images and the cloud backup function provide a reliable operating environment. With extensive environmental tolerances, including operating temperatures from 0°C to 50°C and humidity range from 0 to 90% relative humidity, this switch operates under various conditions to ensure network reliability in various environments.

This text is machine translated.
