Name: NETGEAR GS748PP-100EUS GS748PP Network RJ45 switch 48 ports 96 GBit/s PoE
Brand: NETGEAR
SKU: 3773450

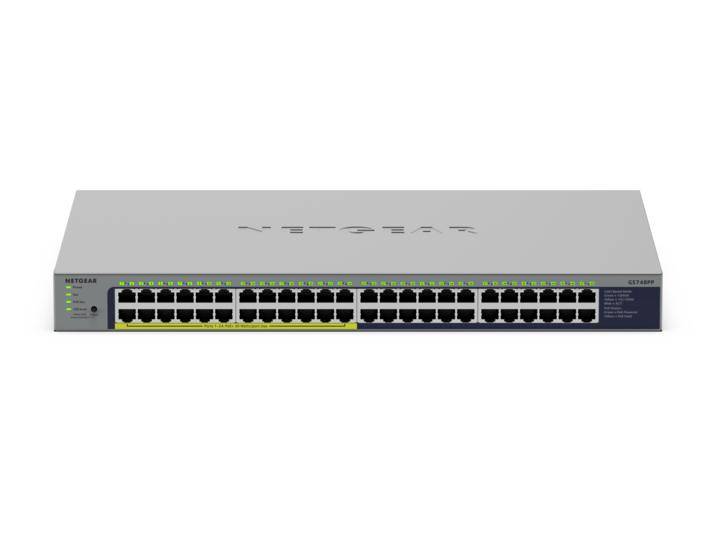

Front view of a Netgear rack-mount network switch with 48 Ethernet ports and status LEDs across the front panel.<br>

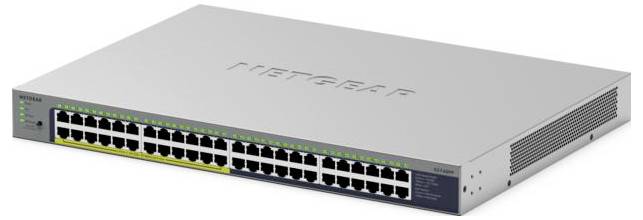

Front view of a NETGEAR rackmount Ethernet switch with 48 ports and status lights, shown on a white background.

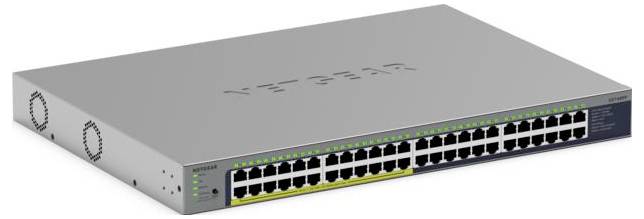

Rackmount Ethernet switch with 48 front-panel ports, status LEDs, and ventilation holes, shown in angled view on a white background.

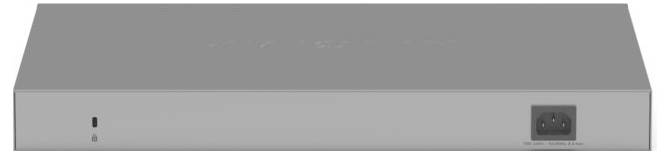

Front view of a gray rectangular electronic device or power supply with a small status light on the left and a power input socket on the right.

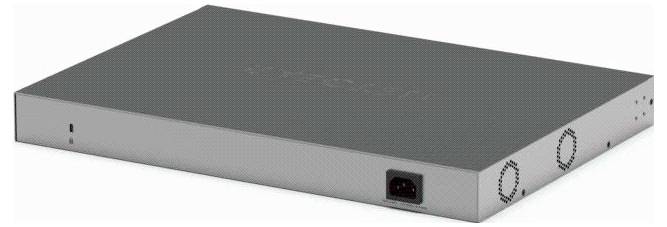

Flat silver electronic device shown in perspective, with a vented front panel, front port, and rackmount-style chassis on a white background

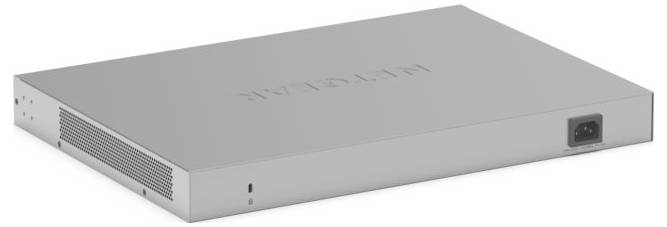

A silver rack-mounted network appliance with ventilation grilles, a power inlet on the back, and the word 'WIKEM' on the top panel.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR GS748PP unmanaged gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) gray

It supports 48 ports with PoE+ functionality
Power budget of 380 W for efficient device supply
Functions for improved network performance
Robust metal casing for long durability
Bandwidth capacity of 96 Gb/s.

Technical specifications

Number of fans: 2 fans
Energy source AC / DC

Product type: Network RJ45 switch

Transfer rate: 96 GBit/s

Working principle: Unmanaged switch

IEEE 802.3af PoE: 24

10/100/1000 Mbps ports: 24 x

Router features: PoE

MAC addresses: 8000

Weight: 4.6 kg

Width: 440 mm

Height: 43 mm

Depth: 310 mm

Type: GS748PP

Factory colour: Grey

Port: 48 ports

Transfer rate (max.): 1 GBit/s

Power supply (details): 100 - 240 V

Transfer type: Corded

UKCA: yes

Redundant fans support: yes

Operating temperature (T-T): 0 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 380 W

Packet buffer memory: 1.5 MB

Heat dissipation: 34.2 BTU/h

Jumbo frames: 12.288

Power over Ethernet (PoE) power per port: 30 W

Bandwidth: 96 Gbit/s

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Jumbo frames support: yes

Rack mounting: yes

Mean time between failures (MTBF): 570972 h

Full duplex: yes

MAC address table: 8000 Eintragungen

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -20 - 70 °C

Power consumption (max): 410 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773450 NETGEAR GS748PP-100EUS GS748PP Network RJ45 switch 48 ports 96 GBit/s PoE

Description

The NETGEAR GS748PP is a versatile switch, which has been developed for seamless connectivity and robust performance. With a total of 48 ports, this switch supports PoE+ with a power consumption of 380 W and is therefore suitable for Ideal for efficient power supply of multiple devices. The reliable design includes built-in fans to maintain an optimum operating temperature between 0 °C and 50 °C, which ensures constant power even at high load. The device conforms to various standards and thus ensures compatibility in different environments, while its metal casing provides for durability and robustness.
Equipped with functions such as quality of service (QoS), automatic uplink capabilities and DiffServ code Point (DSCP) support, the GS748PP improves network efficiency and prioritizes the data traffic. The non-blocking architecture supports a bandwidth of 96 Gb/s, making it suitable for data-intensive applications. Power, PoE, and connectivity activity status indicators enable you to monitor at a glance and effectively manage your network infrastructure.

This text is machine translated.
