Name: NETGEAR GS752TXUP-300EUS GS752TXUP Network RJ45/SFP+ switch 176 Gbit/s PoE
Brand: NETGEAR
SKU: 3773440

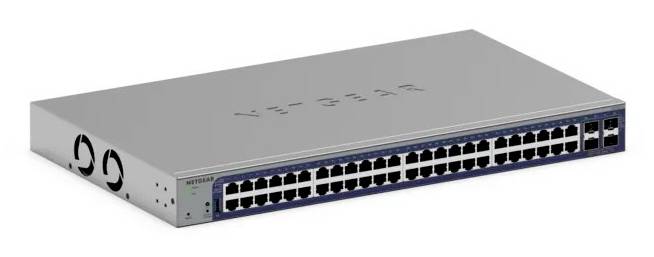

Gray Netgear network switch with 48 Ethernet ports shown in perspective on a white background.

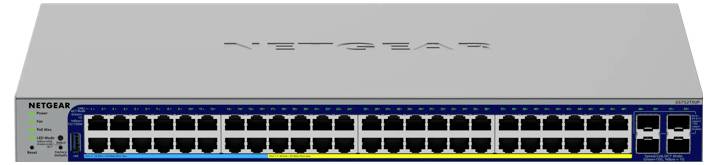

Front view of a NETGEAR network switch with many Ethernet ports, status lights on the left, and uplink ports on the right.

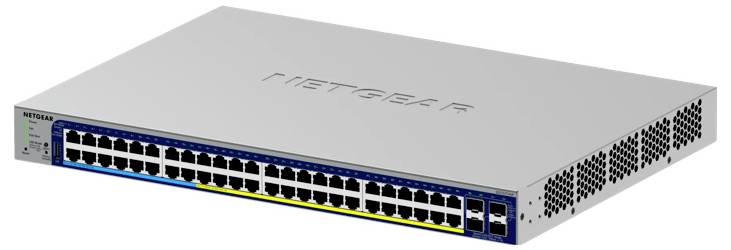

Netgear rackmount network switch with multiple Ethernet ports and status lights on the front panel, shown in silver.

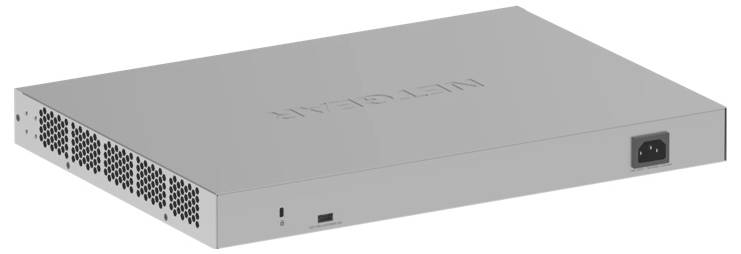

Silver NETGEAR network switch or rackmount device shown in perspective, with ventilation holes, front power connector, and minimalist gray metal housing.

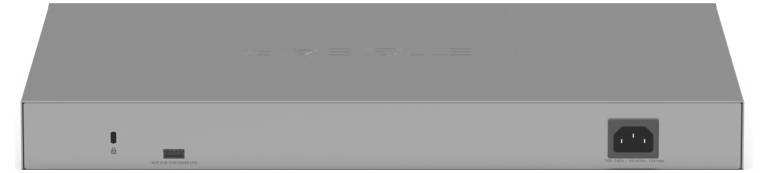

Front view of a silver rectangular electronic device with a power inlet on the right and a small port and indicator on the left.

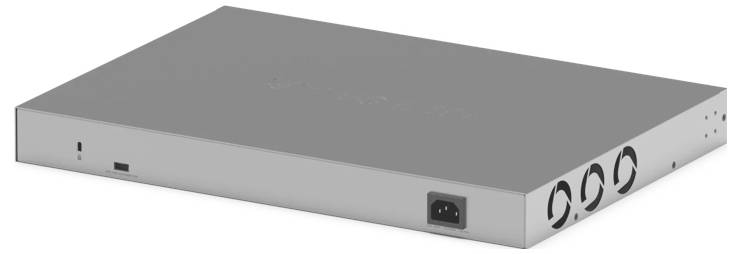

Silver metal computer hardware unit with vent holes, front power connector, and side fan ports on a white background.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR GS752TXUP managed gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U gray

Supports 48 10/100/1000 (PoE++) ports and 4 10 Gigabit SFP+ ports
Comprehensive VLAN support and advanced QoS capabilities for efficient traffic management
Wide temperature range operation for reliable performance
Contains secure management protocols such as RADIUS and TACACS+
Rack-mountable design with energy-efficient operation

Technical specifications

Form factor: 1U
Power source AC / PoE

Product type: Network RJ45/SFP+ switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 176 Gbit/s

Working principle: Managed switch

SFP+ ports: 4 x

10/100/1000 Mbps ports: 48 x

Jumbo frames: Yes

Router features: PoE

MAC addresses: 16000

Weight: 4.79 kg

Width: 440 mm

Height: 43 mm

Depth: 310 mm

Type: GS752TXUP

Factory colour: Grey

Max. operating noise: 37.3 dB

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 32

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 640 W

Packet buffer memory: 1.5 MB

Switching capacity: 176 Gbit/s

SFP+ module slots quantity: 4

Power over Ethernet (PoE): yes

Cloud-managed: yes

Power over Ethernet 4PPoE (PoE++) ports quantity: 16

Rack mounting: yes

Mean time between failures (MTBF): 191643 h

MAC address table: 16000 Eintragungen

Number of VLANs: 256

VLAN support: yes

10G support: yes

Forwarding rate: 130.94 Mpps

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773440 NETGEAR GS752TXUP-300EUS GS752TXUP Network RJ45/SFP+ switch 176 Gbit/s PoE

Description

The NETGEAR Smart GS752TXUP, with its extensive functions and robust architecture, is designed to meet the requirements of modern networks. With up to 48 ports for 10/100/1000 (PoE++) connections and 4 additional 10 gigabit SFP+ ports, this switch is suitable for high-performance environments. The comprehensive VLAN-support, IGMP-snooping and extended QoS functions enable an efficient traffic management and optimization of the network resources. Fitted with a highly developed chip-set and 512 MB DDR SDRAM it ensures a reliable performance in different applications and provides for energy-efficiency through its intelligent design.
This manageable switch works under a variety of environmental conditions, with an operating temperature of 0°C to 50°C and a storage temperature of up to 70°C. The integration of functions such as DHCP snooping, dynamic VLAN support and comprehensive security protocols, including RADIUS and TACACS+, enables a secure network experience. The GS752TXUP also comes with a rack mounting kit, making it suitable for organized setups in a variety of environments, from small businesses to large corporate networks.

This text is machine translated.
