Name: NETGEAR GSM4230PX-100EUS AV Line M4250-26G4XF-PoE+ Network SFP+ switch
Brand: NETGEAR
SKU: 3773463

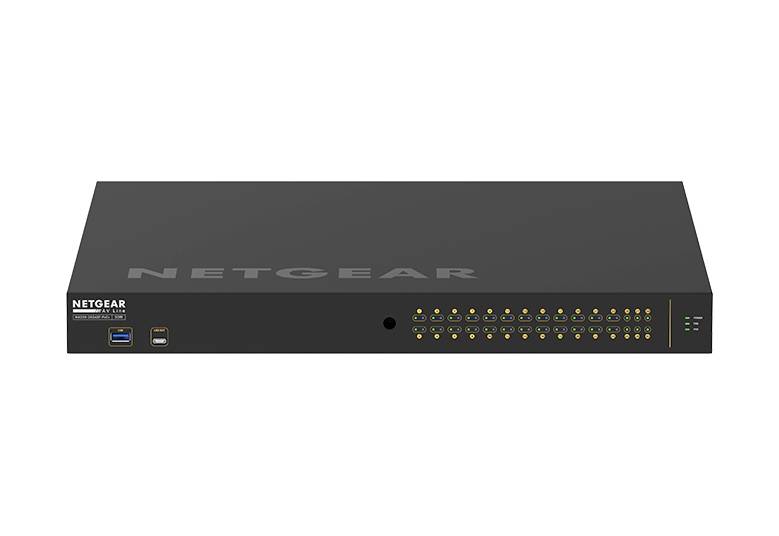

Front view of a NETGEAR rackmount network switch with two USB ports, status LEDs, and many Ethernet ports on a black chassis.

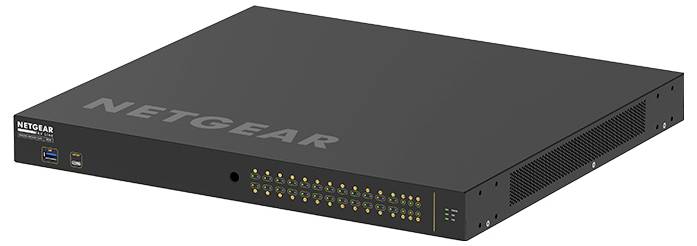

NETGEAR rackmount network switch with multiple Ethernet ports and status LEDs on the front panel.

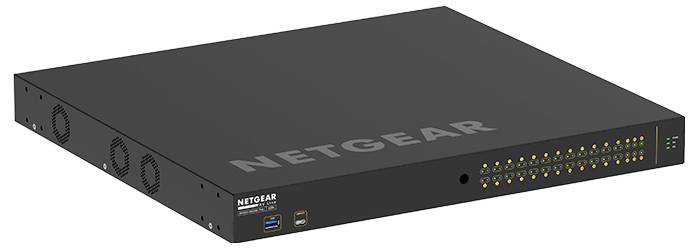

Black NETGEAR network switch with multiple Ethernet ports and status lights on the front panel.

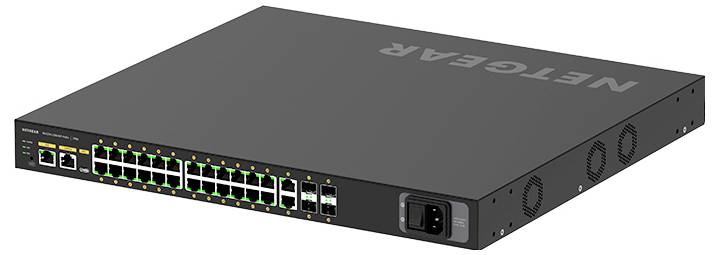

Black NETGEAR network switch angled on a white background, with many Ethernet ports, status lights, cooling vents, and a power inlet.

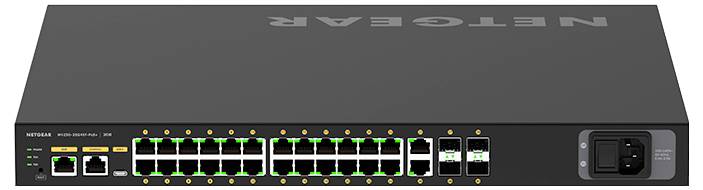

Front view of a NETGEAR network switch with multiple Ethernet ports and status lights, plus a power connector on the right.<br>

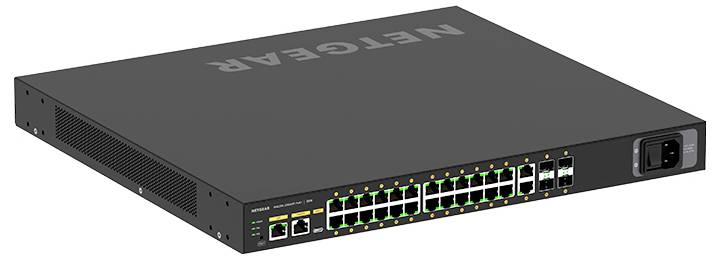

Front view of a NETGEAR rackmount network switch with many Ethernet ports and status lights on a dark gray chassis.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4250-26G4XF-PoE+ managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black

24 PoE+ ports for multi-switch audio and video deployments
24x1G-PoE+ with 480 W PoE power with 2x1G additional ports And 4 x SFP+ 10G fiber uplinks
Fanless mode with max 25ºC Ambient and 45 W PoE possible Loading
Low noise operation 25 dB@25ºC when using all connections and 240 W PoE load
1U 400 mm deep rack mounting with black front display and rear panel connectors
Possible reverse mounting with front panel connections including recessed mounting
Universal rack mounting options with M5 on the floor and front M10 threaded holes
Pre-configured for audio and video over IP

Technical specifications

Form factor: 1U

Product type: Network SFP+ switch

Working principle: Managed switch

IEEE 802.3af PoE: 24

SFP+ ports: 10 x

10/100/1000 Mbps ports: 2 x

Jumbo frames: Yes

MAC addresses: 16000

Weight: 5.45 kg

Width: 440 mm

Height: 400 mm

Depth: 43.2 mm

Type: AV Line M4250-26G4XF-PoE+

Factory colour: Black

No. of USB A 2.0 ports: 1 x

Max. operating noise: 42 dB

Processor/type: ARM Cortex-A57

UKCA: yes

Fanless: yes

Power over Ethernet plus (PoE+) ports quantity: 24

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 16 MB

Latency (1 Gbps): 2.29 µs

Latency (10 Gbps): 0.83 µs

Throughput: 98.21 Mpps

Temperature sensor: yes

Switching capacity: 132 Gbit/s

Rack mount kit: yes

Jumbo frames: 12000

Power over Ethernet (PoE) power per port: 45 W

SFP+ module slots quantity: 4

Power over Ethernet (PoE): yes

Jumbo frames support: yes

IPv4 FIB entries: 256

IPv6 FIB entries: 16

IPv4 routes: 512

IPv6 routes: 128

Rack mounting: yes

MAC address table: 16000 Eintragungen

Number of VLANs: 4

VLAN support: yes

Built-in processor: yes

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773463 NETGEAR GSM4230PX-100EUS AV Line M4250-26G4XF-PoE+ Network SFP+ switch

Description

Switching for 1G AV over IP with PoE+, Ultra90 PoE++ and back-facing ports for clean integration into AV racks. M4250 switches are pre-configured for standard audio and video signals. If there are multiple switches, NETGEAR IGMP Plus provides automation that allows you to easily connect them together.

This text is machine translated.
