Name: NETGEAR GSM4248P-100EUS AV Line M4250-40G8F-PoE+ Network RJ45/SFP switch 96 GBit/s PoE
Brand: NETGEAR
SKU: 3773465

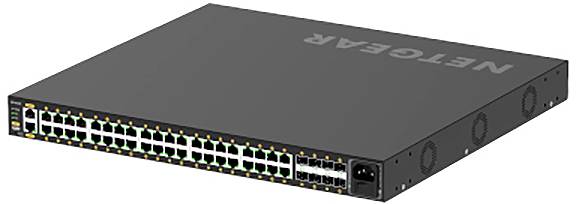

Front view of a Netgear network switch with many Ethernet ports and status lights, shown in a rack-mount metal chassis.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR GSM4248P-100EUS Network Switch Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

40-port PoE+ for multi-switch audio or video deployments
40 x 1 G PoE+ with 480 W PoE-budget and 8 x SFP 1 G glass fiber Uplinks
Fanless mode with max. 25ºC and 30 W PoE power possible
Noise level in quiet mode 30 dB@25ºC when using all connections and 150 W PoE load
1U 400 mm deep rack mounting with black front display and all rear panel connectors
Possible reverse mounting with front panel connections including and recessed mounting
Universal mounting options outside the rack with M5 on the floor and front M10 threaded holes
Pre-configured for audio and video over IP

Technical specifications

Product type: Network RJ45/SFP switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Transfer rate: 96 GBit/s

Working principle: Managed switch

Ethernet ports: 40

SFP ports: 8 x

Jumbo frames: Yes

Router features: PoE

MAC addresses: 16000

Weight: 5.85 kg

Width: 440 mm

Height: 400 mm

Depth: 43.2 mm

Type: AV Line M4250-40G8F-PoE+

Factory colour: Black

UKCA: yes

Power over Ethernet plus (PoE+) ports quantity: 40

Basic switching RJ-45 Ethernet ports quantity: 48

Total Power over Ethernet (PoE) budget: 480 W

Switching capacity: 96 Gbit/s

SFP module slots quantity: 8

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Stackable: yes

Web-based management: yes

Rack mounting: yes

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773465 NETGEAR GSM4248P-100EUS AV Line M4250-40G8F-PoE+ Network RJ45/SFP switch 96 GBit/s PoE

Description

Switching for 1G AV over IP with PoE+, Ultra90 PoE++ and back-facing ports for clean integration into AV racks. M4250 switches are pre-configured for standard audio and video signals. If there are multiple switches, NETGEAR IGMP Plus provides automation that allows you to easily connect them together.

This text is machine translated.
