Name: NETGEAR GSM4248UX-100EUS AV Line M4250-40G8XF-PoE++ Network RJ45/SFP+ switch PoE
Brand: NETGEAR
SKU: 3773466

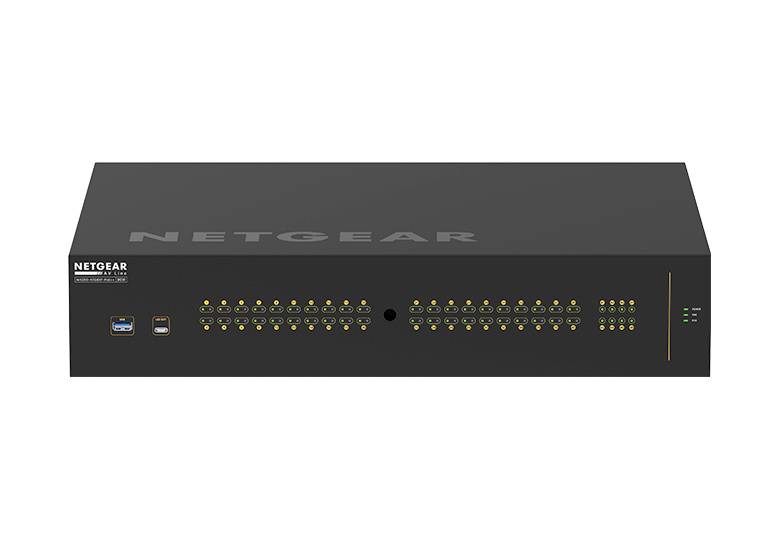

Front view of a NETGEAR rackmount network switch with many Ethernet ports and status LEDs on a plain white background.

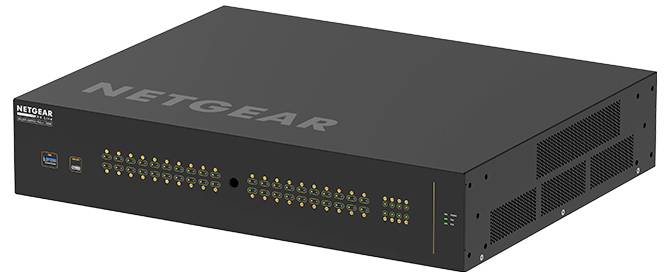

NETGEAR rackmount network switch with many Ethernet ports and front status LEDs, shown in a black server-style chassis.<br>

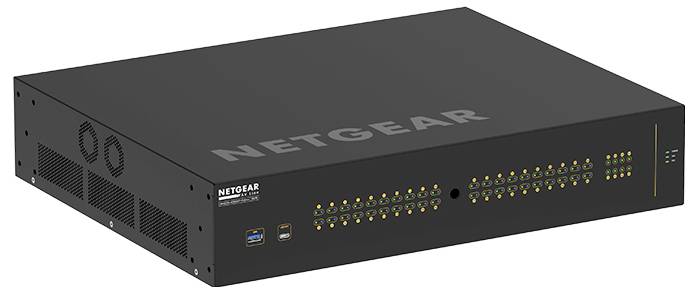

Netgear rackmount network switch with multiple Ethernet ports and status LEDs, shown in a front-left angled product view.

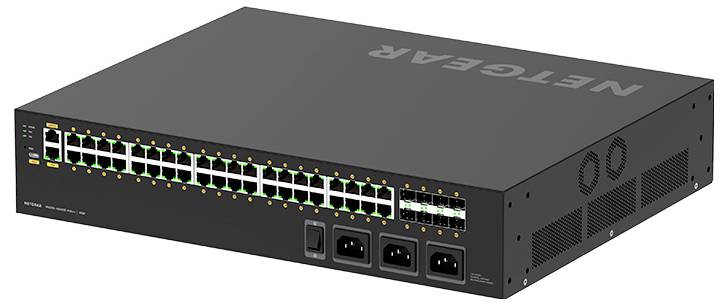

Black NETGEAR network switch with multiple Ethernet ports and status lights, shown in angled product view.

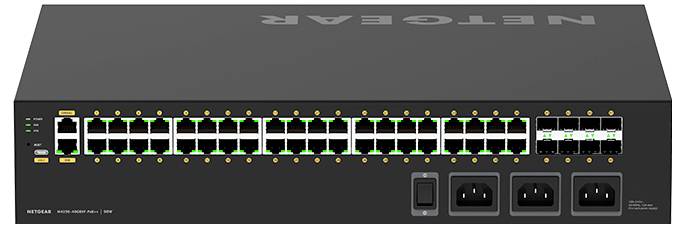

Front view of a NETGEAR network switch with many Ethernet ports, status LEDs, and three power outlets on the right.

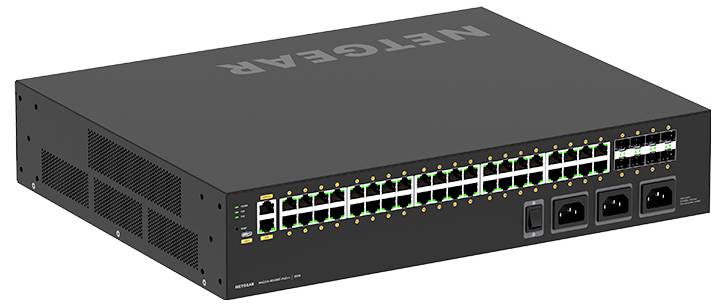

Black NETGEAR network switch with multiple Ethernet ports and front status lights, shown angled on a white background.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4250-40G8XF-PoE+ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U black

PoE++ with 40 ports for multi-switch audio or video deployments
40 x 1 G PoE+ with 2.880 W PoE budget and 8 x SFP+ 10G fiber Uplinks
Noise level in quiet mode 30 dB@25ºC when using all connections and 160 W PoE load
2U 350 mm deep rack mount with black front panel display and rear panel connectors
Possible reverse mounting with front panel connections including recessed mounting
Universal out-of-rack mounting with M5 on the floor and front M10 threaded holes
Pre-configured for audio and video over IP from the field

Technical specifications

Form factor 2U

Product type: Network RJ45/SFP+ switch

LAN transfer rate: 10 MBit/s
100 MBit/s
1000 MBit/s

Working principle: Managed switch

SFP ports: 10 x

No. of 100 Mbps/1Gbps/10Gbps ports: 8 x

10/100/1000 Mbps ports: 40 x

Jumbo frames: Yes

Router features: PoE

MAC addresses: 16000

Weight: 10.3 kg

Width: 440 mm

Height: 350 mm

Depth: 86.4 mm

Type: AV Line M4250-40G8XF-PoE++

Factory colour: Black

No. of USB A 2.0 ports: 1 x

Max. operating noise: 60 dB

Power consumption (ON): 912 W

UKCA: yes

Rack rails: yes

Fanless: yes

Power over Ethernet plus (PoE+) ports quantity: 40

Basic switching RJ-45 Ethernet ports quantity: 40

Total Power over Ethernet (PoE) budget: 2880 W

Latency (1 Gbps): 2.78 µs

Latency (10 Gbps): 0.73 µs

Throughput: 178.56 Mpps

Switching capacity: 240 Gbit/s

Heat dissipation: 3113.57 BTU/h

Rack mount kit: yes

SFP+ module slots quantity: 8

Power over Ethernet (PoE): yes

Jumbo frames support: yes

Rack mounting: yes

MAC address table: 16000 Eintragungen

10G support: yes

User guide: yes

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773466 NETGEAR GSM4248UX-100EUS AV Line M4250-40G8XF-PoE++ Network RJ45/SFP+ switch PoE

Description

Switching for 1G AV over IP with PoE+, Ultra90 PoE++ and back-facing ports for clean integration into AV racks. M4250 switches are pre-configured for standard audio and video signals. If there are multiple switches, NETGEAR IGMP Plus provides automation that allows you to easily connect them together.

This text is machine translated.
