Name: NETGEAR GSM4352PA-100NES M4300-52G-PoE+ Network RJ45/SFP+ switch 176 Gbit/s
Brand: NETGEAR
SKU: 3773459

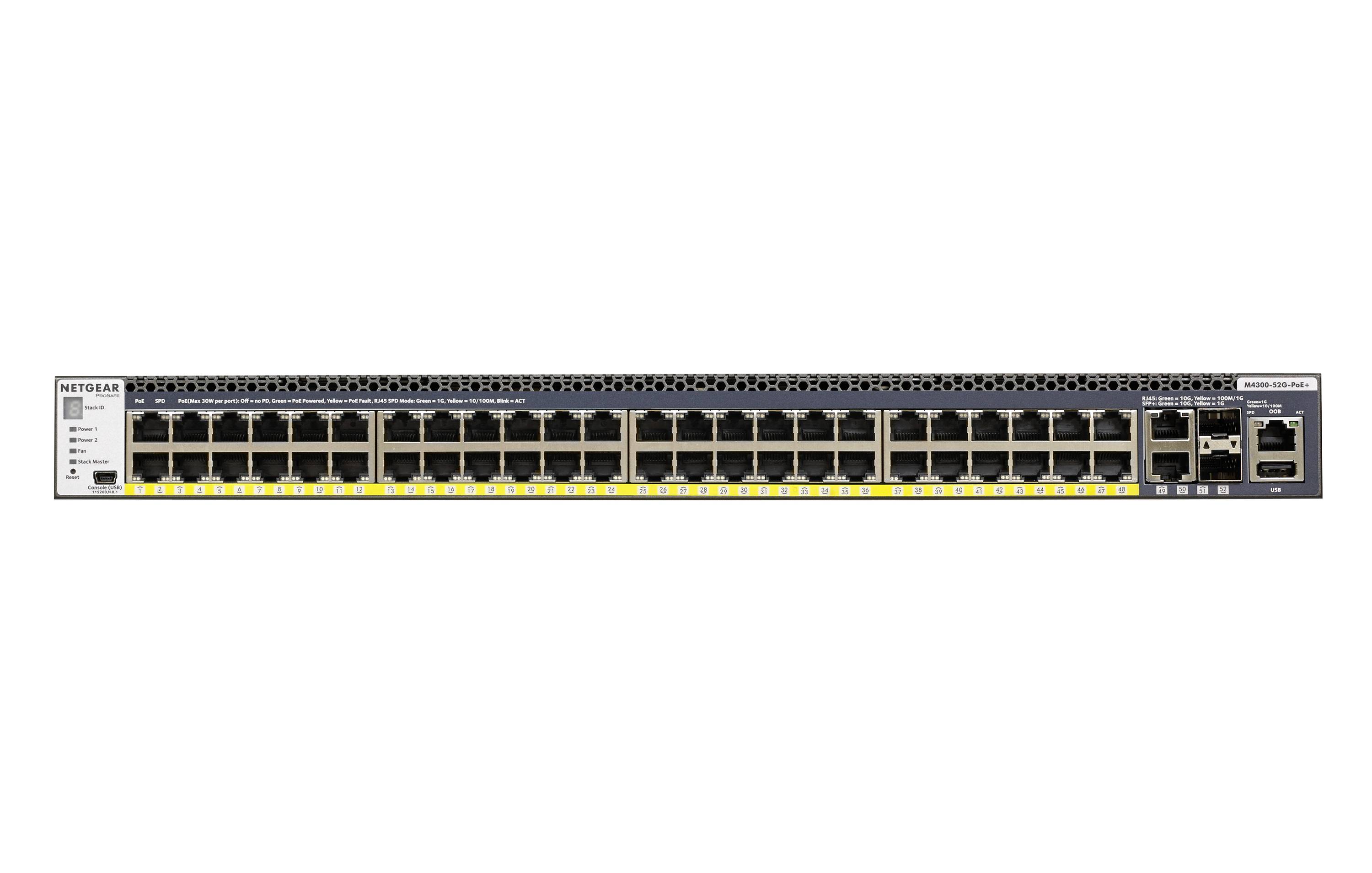

Front view of a NETGEAR rack-mounted Ethernet network switch with many RJ45 ports and a few uplink ports on the right.

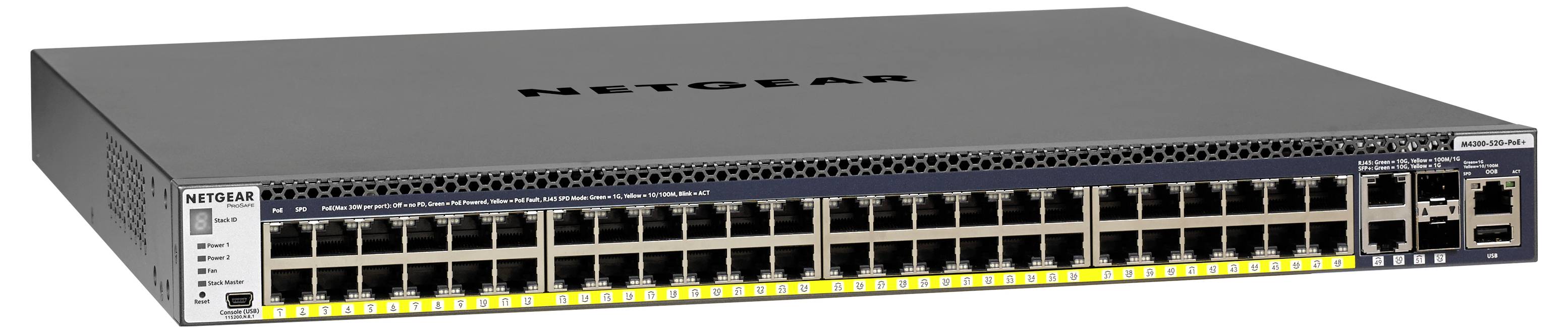

Front view of a NETGEAR network switch with many Ethernet ports and a few uplink ports, showing status lights along the bottom.

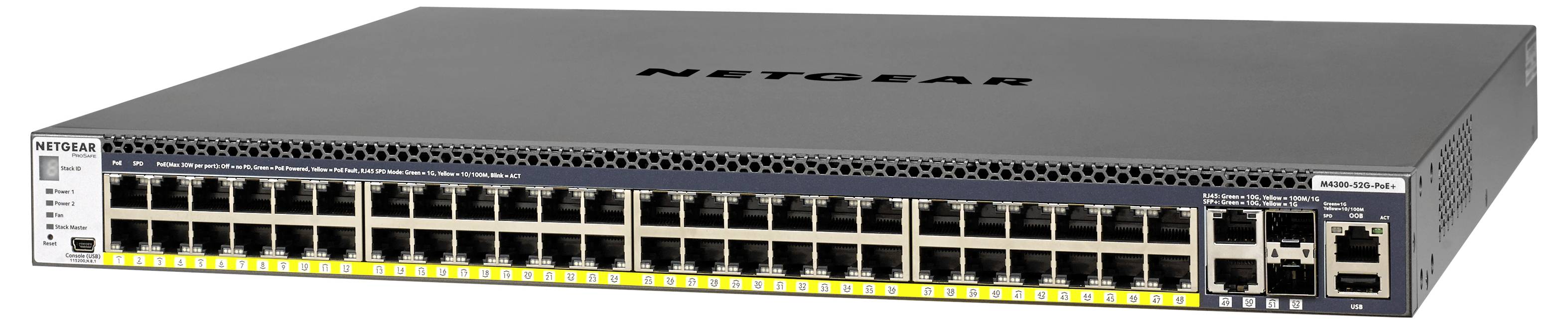

NETGEAR rackmount Ethernet switch with multiple front-panel ports and status LEDs, shown in a silver metal chassis.

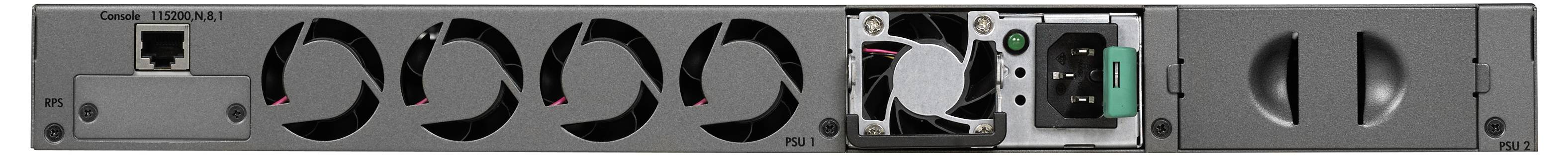

Rear view of a rack-mount server showing cooling fans, power supply, ports, and a network/power connection panel.

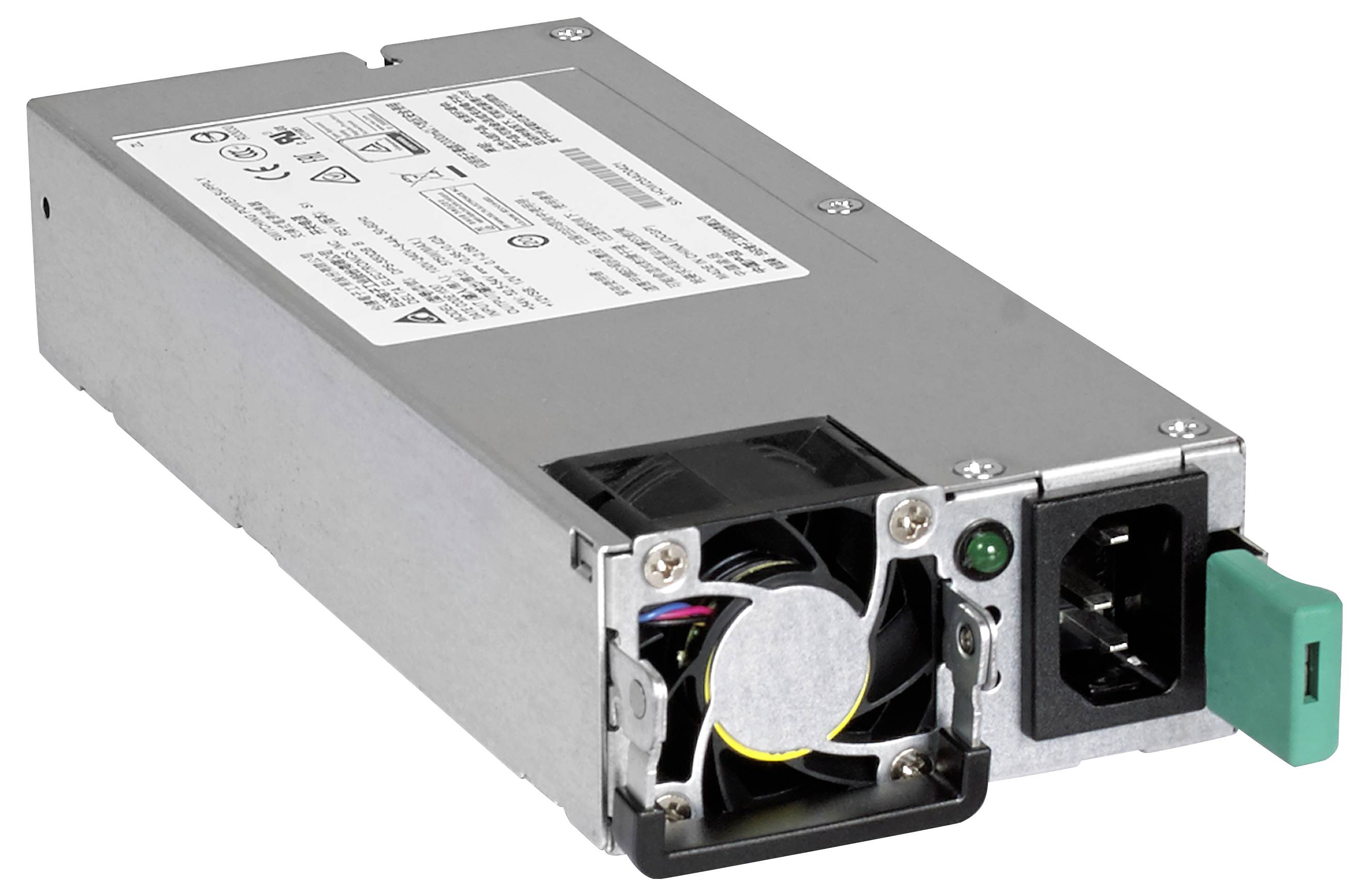

Hot-swappable metal power supply unit with cooling fan, AC power inlet, and green release tab on a white background.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4300-52G-PoE+ 550W PSU managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U black

Low-cost 1G access layer on campus LAN networks and high-performance 10G distribution layer for medium-sized enterprise networks
Advanced Layer 2, Layer 3, and Layer 4 feature set - no license required - including policy-based routing, RIP, VRRP, OSPF, and PIM
Innovative mixed "spin-and-leaf", 1G and 10G stacking with non-stop forwarding and Hitless failover redundancy
Low operating noise
SDN-ready Openflow-1.3 support for maximum investment protection

Pre-contractual information under the EU Data Act

Technical specifications

Optical cable type: SFP+
Form factor: 1U

Product type: Network RJ45/SFP+ switch

Transfer rate: 176 Gbit/s

Working principle: Managed switch

IEEE 802.3af PoE: 48

SFP+ ports: 2 x

10/100/1000 Mbps ports: 2 x

Weight: 6.67 kg

Width: 440 mm

Height: 44 mm

Depth: 388 mm

Type: M4300-52G-PoE+

Factory colour: Black

No. of USB A 2.0 ports: 1 x

Max. operating noise: 39.8 dB

Power supply (details): 110 - 220 V

CPU speed: 800 MHz

: 1024 MB

Safety: HTTPS
SNMP
SSH

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

Power over Ethernet plus (PoE+) ports quantity: 48

Basic switching RJ-45 Ethernet ports quantity: 48

Auto-sensing: yes

Total Power over Ethernet (PoE) budget: 480 W

Packet buffer memory: 16 MB

Number of multicast groups filtered: 4000

Number of static routes: 64

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 3000 m

Auto-negotiation: yes

Switching capacity: 128 Gbit/s

Heat dissipation: 207913 BTU/h

Rack mount kit: yes

BPDU filtering/protection: yes

ARP inspection: yes

Jumbo frames: 9000

Resource CD: yes

Power over Ethernet (PoE) power per port: 30 W

SFP+ module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Redundant power supply (RPS) support: yes

Multicast support: yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

Rate limiting: yes

IP routing: yes

Rack mounting: yes

Mean time between failures (MTBF): 673207 h

Flash memory: 256 MB

Number of power supply units: 1

MAC address table: 16000 Eintragungen

Rubber feet: yes

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4000

Spanning tree protocol: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 90 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 357 Mpps

Built-in processor: yes

User guide: yes

Power consumption (max): 865 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773459 NETGEAR GSM4352PA-100NES M4300-52G-PoE+ Network RJ45/SFP+ switch 176 Gbit/s

Description

The NETGEAR M4300 Stackable switch series delivers cost-effective L2/L3/L4 and IPv4/IPv6 network edge (edge) and core (core) services for small and medium-sized enterprises with unmatched ease of use: 10 Gigabit models can be stacked seamlessly with 1 Gigabit models within the range, WAS line rate spine and leaf stacking topologies enabled. Non-stop forwarding (NSF) virtual chassis architectures provide advanced high availability (HA) with Hitless failover in the stack. Two redundant power supply modules on the full-width models contribute to business continuity management. The Layer 3 feature set includes static, dynamic, and policy-based routing by default. The NETGEAR M4300 switch series is perfectly suited for wireless access, unified communications and IP-video. It is also future-proof, as it supports software-defined network (SDN) and OpenFlow 1.3 in your network.
