Name: NETGEAR XS724EM-200EUS Easy Smart XS724EM Network RJ45/SFP+ switch 24 ports 480 GBit/s
Brand: NETGEAR
SKU: 3773455

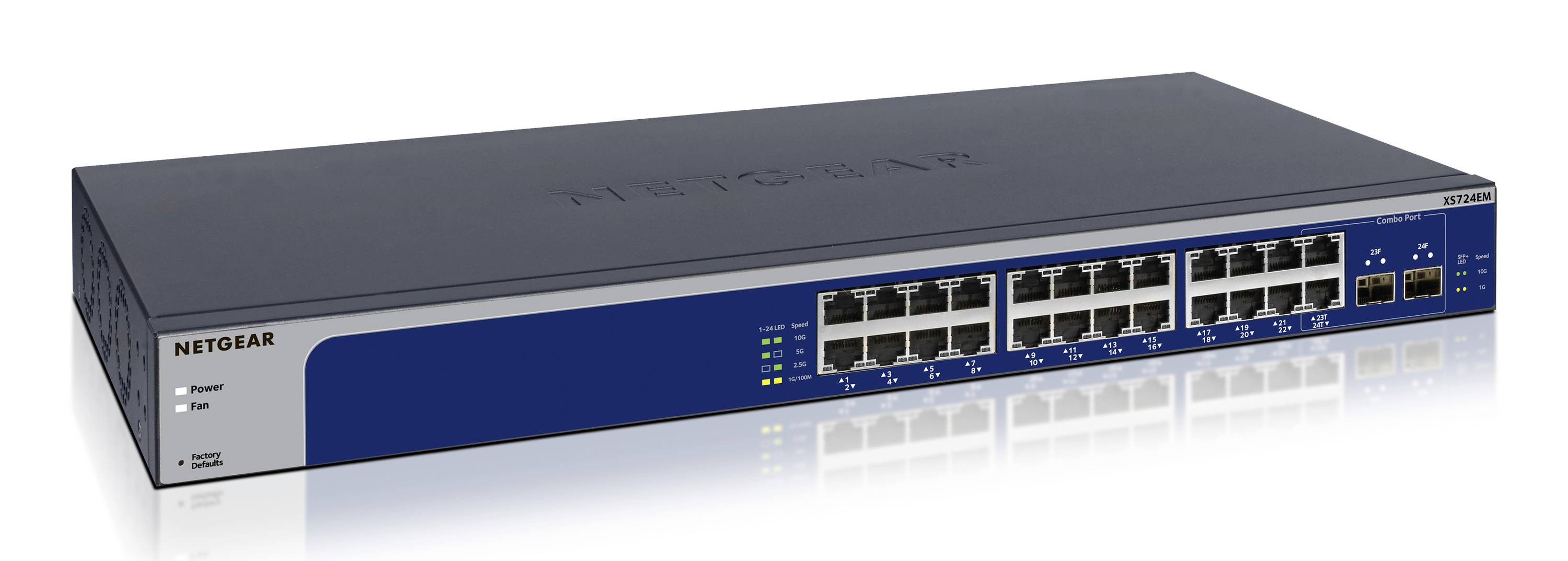

Front view of a NETGEAR rackmount network switch with multiple Ethernet ports and status LEDs on a blue front panel.

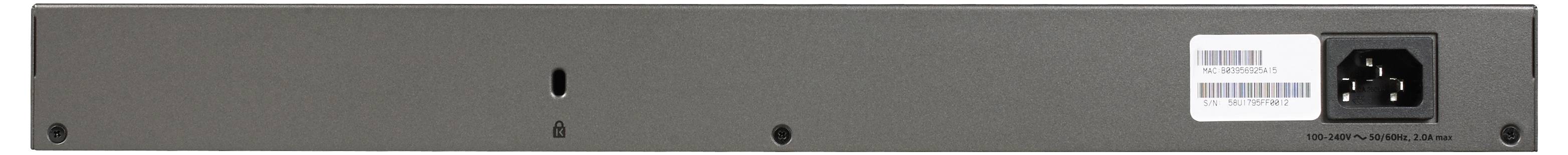

Rear panel of a gray electronic device showing a power inlet on the right, a barcode label, and mounting holes.

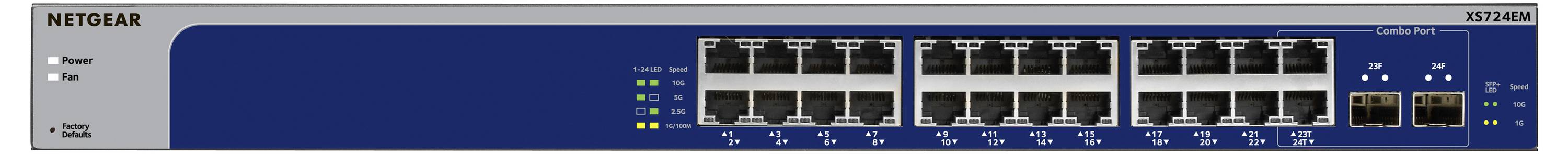

NETGEAR network switch front panel with multiple Ethernet ports, status LEDs, and a power indicator on the left.

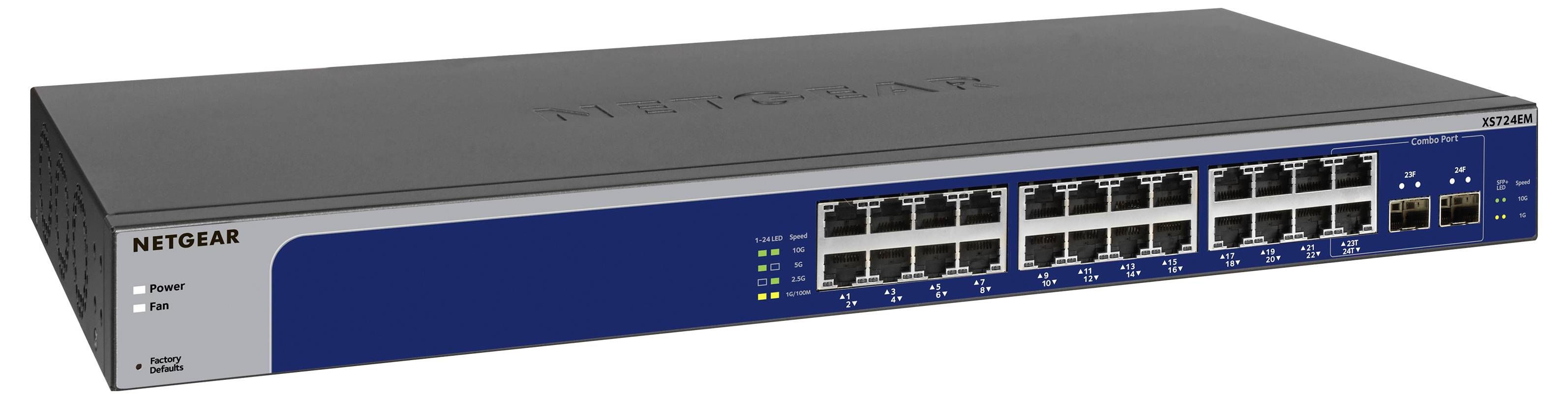

NETGEAR network switch with 24 Ethernet ports and status LEDs on a blue front panel, shown in angled product view.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR XS724EM Managed L2 10G Ethernet (100/1000/10000) 1U blue, gray

Supports up to 256 IGMP multicast groups
Provides 24 ports for 100/1000/2.5G/5G/10GBASE-T connections
Provides robust security with DoS attack protection and VLAN support
Includes a web GUI for easy remote management
Supplied with a rack mounting kit for versatile installation options

Technical specifications

Form factor: 1U
Number of fans: 3 fans
Energy source: AC

Product type: Network RJ45/SFP+ switch

Transfer rate: 480 GBit/s

Working principle: Managed switch

Ethernet ports: 24

SFP+ ports: 4 x

Jumbo frames: Yes

MAC addresses: 32000

Weight: 3.72 kg

Width: 440 mm

Height: 43 mm

Depth: 204 mm

Type: Easy Smart XS724EM

Factory colour: Blue
Grey

Port: 24 ports

Power supply (details): 100 - 240 V

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Packet buffer memory: 3 MB

Storage relative humidity (H-H): 0 - 95 %

Switching capacity: 480 Gbit/s

Heat dissipation: 513.88 BTU/h

Jumbo frames: 9000

SFP+ module slots quantity: 2

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Jumbo frames support: yes

Broadcast storm control: yes

Store-and-forward: yes

Rack mounting: yes

Mean time between failures (MTBF): 830493 h

MAC address table: 32000 Eintragungen

IGMP snooping: yes

Operating relative humidity (H-H): 0 - 90 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773455 NETGEAR XS724EM-200EUS Easy Smart XS724EM Network RJ45/SFP+ switch 24 ports 480 GBit/s

Description

The NETGEAR Easy Smart XS724EM switch offers a robust network solution for small and medium-sized companies as well as for demanding home networks. It has capacity for 8 priority queues, 256 IGMP multicast groups and 64 VLAN entries, ensuring optimal traffic management and network efficiency. Designed to meet high performance requirements, it offers 560 Gbps forwarding power and 8 MB packet buffer size, making it suitable for bandwidth-intensive applications and environments.
With 28 ports, including 24 supporting 100/1000/2.5G/5G/10GBASE-T, and 4 dedicated 10GBASE-X SFP+ ports, this switch improves connectivity options for various devices. The switch can be managed via HTTP and a user-friendly web-GUI, WAS enables a simple configuration and monitoring. It is equipped with important functions such as VLAN support, DoS attack protection and Quality of Service (QoS) for an improved network performance.

This text is machine translated.
