Name: NETGEAR XSM4324-100NES M4350-12X12F Network RJ45/SFP+ switch 480 GBit/s
Brand: NETGEAR
SKU: 3773475

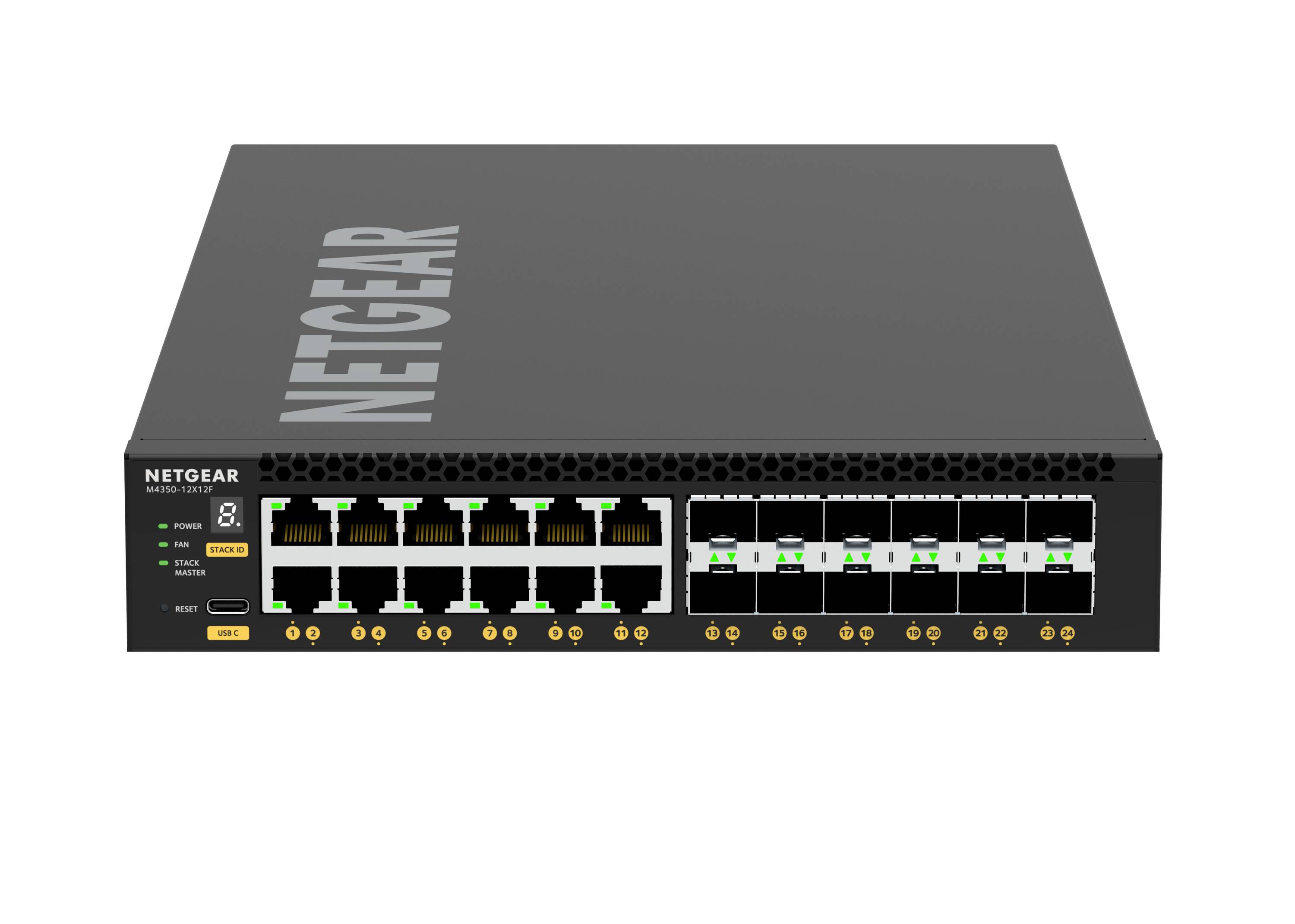

NETGEAR network switch front view with 16 Ethernet ports, status lights, and power/reset buttons on a black rackmount device.

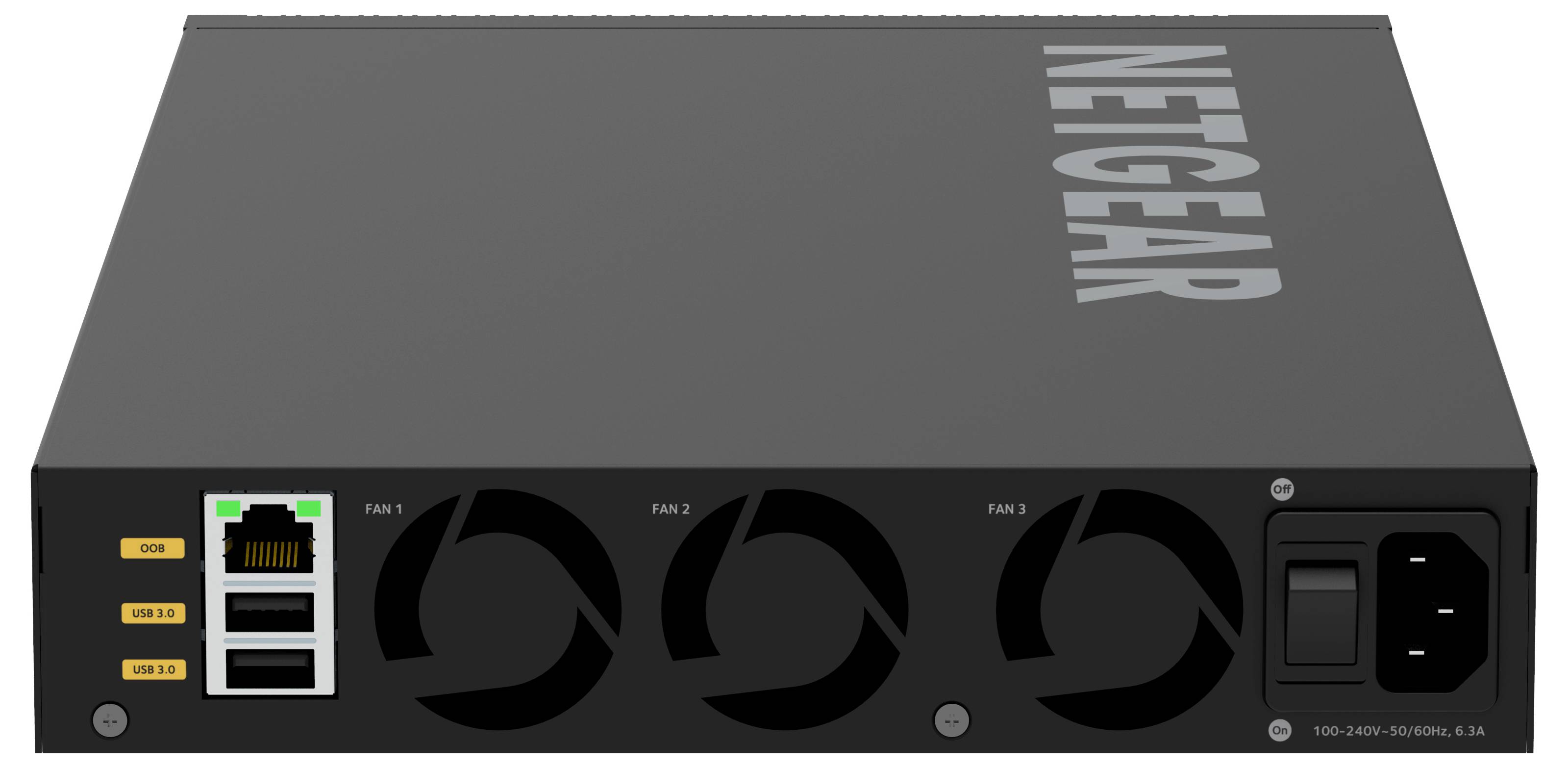

Rear view of a Netgear network device showing power input, three Ethernet ports, and three cooling fans.

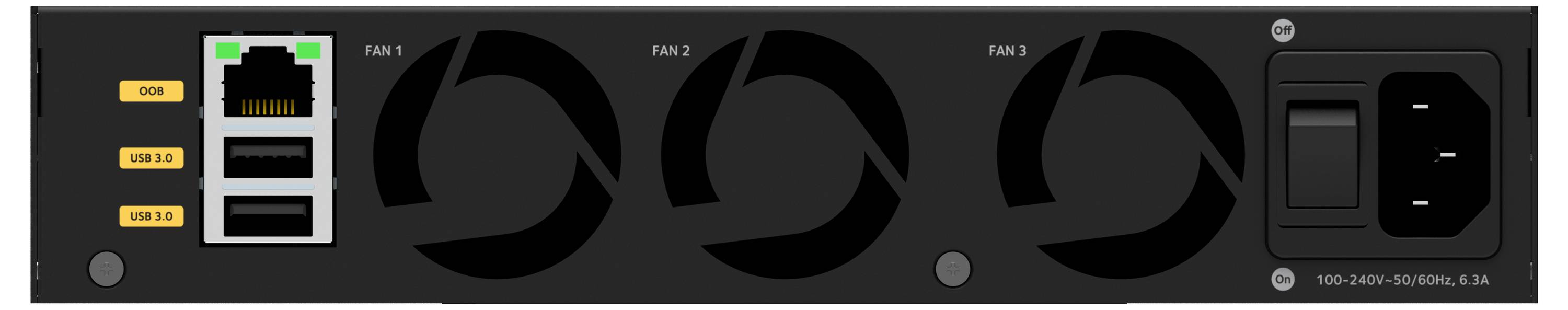

Close-up of a device’s rear panel with power inlet and switch on the right, four large fan vents across the center, and USB and Ethernet ports on the left.

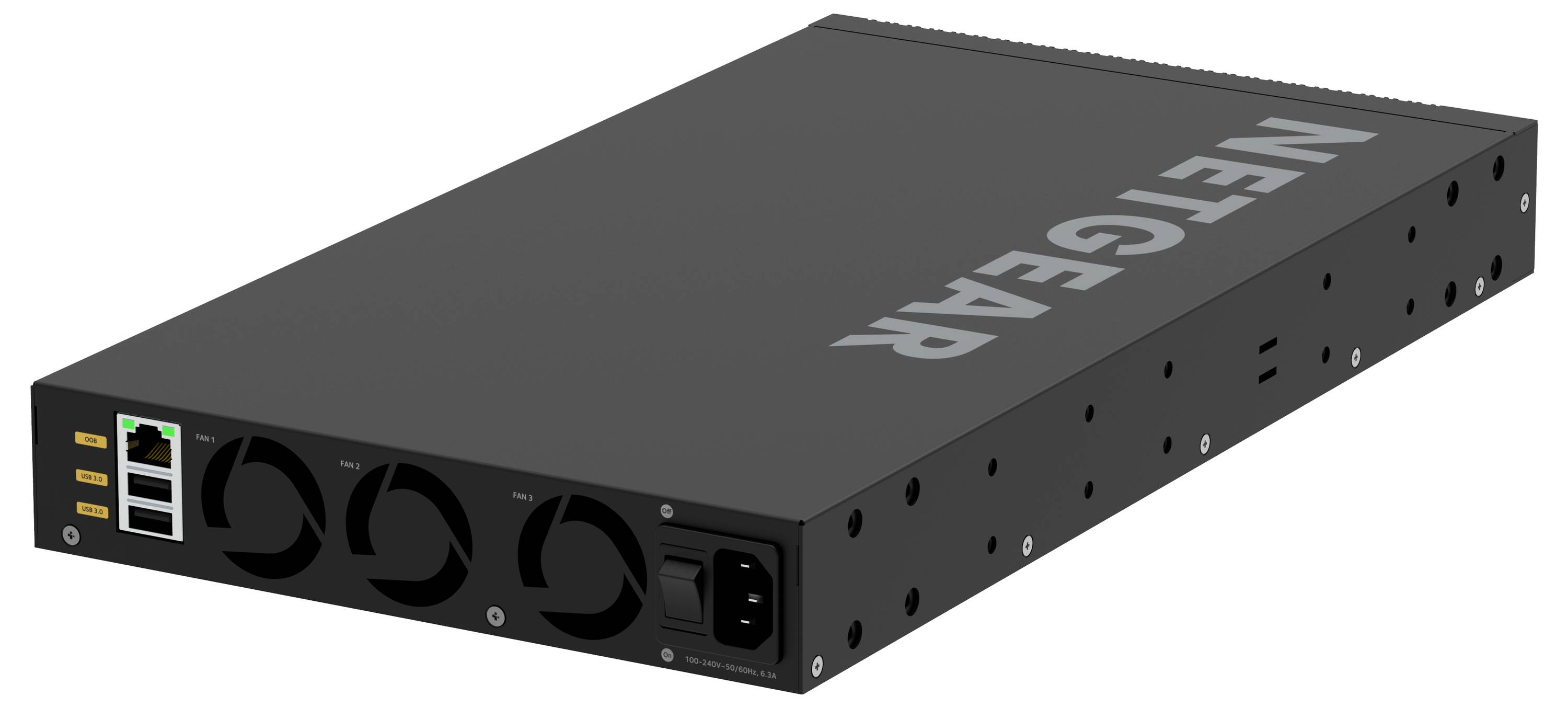

Front-left view of a NETGEAR rack-mount network switch with multiple Ethernet ports, cooling fans, and power input on a black metal chassis.

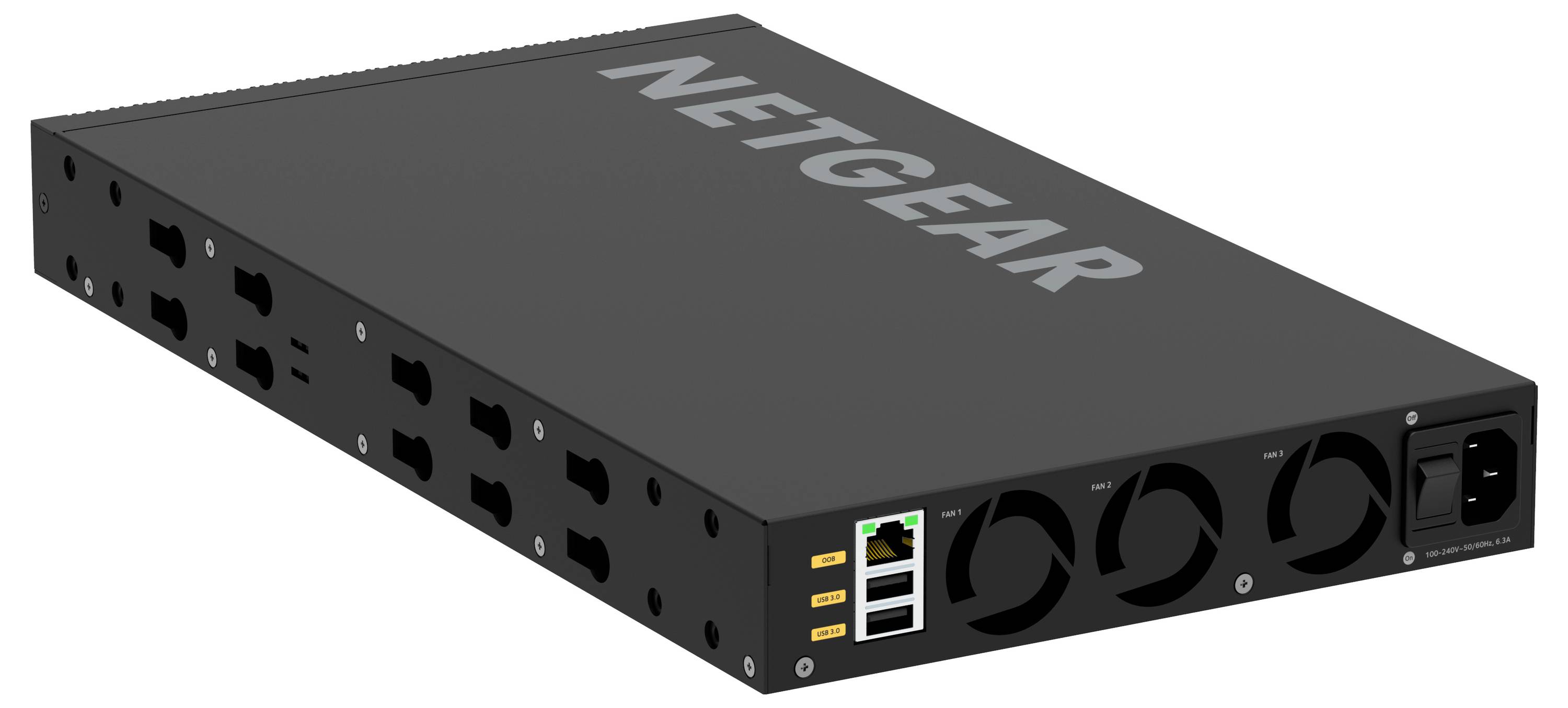

Black NETGEAR network switch with multiple Ethernet ports, status lights, and power inlet on the front panel.

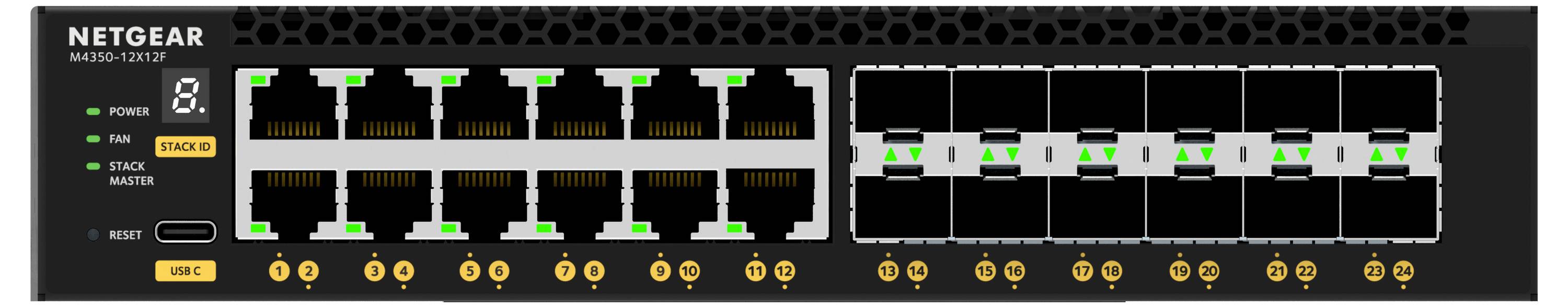

Front view of a NETGEAR 16-port network switch with status LEDs, Ethernet ports, and a USB port on the left.

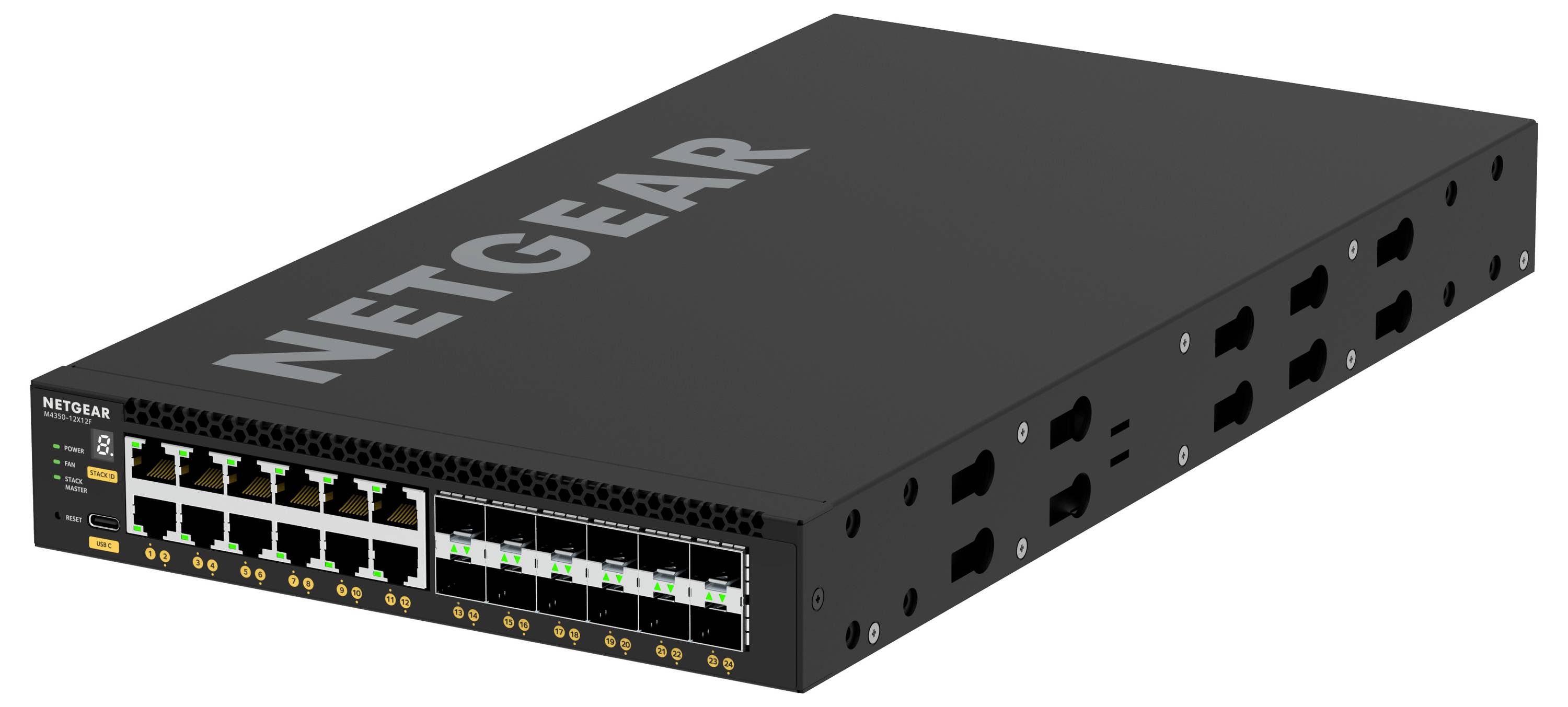

Black NETGEAR rackmount network switch with multiple Ethernet ports on the front and ventilation openings on the side.

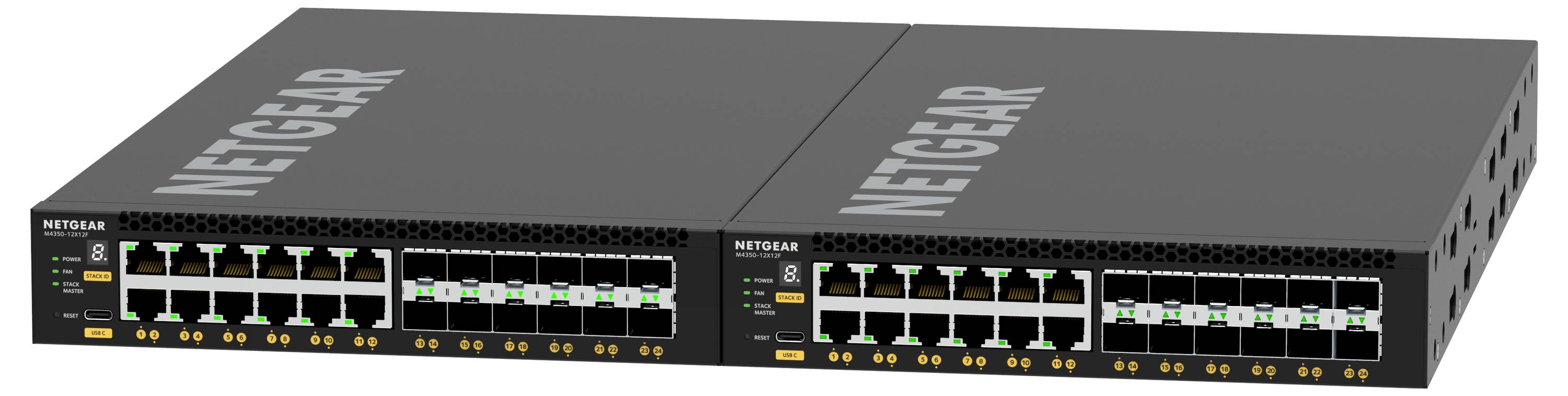

Two stacked NETGEAR rackmount network switches with multiple Ethernet ports and status lights, shown in a product-style view.

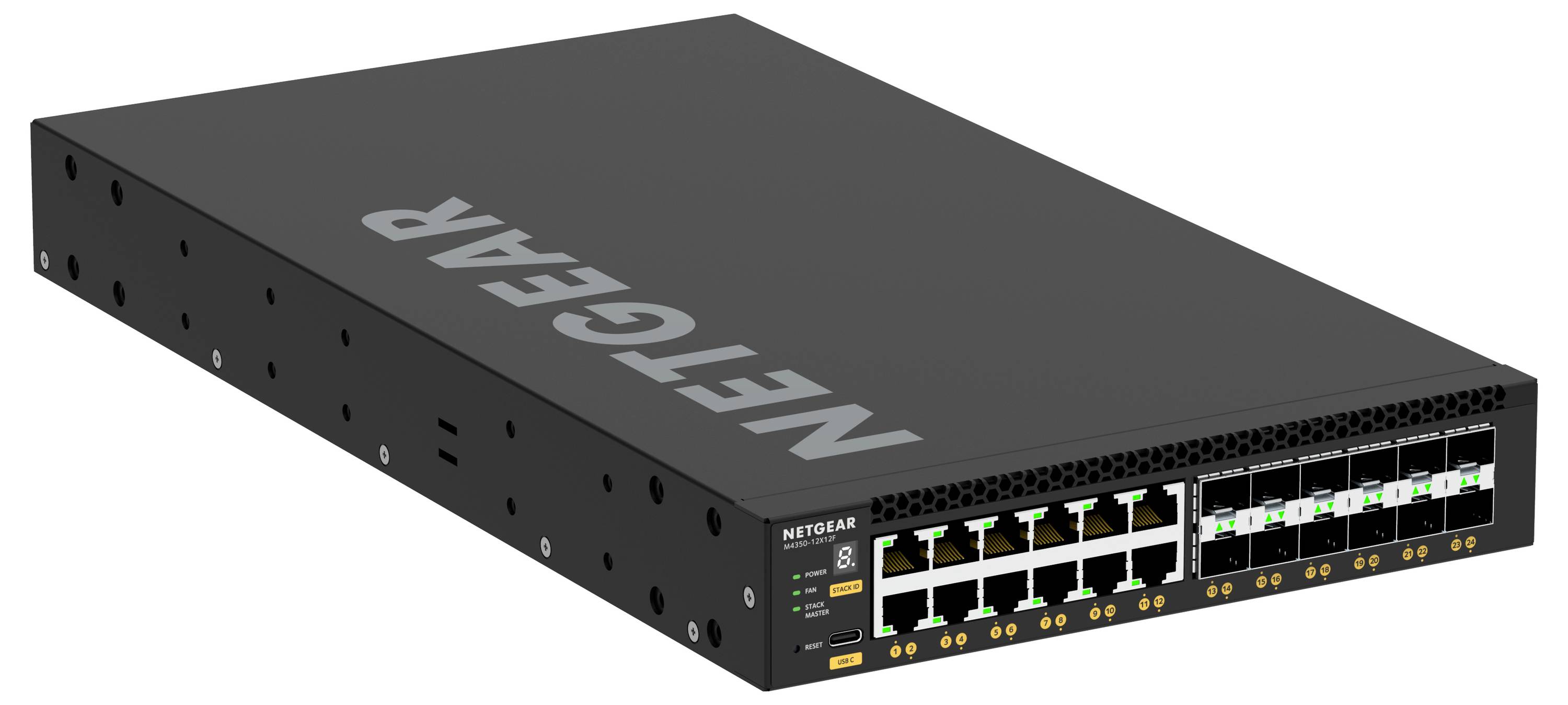

Black NETGEAR network switch with multiple Ethernet ports on the front panel, shown in a 3D angled product view.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4350-12X12F managed L3 10G Ethernet (100/1000/10000) 1U black

Managed L3 Web-based management SNMP V1, V2, V3
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 12
10G support
MAC address table: 16000 entries Routing/switching capacity: 480 Gb/s.
Access control list
1U Rack-mounting Stackable
AC power supply included
This text is machine translated.

Technical specifications

Form factor: 1U
DDR4 SDRAM
Energy source: AC

Product type: Network RJ45/SFP+ switch

Transfer rate: 480 GBit/s

Working principle: Managed switch

SFP+ ports: 12 x

No. of 100 Mbps/1Gbps/10Gbps ports: 12 x

Jumbo frames: Yes

MAC addresses: 16000

Weight: 4.3 kg

Width: 220 mm

Height: 43.2 mm

Depth: 400 mm

Type: M4350-12X12F

Factory colour: Black

Power consumption (ON): 95.8 W

PSU power: 240 W

CPU speed: 1800 MHz

: 2048 MB

Processor/type: ARM Cortex-A57

UKCA: yes

Operating temperature (T-T): 0 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 12

Packet buffer memory: 32 MB

Latency (1 Gbps): 2.14 µs

Latency (10 Gbps): 2.29 µs

Throughput: 357.12 Mpps

Storage relative humidity (H-H): 0 - 95 %

Non-operating altitude: 0 - 3000 m

Password protection: yes

Switching capacity: 480 Gbit/s

Rack mount kit: yes

Loop protection: yes

BPDU filtering/protection: yes

ARP inspection: yes

Jumbo frames: 12000

SFP+ module slots quantity: 12

Flow control support: yes

Power over Ethernet (PoE): no

MAC address filtering: yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Stackable: yes

Jumbo frames support: yes

Multicast support: yes

Broadcast storm control: yes

Static port security: yes

GARP VLAN Registration Protocol (GVRP): yes

Access Control List (ACL) ingress: 511

Access Control List (ACL) egress: 1023

Policy-based routing: yes

IGMP proxy: yes

Web-based management: yes

Store-and-forward: yes

Access Control List (ACL): yes

Rate limiting: yes

Quick start guide: yes

IPv4 routes: 512

IPv6 routes: 256

10G Ethernet (copper) ports quantity: 12

Rack mounting: yes

Full duplex: yes

Flash memory: 512 MB

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Number of VLANs: 4093

Spanning tree protocol: yes

Operating altitude: 0 - 3000 m

Operating relative humidity (H-H): 0 - 90 %

VLAN support: yes

DoS attack prevention: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Built-in processor: yes

Power supply included: yes
