Name: NETGEAR XSM4344FC-100NES M4350 Series Network SFP+ switch
Brand: NETGEAR
SKU: 3773453

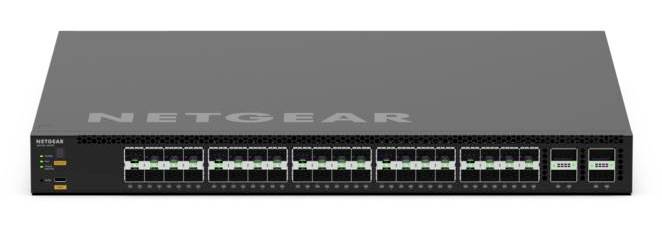

Front view of a NETGEAR rackmount network switch with multiple Ethernet ports and status LEDs.

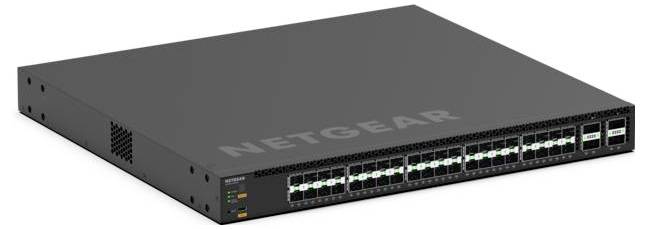

Netgear rack-mount network switch with multiple Ethernet ports and status lights, shown in a front-left angled product view on a white background

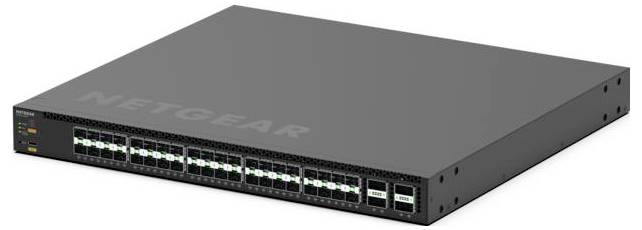

Front view of a NETGEAR network switch with multiple Ethernet ports and status lights on a gray rack-mount unit.

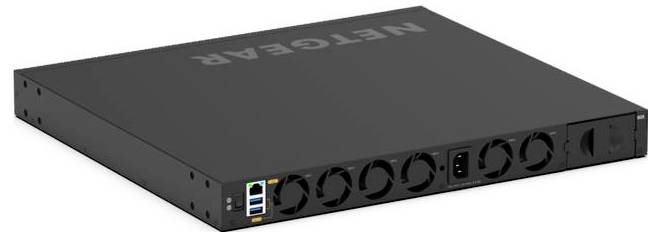

Black 1U rack-mounted network appliance with front vents and ports, labeled 'NETGEAR' on top.

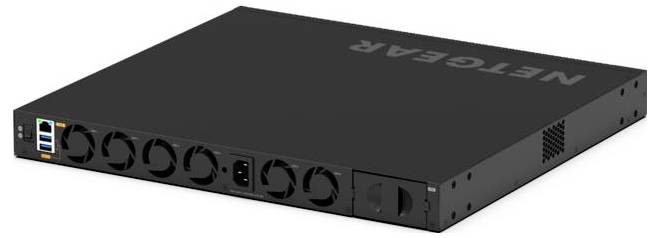

Black NETGEAR network switch with front ventilation ports and status lights, shown in a product-style side view.

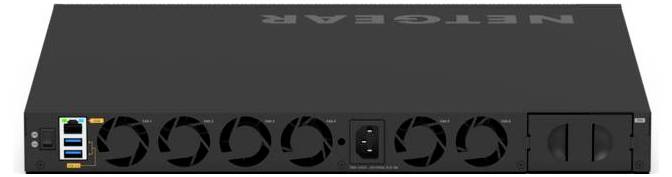

Front view of a black NETGEAR rackmount network device with multiple cooling fans, status lights, power inlet, and drive bays.

1/6

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR XSM4344FC managed L3 1U black

Supports up to 12,000 multicast entries
40 ports with 10 Gigabit SFP+ and 4 uplink ports with 100 Gigabit QSFP28
Advanced management capabilities for effective network control
Equipped with a powerful 1.8 GHz ARM processor and 4 GB RAM
Front-to-back airflow design for efficient cooling

Technical specifications

Optical cable connector QSFP28,SFP+
Form factor: 1U
DDR4 SDRAM
Energy source: AC

Product type: Network SFP+ switch

Working principle: Managed switch

QSFP+ ports: 4 x

SFP+ ports: 40 x

Jumbo frames: Yes

Weight: 7.38 kg

Width: 440 mm

Height: 43.2 mm

Depth: 400 mm

Type: M4350 Series

Factory colour: Black

Max. operating noise: 69.5 dB

: 4000 MB

UKCA: yes

Installed SFP+ modules quantity: 40

Switching capacity: 1600 Gbit/s

Heat dissipation: 728.21 BTU/h

Rack mount kit: yes

Power over Ethernet (PoE): no

Stackable: yes

Jumbo frames support: yes

IGMP proxy: yes

Manual: yes

QSFP28 ports quantity: 4

Rack mounting: yes

Fiber ports quantity: 44

IGMP snooping: yes

10G support: yes

Power consumption (max): 213.6 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773453 NETGEAR XSM4344FC-100NES M4350 Series Network SFP+ switch

Description

The NETGEAR M4350-40F4C is a versatile switch that has been designed to meet the needs of modern network environments. With robust capacity that supports up to 12,000 multicast entries, this device ensures efficient data distribution across networks. It has 40 ports with 10 Gigabit SFP+ and offers uplink options with 4 ports with 100 Gigabit QSFP28, allowing seamless connectivity between devices for high-performance applications. Its advanced management features, including support for protocols such as SNMP and RMON, enable effective network monitoring and control.
The NETGEAR M4350 series switches are designed for reliability and are equipped with a powerful ARM Cortex-A57 processor with 1.8 GHz and 4 GB DDR4 SDRAM to efficiently master intensive tasks. The switch supports various routing protocols and offers features such as non-stop forwarding (NSF) and dynamic VLAN support, thereby improving the overall functionality of the network. With its front-to-back airflow design and large operating temperature range, it is suitable for installation in different environments and ensures optimum performance and durability.

This text is machine translated.
