Name: NETGEAR XSM4556-100EUS M4500-48XF8C Network SFP switch 48 ports
Brand: NETGEAR
SKU: 3773461

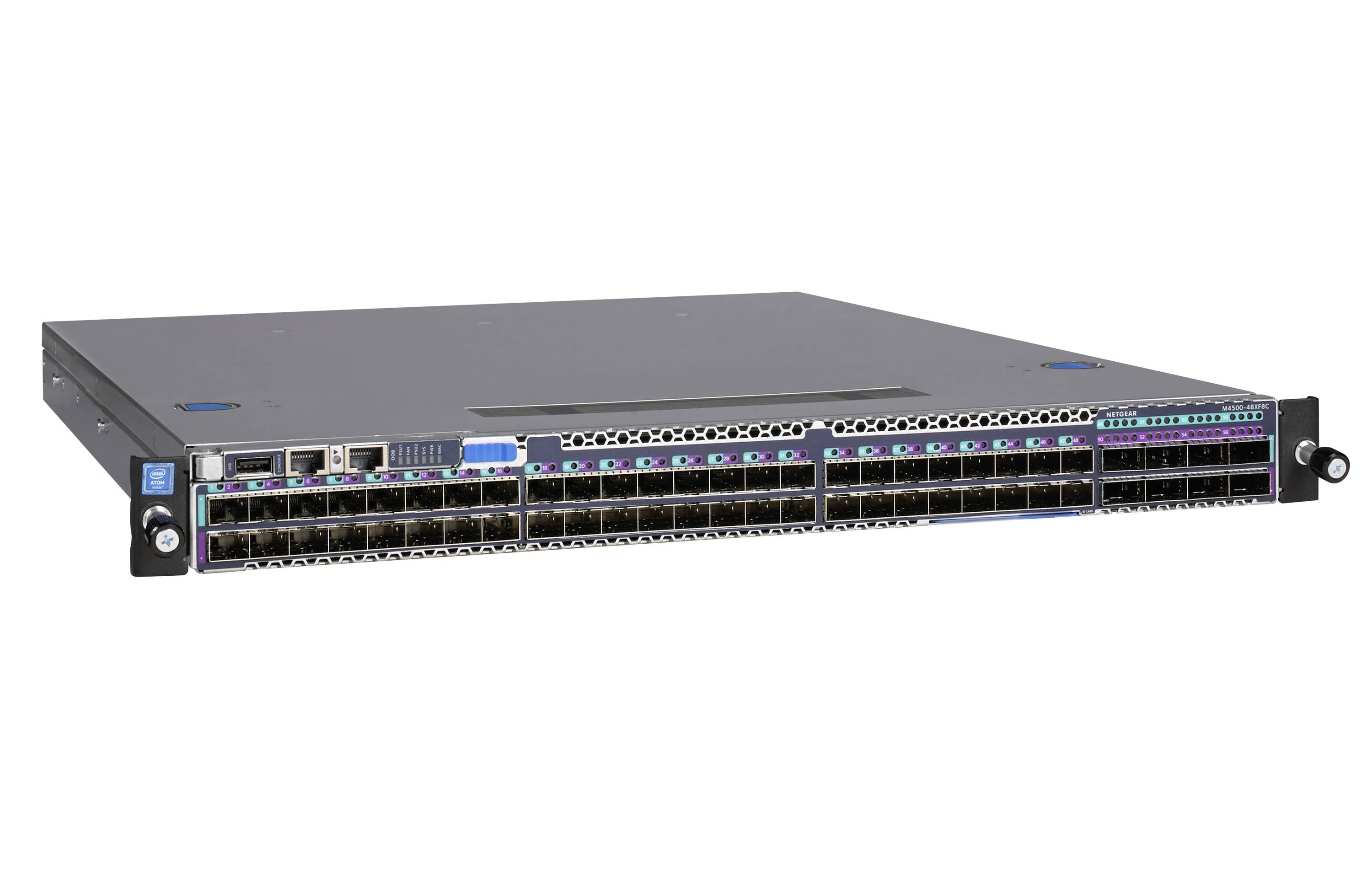

Front view of a rack-mount network switch with multiple Ethernet ports and status lights on a white background.

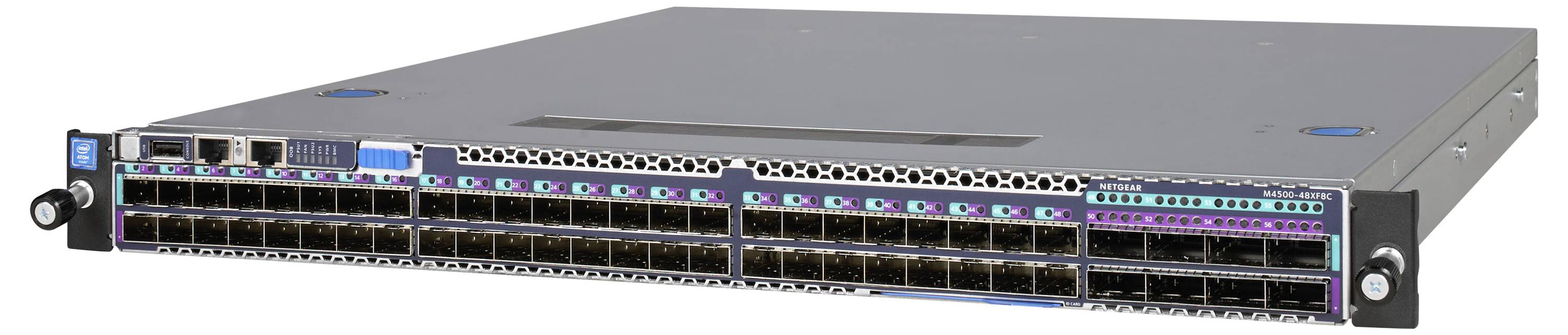

Front view of a rack-mounted network switch with many Ethernet ports and a few uplink ports, used for high-density data networking.

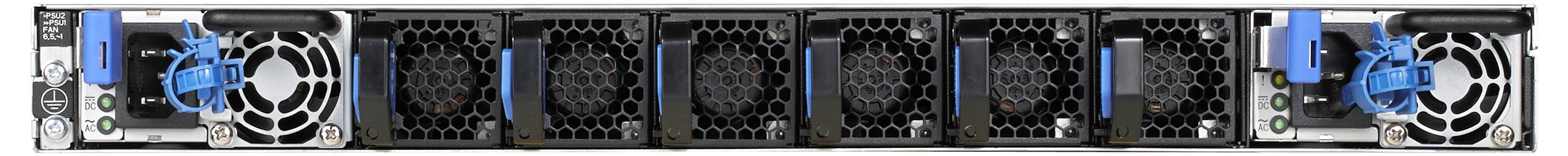

Rear view of a rack server with two hot-swap power supplies at the ends, multiple vented modules in the center, and blue release latches/handles.

Infographic: '35% more capacity than competing products'; Bundle compressed by 50%, multiple bundles stick together, individual dispensing prevents overconsumption.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

NETGEAR M4500-48XF8C Managed L2/L3/L4 1U Black

Managed L2/L3/L4 Web-based management Web GUI, HTTPS, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Quality of Service (QoS) support
Console port RJ-45
10G support
MAC address table: 32000 entries Routing/switching capacity: 4000 Gb/s.
Access control list
1U Rack-mounting

Technical specifications

Optical cable type: QSFP+
Form factor: 1U
DDR3-SDRAM memory type

Product type: Network SFP switch

Working principle: Managed switch

SFP ports: 48 x

Jumbo frames: Yes

MAC addresses: 32000

Weight: 9.73 kg

Type: M4500-48XF8C

Factory colour: Black

Port: 48 ports

No. of USB A 2.0 ports: 1 x

Material (details): Metal

Max. operating noise: 64 dB

: 8000 MB

Safety: HTTPS
SNMP
SSH

UKCA: yes

Auto-sensing: yes

Auto-negotiation: yes

Switching capacity: 4000 Gbit/s

BPDU filtering/protection: yes

ARP inspection: yes

Products per master (outer) case: 1 Stück(e)

Flow control support: yes

Power over Ethernet (PoE): no

Quality of Service (QoS) support: yes

Port mirroring: yes

Link aggregation: yes

Multicast support: yes

Web-based management: yes

Access Control List (ACL): yes

System event log: yes

Rate limiting: yes

Reset button: yes

Manual: yes

QSFP28 ports quantity: 8

SFP28 ports quantity: 48

Rack mounting: yes

Flash memory: 256 MB

MAC address table: 32000 Eintragungen

SSH/SSL support: yes

IGMP snooping: yes

Auto MDI/MDI-X: yes

Number of VLANs: 4000

Spanning tree protocol: yes

VLAN support: yes

10G support: yes

Package weight: 20.9 kg

Built-in processor: yes

User guide: yes

Power consumption (max): 426 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773461 NETGEAR XSM4556-100EUS M4500-48XF8C Network SFP switch 48 ports

Description

Managed switch with 48 10 / 25G and 8 40/50 / 100G ports

As Pro AV-over-IP systems are getting bigger and bigger, a new class of switches has been launched. The SDVoE-enabled 100G and 10G Ethernet M4500 switches combine the configurability of a matrix switch with the performance and scalability of Ethernet to support hundreds of AV-over-IP endpoints, at a price much lower than comparable matrix switches. Layer 3 PIM SSM routing is available but not mandatory: These new switches offer IGMP + and significantly simplify system architectures on Layer-2 with the same known IGMP techniques across the AV over IP network.

This text is machine translated.

Features

The M4500-48XF8C switch offers 48-port SFP28 (1G, 10G, and 25G fiber) and 8-port QSFP28 (40G, 50G, and 100G fiber)
With 4 TBit/s non-blocking fabric and 2Bpps forwarding rate, the M4500-48XF8C offers comprehensive L2 / L3 / L4 and IPv4 / IPv6 services for professional AV over IP installations (SDVoE certified)
Two modular power supplies are pre-installed for 1 + 1-power redundancy
For 4 + 2 fan redundancy six modular fan slots are pre-installed
Spine and leaf topology line rate with the M4500-32C (32-port QSFP28 100G)
Layer 3 features include static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite, and PIM
Improved IGMP + implementation for Layer 2 Plug & Play Multicast between M4300 / M4500 switches
Lifetime hardware warranty, lifetime NBD and lifetime technical online chat for investment protection and customer service

Description

Features

The M4500-48XF8C switch offers 48-port SFP28 (1G, 10G, and 25G fiber) and 8-port QSFP28 (40G, 50G, and 100G fiber)
With 4 TBit/s non-blocking fabric and 2Bpps forwarding rate, the M4500-48XF8C offers comprehensive L2 / L3 / L4 and IPv4 / IPv6 services for professional AV over IP installations (SDVoE certified)
Two modular power supplies are pre-installed for 1 + 1-power redundancy
For 4 + 2 fan redundancy six modular fan slots are pre-installed
Spine and leaf topology line rate with the M4500-32C (32-port QSFP28 100G)
Layer 3 features include static and dynamic routing with VRRP, OSPF, BGP, VRF-Lite, and PIM
Improved IGMP + implementation for Layer 2 Plug & Play Multicast between M4300 / M4500 switches
Lifetime hardware warranty, lifetime NBD and lifetime technical online chat for investment protection and customer service
