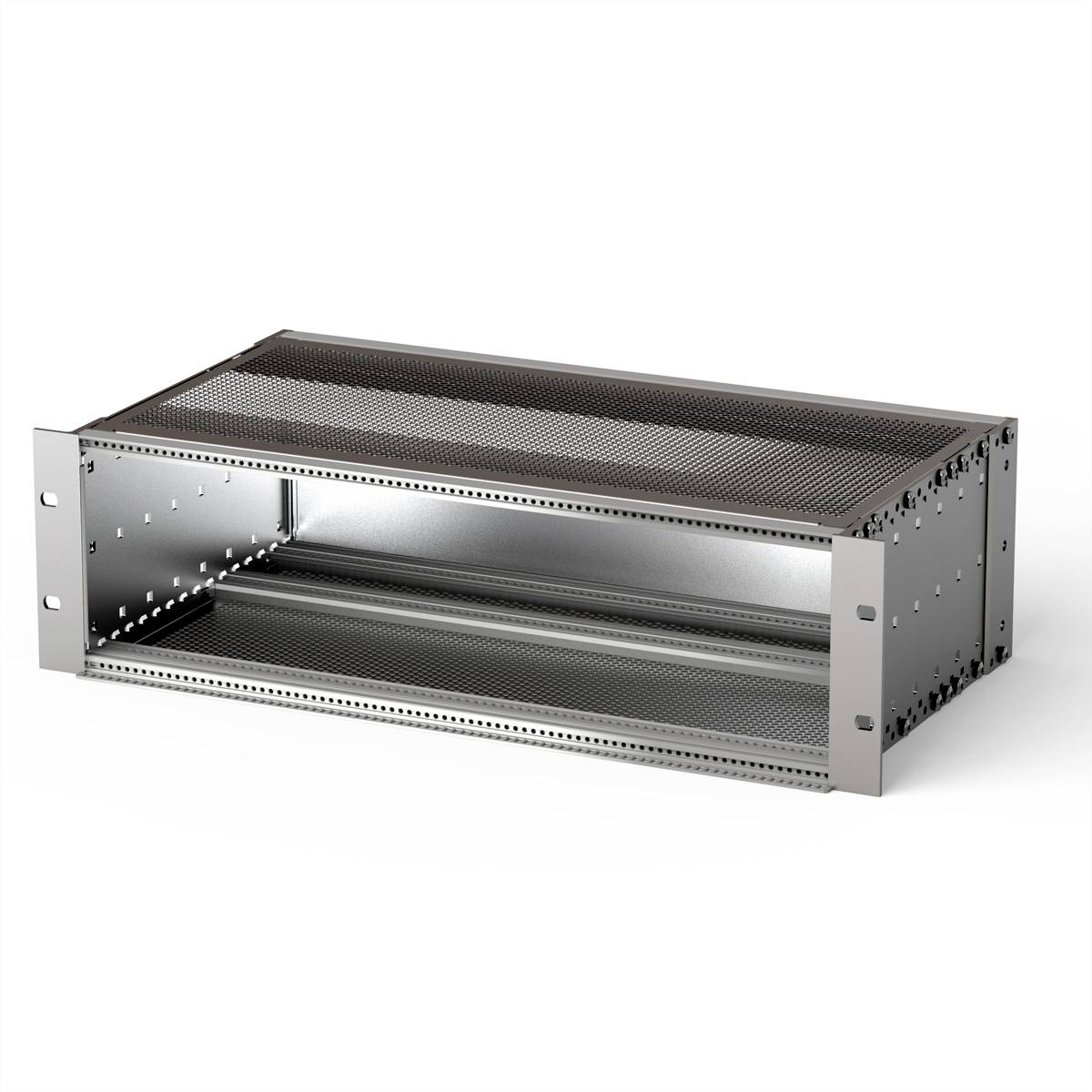

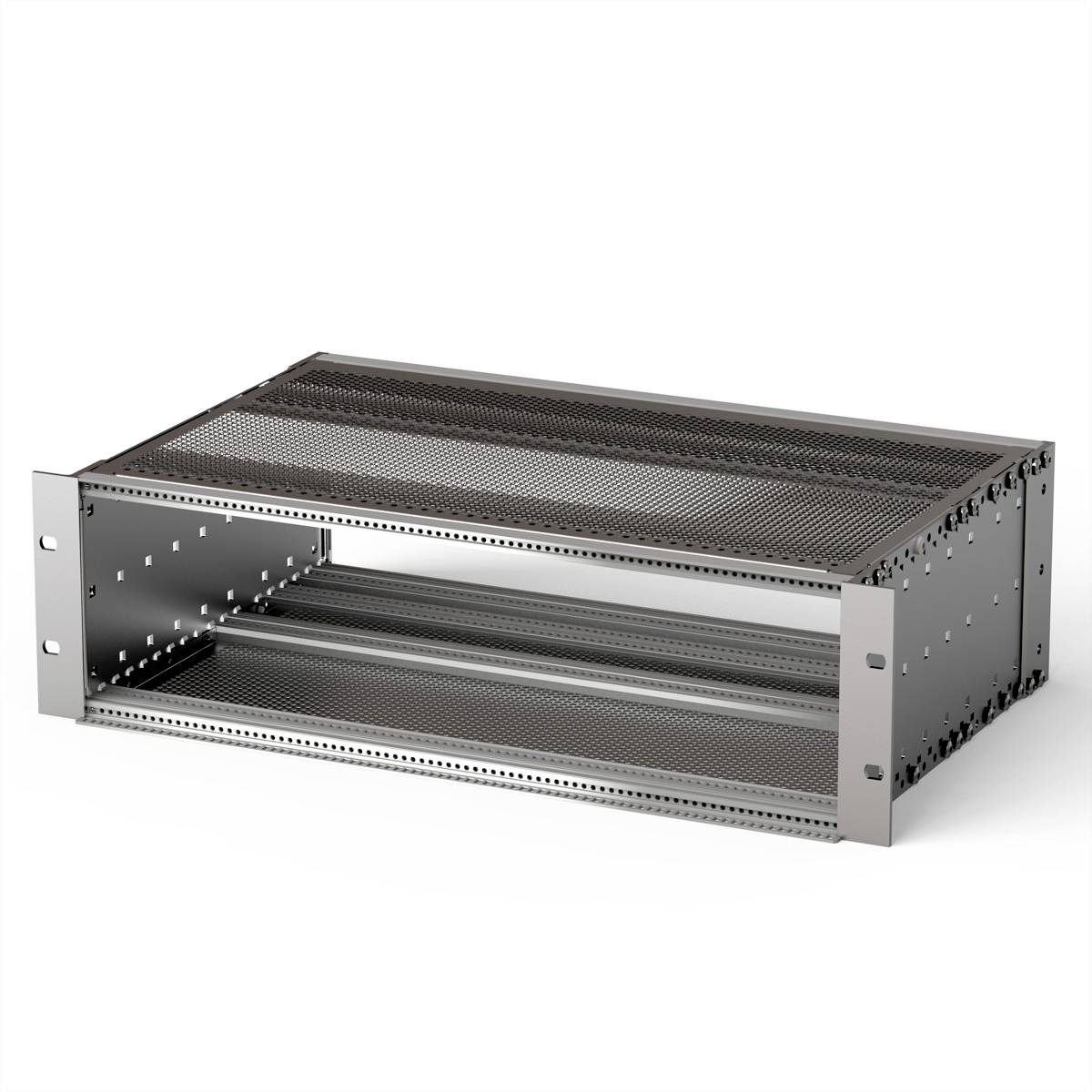

nVent SCHROFF 24563157 19" rack 3 x 275 Multicolour 1 pc(s)
Product type
19" rack
Height
3 U
Factory colour
Multicolour
Content
1 pc(s)
RoHS-compliant
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
SCHROFF kit, shielded, for CompactPCI, for backplane mounting, for rear I/O - BGTR PRO F 3HE 84TE 275T LD
Our service for you
Technical specifications
- Product type
19" rack
- Factory colour
Multicolour
- Height
3 U
- Content
1 pc(s)
- RoHS-compliant
Yes
- Depth
275 mm
- Type
24563157
- Rack unit
3 U
- Weight
2.6
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2990845 nVent SCHROFF 24563157 19" rack 3 x 275 Multicolour 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2990845 nVent SCHROFF 24563157 19" rack 3 x 275 Multicolour 1 pc(s)
Description
EuropacPRO 19 rack set for backplane, screened, CompactPCI, 3 HE, 275 mm
SUBR PRO F 3U 84HP 275D LL
Rack with side panel type F ("flexible") for CompactPCI plug-in modules with high plug-in and pull-out forces in accordance with IEEE 1101.10/11 and IEC 60297-3-103
For rear I/O-boards (depth 80 mm)
Rear module rail for backplane mounting with insulation strips
Shield attenuation typically 40 dB at 1 GHz, 30 dB at 2 GHz (according to VG 95373, part 15 or IEC 61587, part 3), provided that the front is closed with shielded front panels
This text is machine translated.
SUBR PRO F 3U 84HP 275D LL
Rack with side panel type F ("flexible") for CompactPCI plug-in modules with high plug-in and pull-out forces in accordance with IEEE 1101.10/11 and IEC 60297-3-103
For rear I/O-boards (depth 80 mm)
Rear module rail for backplane mounting with insulation strips
Shield attenuation typically 40 dB at 1 GHz, 30 dB at 2 GHz (according to VG 95373, part 15 or IEC 61587, part 3), provided that the front is closed with shielded front panels
This text is machine translated.
