OBO Bettermann 2002345 Junction box (L x W) 136 mm x 57 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section of 10 mm²
- Length = 136 mm
- Width = 57 mm
- The number of entries = 8
- Material = Plastic
- Halogen-free = Yes
- Sealable = No
- Rated insulation voltage Ui=660 V
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Dim
(L x W) 136 mm x 57 mm
- Length
136 mm
- Width
57 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960074 OBO Bettermann 2002345 Junction box (L x W) 136 mm x 57 mm 1 pc(s)
Description

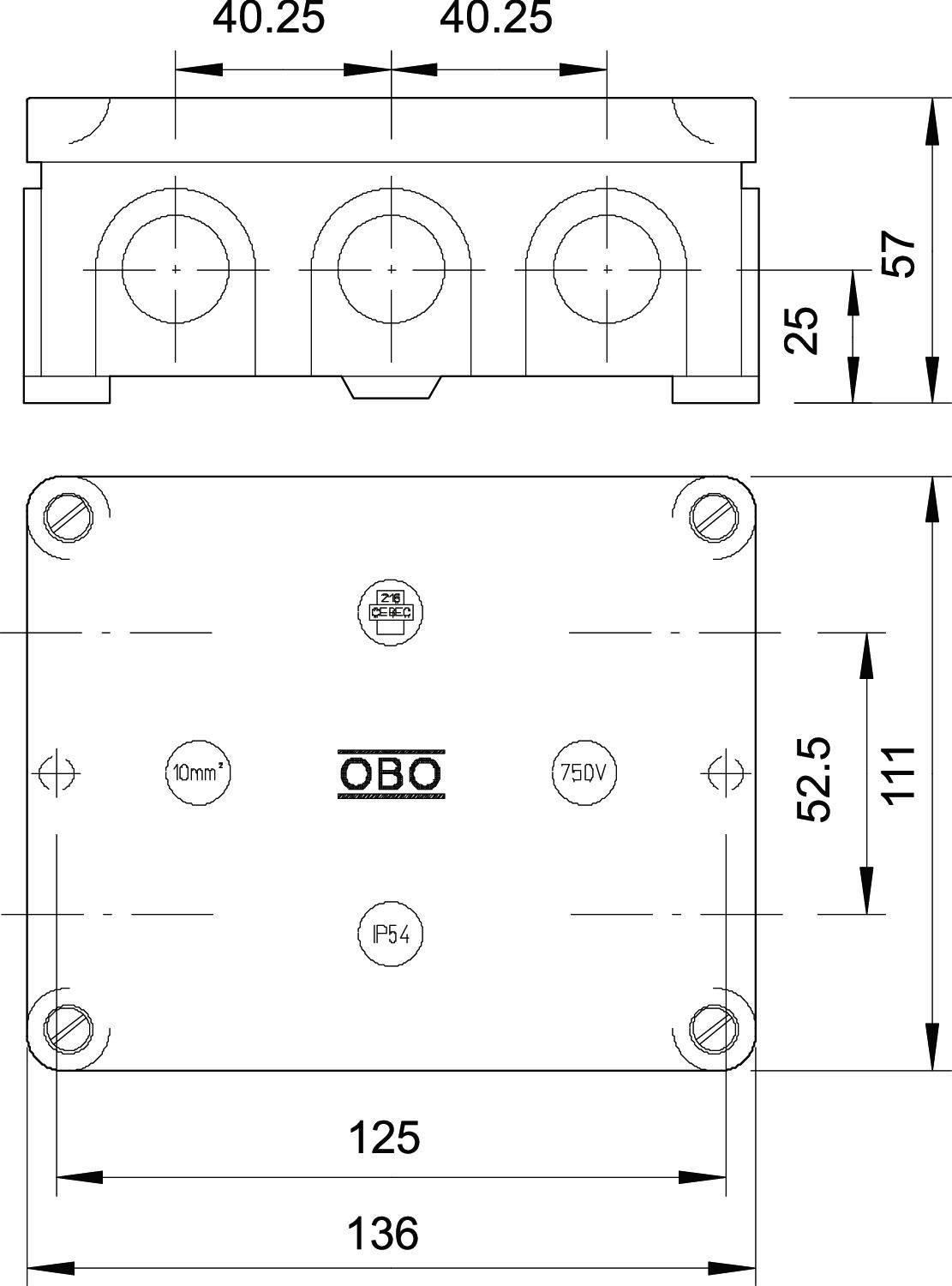

Protection class IP54, rated voltage 660 V, nominal diameter mm², 2 mounting holes for screws up to 6 mm diameter on the outside of the box, 4 cover screws, 10 Breakable entries with thread M20 x 1.5, preferably for screwed cable glands with short connecting thread. Dimensions: 136 x 111 x 57 mm internal dimensions: 125 x 100 x 44 mm.
This text is machine translated.
This text is machine translated.
