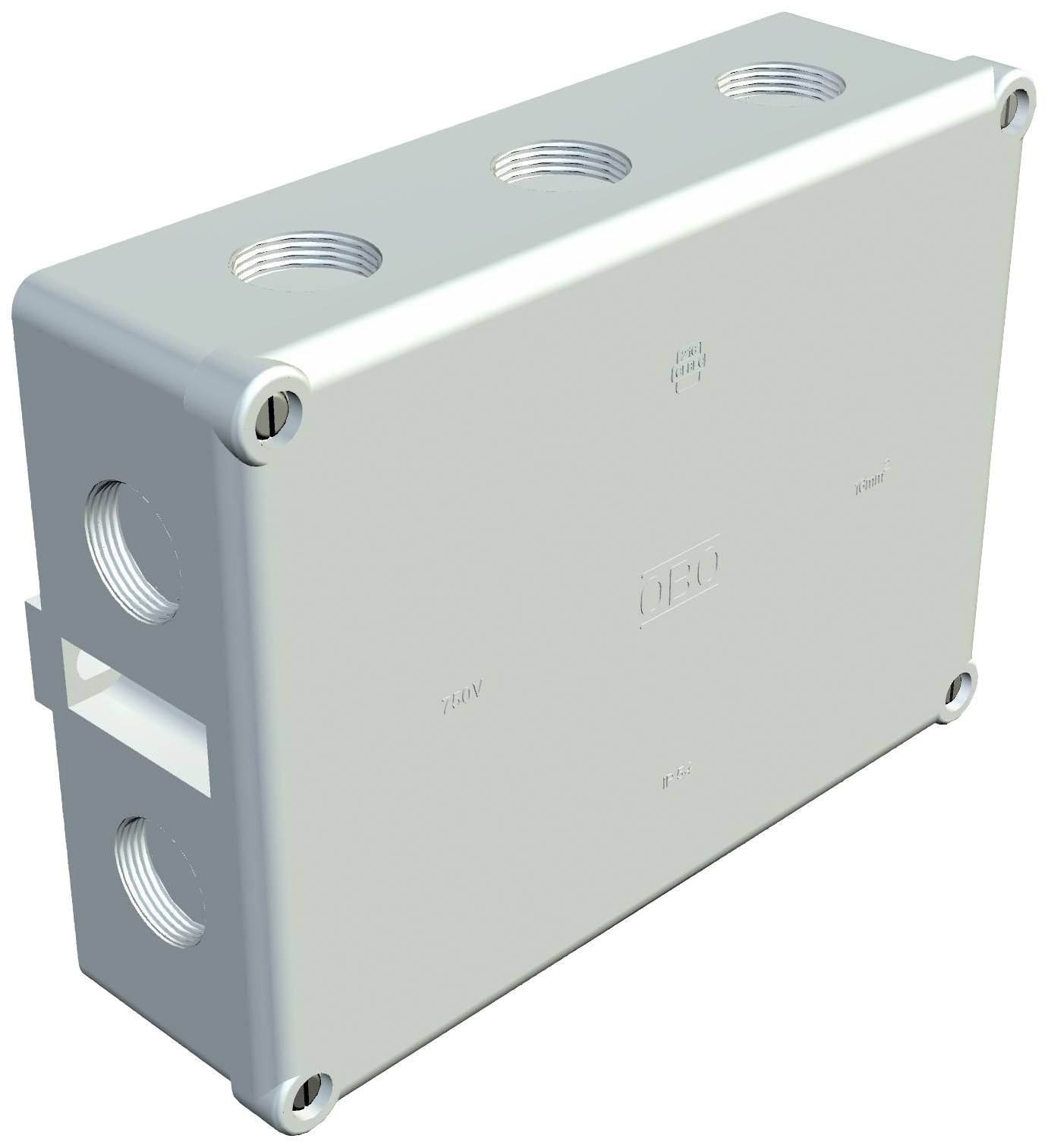

OBO Bettermann 2002507 Junction box (L x W x H) 71 x 196 x 144 mm Grey IP54 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section: 16 mm²
- Mounting type: wall mounted
- Number of Entries: 8
- The type of entry: cable gland
- Halogen-free: yes
- With cover: yes
- Sealable: no
- Rated insulation voltage: 660 V
- Operating temperature: -40..65 °C
- Product type
Junction box
- Factory colour
Grey
IP54
- Dim
(L x W x H) 71 x 196 x 144 mm
- Content
1 pc(s)
- Material
Plastic
- Width
196 mm
- Height
144 mm
- Length
71 mm
- Mounting type
Surface-mount
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961424 OBO Bettermann 2002507 Junction box (L x W x H) 71 x 196 x 144 mm Grey IP54 1 pc(s)
Description

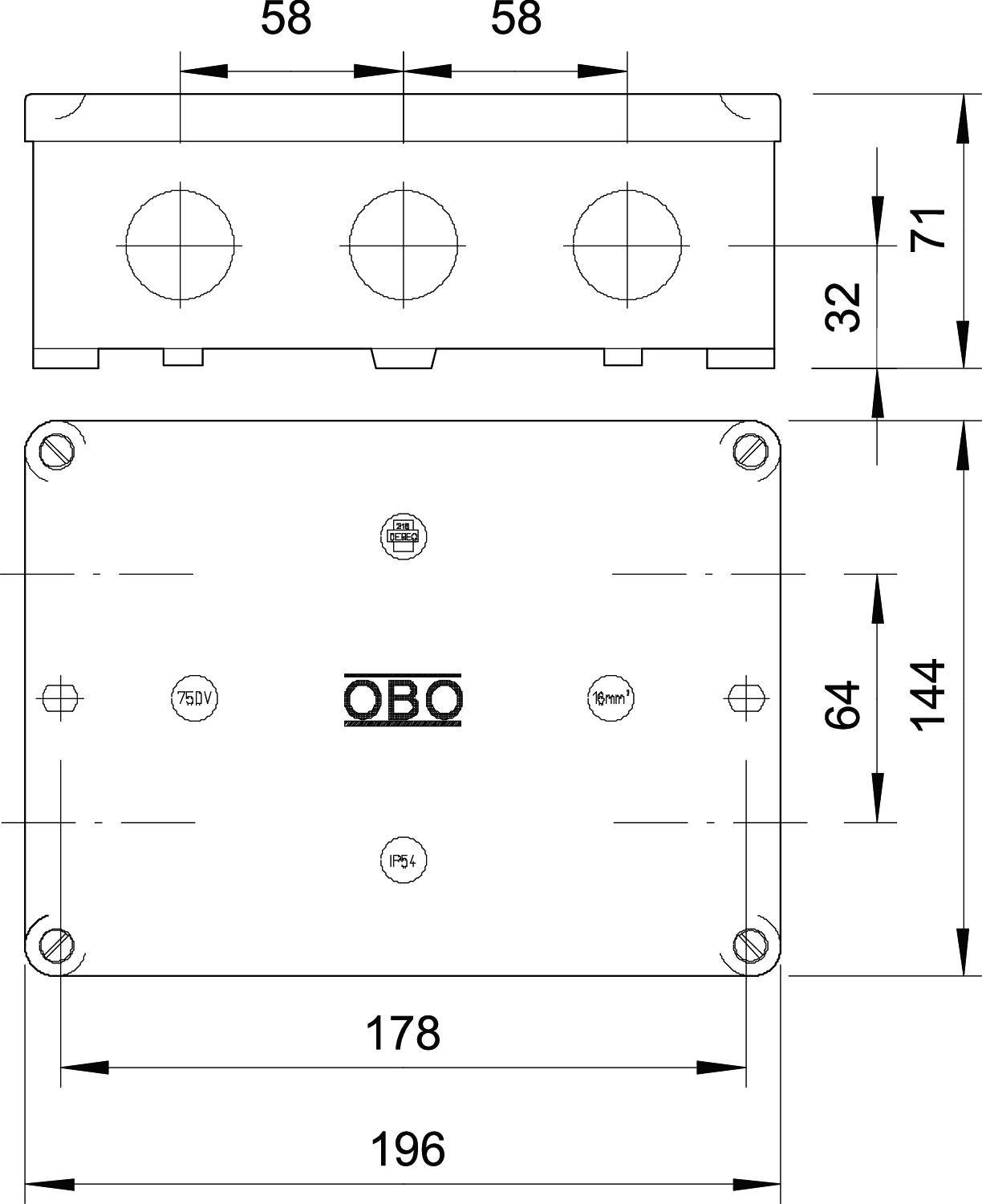

Protection class IP54, rated voltage 660 V, nominal diameter mm², 2 mounting holes for screws up to 6 mm diameter on the outside of the box. 4 cover screws, 10 Breakable entries with thread M25 x 1.5. Dimensions: 196 x 144 x 71 mm internal dimensions: 178 x 126 x 57 mm
This text is machine translated.
This text is machine translated.
