Name: OBO Bettermann 2005034 Junction box (L x W) 114 mm x 114 mm 1 pc(s)
Brand: OBO Bettermann
SKU: 1967124

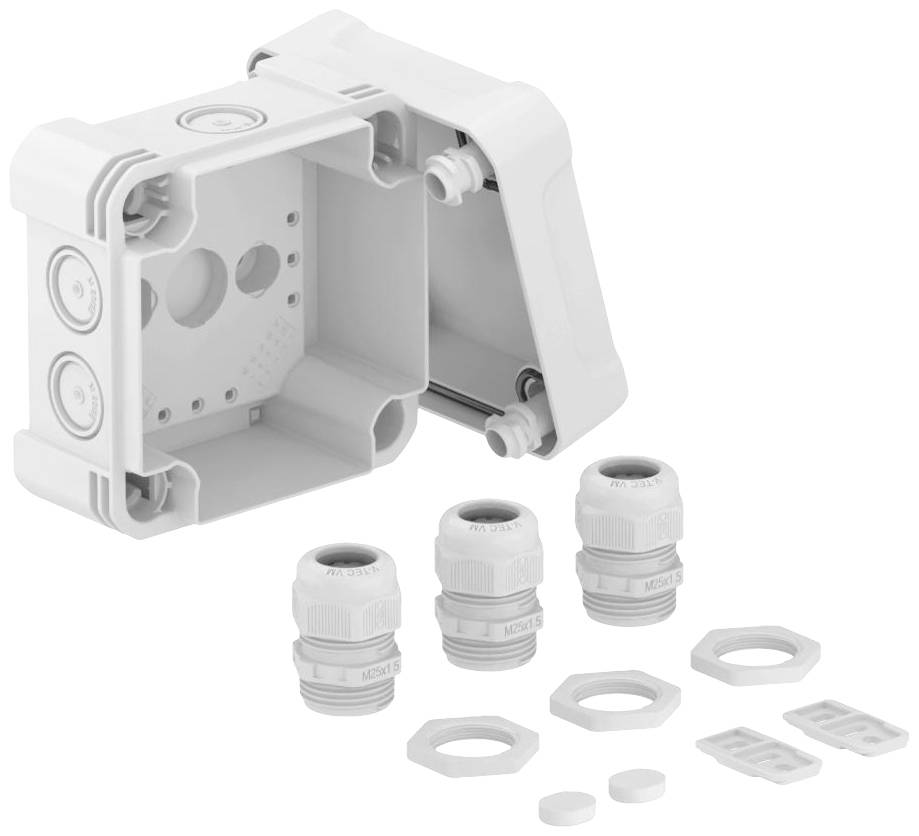

Electrical junction box, opened, with multiple cable glands and seals, shown for installation and cable management.

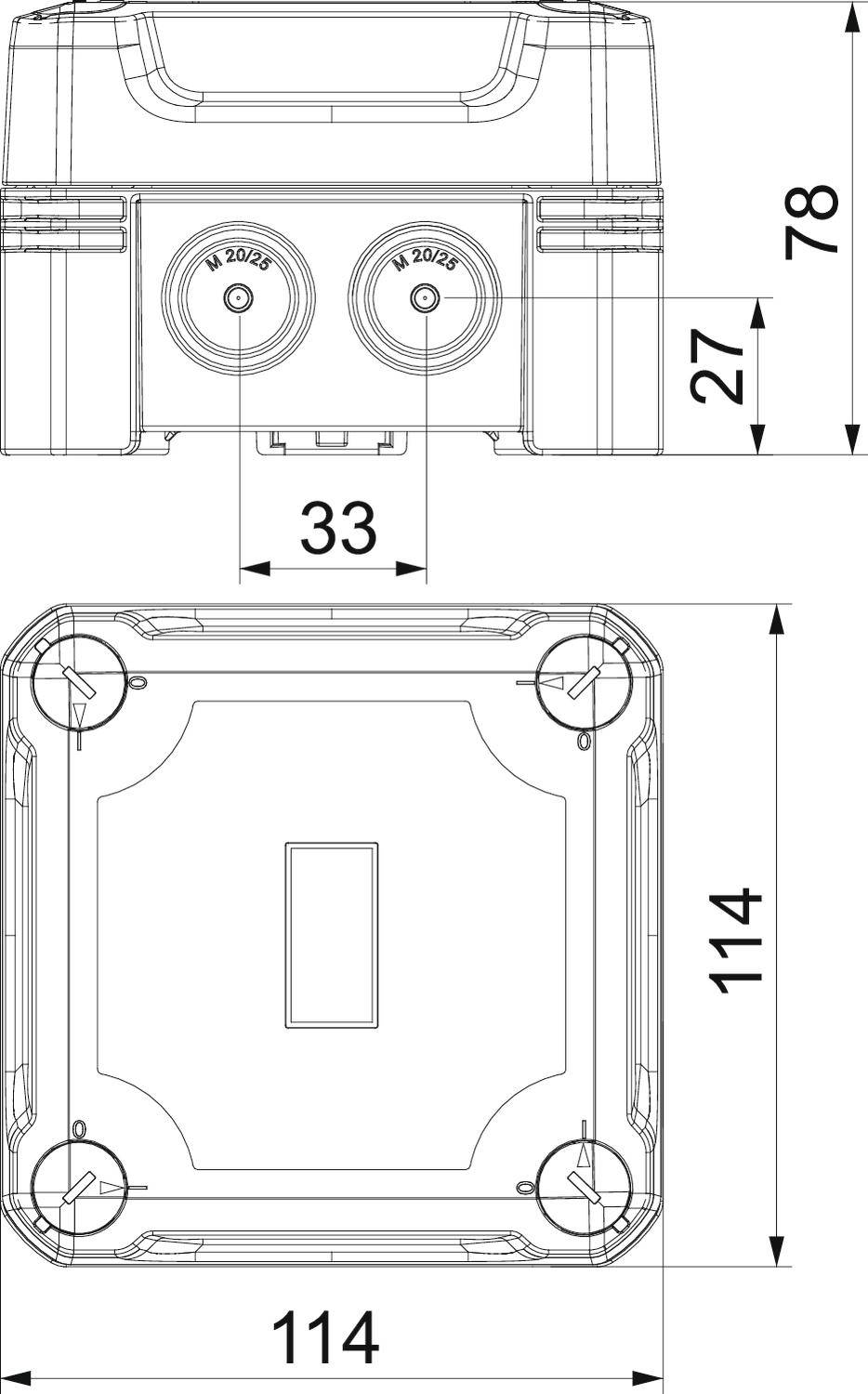

Technical drawing of a rectangular enclosure with dimensions: 78 mm height, 114 mm width, 114 mm depth. Front and top view.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section = 4 mm²
Assembly = other
The form = square
Mounting type = wall/ceiling mounting
Introduction of rear = No
Length = 114 mm
Width = 114 mm
Depth = 78 mm
Can be stacked end-to-end = Yes
The number of entries = 7
The type of casing feed = Knockout
Material = Plastic
Halogen-free = Yes
Surface = untreated
Color = gray
IP67 degree of protection (IP) =
Cover Mounting = screwed
Sealable = Yes
Rated insulation voltage Ui=750 V
With Shielding = No
Weather-proof = Yes
Use temperature =-25: 0.65°C
Explosion tested design = No

Product type: Junction box

Features: Halogen-free

Content: 1 pc(s)

Factory colour: Grey

Dim: (L x W) 114 mm x 114 mm

Length: 114 mm

Width: 114 mm

Depth: 78 mm

: IP67

Mounting: Other

: Wall-/ceiling mounting

: Grey

: 114

: TRUE

: 78 mm

: Square

: Untreated

: 750 V

: 114 m

: -5-60 °C

: Plastic

: FALSE

: IP67

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1967124 OBO Bettermann 2005034 Junction box (L x W) 114 mm x 114 mm 1 pc(s)

Description

In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016). Additionally, the Type X01G M20 EAA three cable glands V-TEC and three nuts.
