Name: OBO Bettermann 2005070 Junction box (L x W) 241 mm x 191 mm 1 pc(s)
Brand: OBO Bettermann
SKU: 1959046

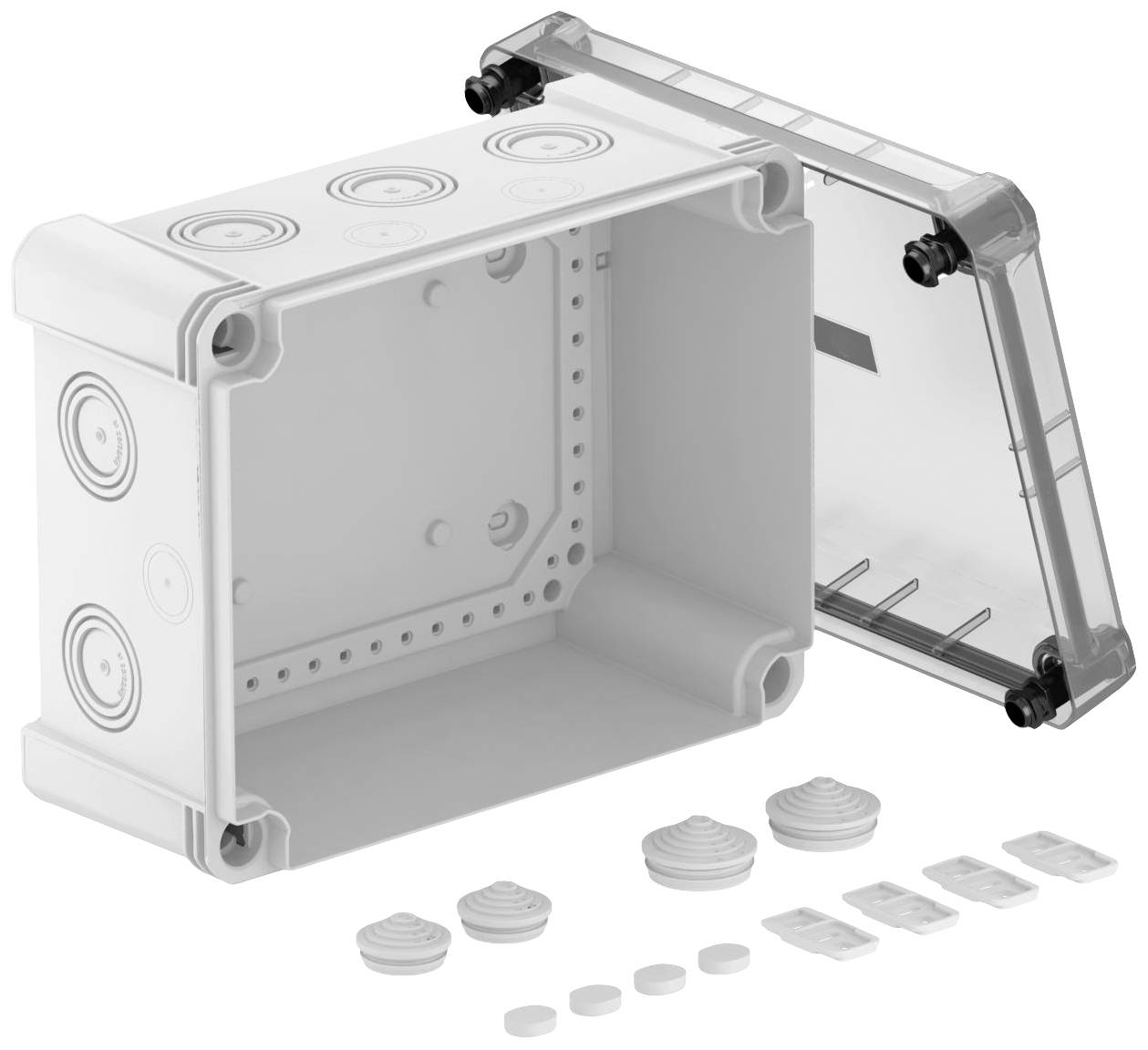

Rectangular, white housing with a removable, transparent lid. Contains round and square stoppers to cover openings.

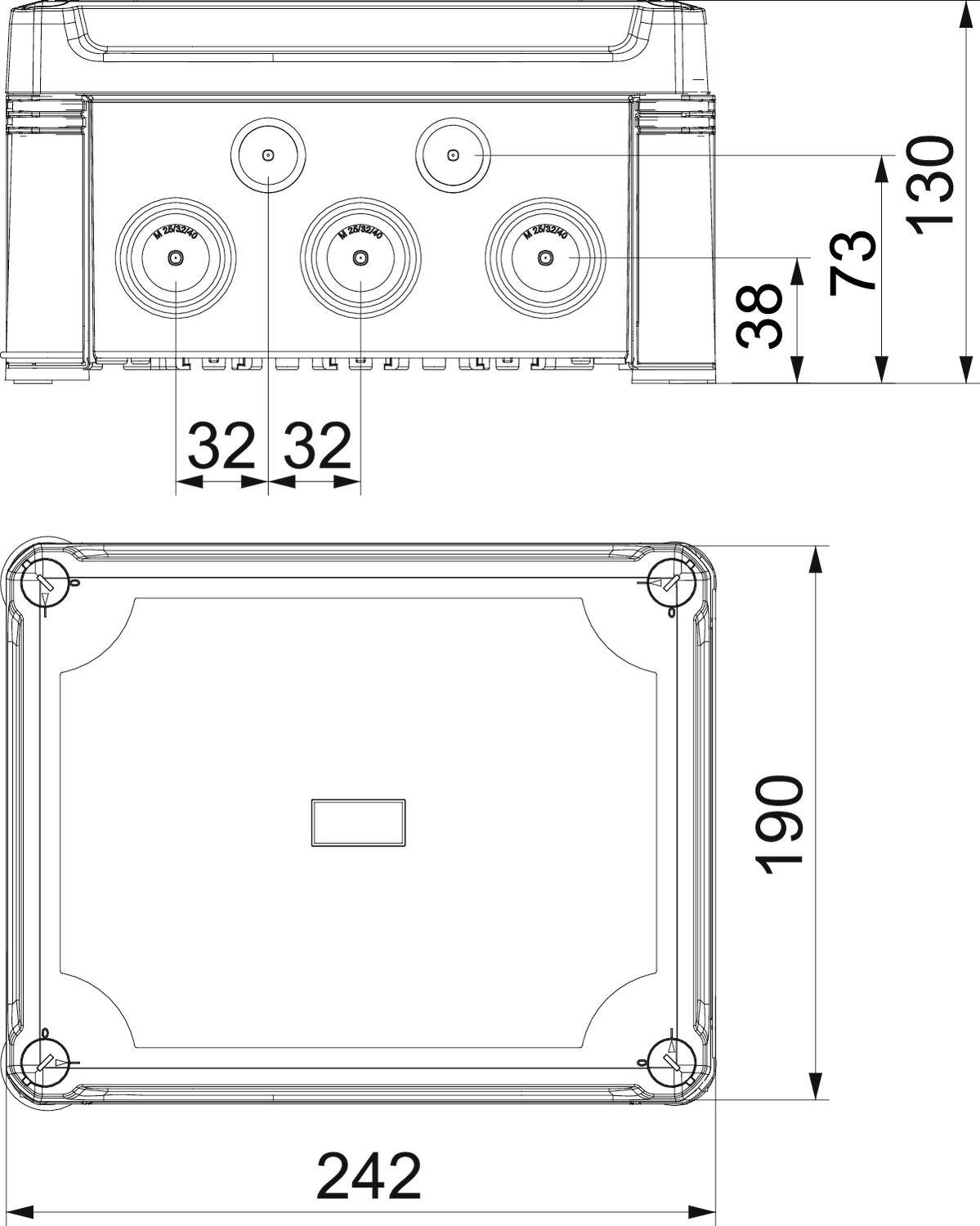

Technical Drawing of a Rectangular Enclosure with Dimensions: 242 mm Width, 190 mm Height, 130 mm Depth. Three Round Connections on the Top Surface.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section = 16 mm²
Assembly = without
The form = rectangular
Mounting type = wall/ceiling mounting
Introduction of rear = No
Length = 241 mm
Width = 191 mm
Depth = 126 mm
Can be stacked end-to-end = Yes
The number of entries = 10
The type of casing feed = Knockout
Material = Plastic
Halogen-free = Yes
Surface = untreated
IP67 degree of protection (IP) =
Cover Mounting = screwed
Sealable = Yes
Rated insulation voltage Ui=750 V
With Shielding = No
Weather-proof = Yes
Use temperature =-25: 0.65°C
Explosion tested design = No

Product type: Junction box

Features: Halogen-free

Content: 1 pc(s)

Dim: (L x W) 241 mm x 191 mm

Length: 241 mm

Width: 191 mm

Depth: 126 mm

: IP67

Mounting: None

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1959046 OBO Bettermann 2005070 Junction box (L x W) 241 mm x 191 mm 1 pc(s)

Description

In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016).

This text is machine translated.
