Name: OBO Bettermann 2005104 Junction box (L x W) 286 mm x 202 mm 1 pc(s)
Brand: OBO Bettermann
SKU: 1965809

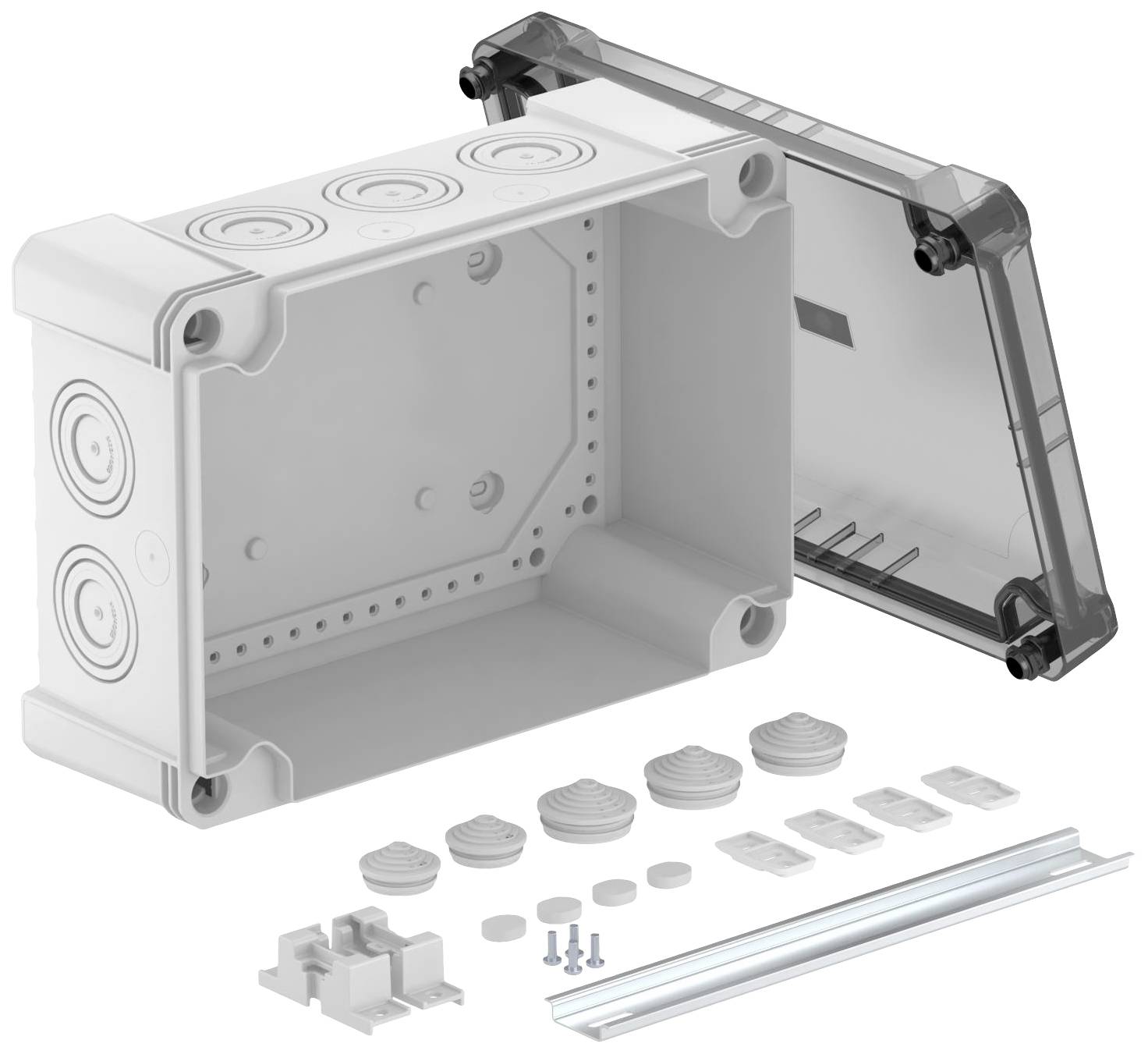

Plastic junction box with a removable transparent lid, multiple cable entries, and mounting accessories underneath.

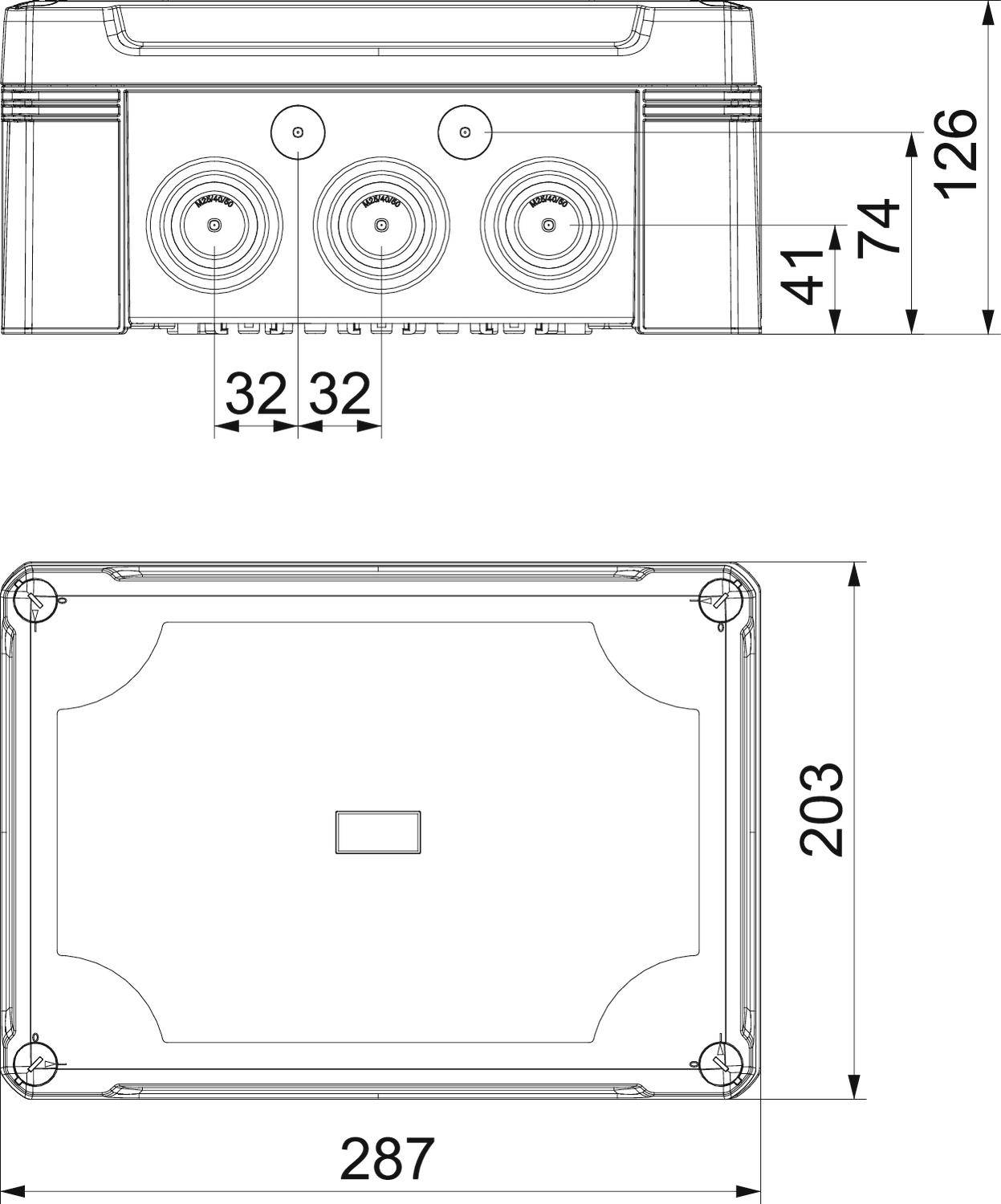

Technical drawing of a rectangular enclosure with dimensions 287 x 203 mm and a depth of 126 mm. Dimensions of hole spacing and height are specified.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section = 25 mm²
Assembly = mounting rail
The form = rectangular
Mounting type = wall/ceiling mounting
Introduction of rear = No
Length = 286 mm
Width = 202 mm
Depth = 126 mm
Can be stacked end-to-end = Yes
The number of entries = 10
The type of casing feed = Knockout
Material = Plastic
Halogen-free = Yes
Surface = untreated
IP67 degree of protection (IP) =
Cover Mounting = screwed
Sealable = Yes
Rated insulation voltage Ui=750 V
With Shielding = No
Weather-proof = Yes
Use temperature =-25: 0.65°C
Explosion tested design = No

Product type: Junction box

Features: Halogen-free

Content: 1 pc(s)

Dim: (L x W x H) 286 x 202 x 126 mm

Length: 286 mm

Width: 202 mm

Height: 126 mm

Depth: 126 mm

: IP67

Mounting: Mounting rail

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1965809 OBO Bettermann 2005104 Junction box (L x W) 286 mm x 202 mm 1 pc(s)

Description

In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016). With transparent lid and top hat profile rail type 2069 with mounting set.

This text is machine translated.
