Name: OBO Bettermann 2005126 Junction box (L x W) 191 mm x 151 mm 1 pc(s)
Brand: OBO Bettermann
SKU: 1956302

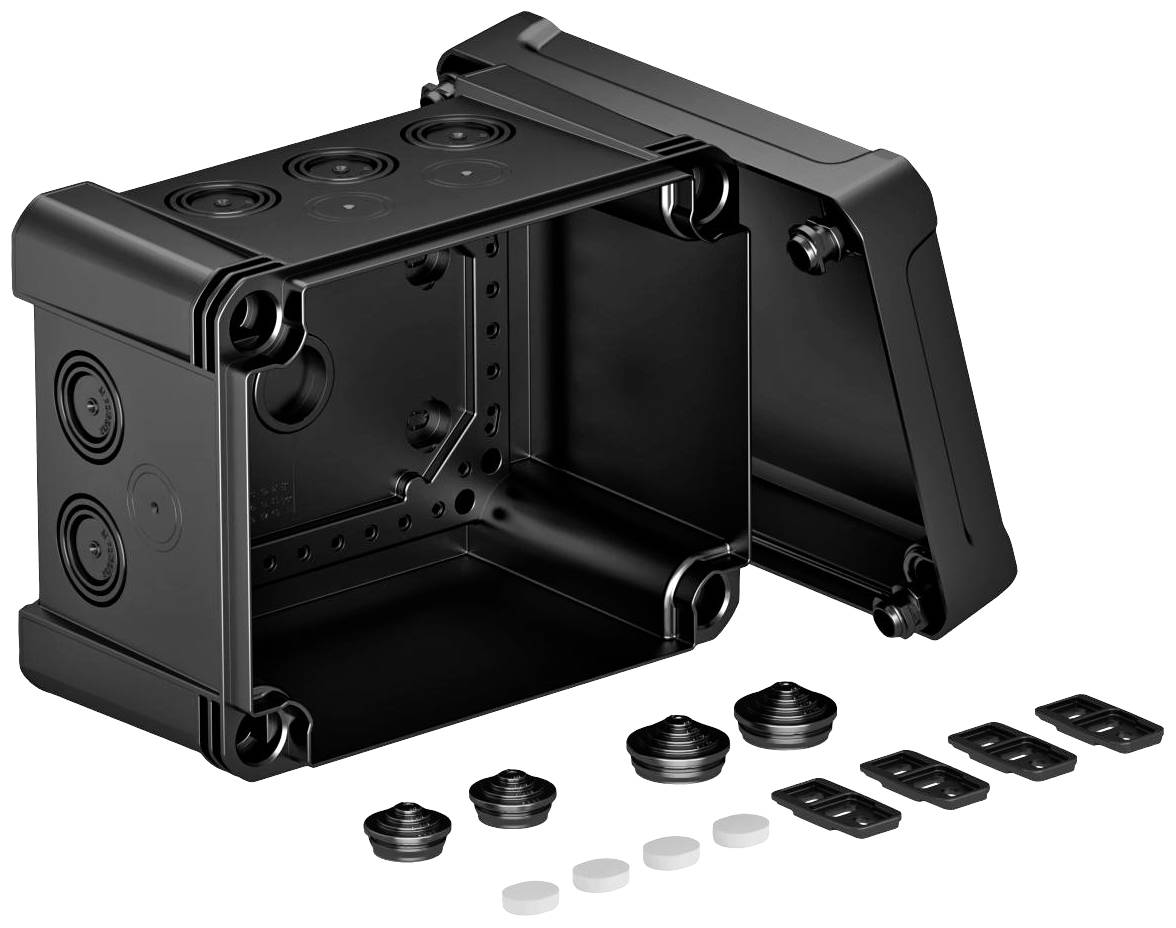

Black rectangular junction box with removable cover, multiple cable entries, and seals, designed to protect electrical connections.

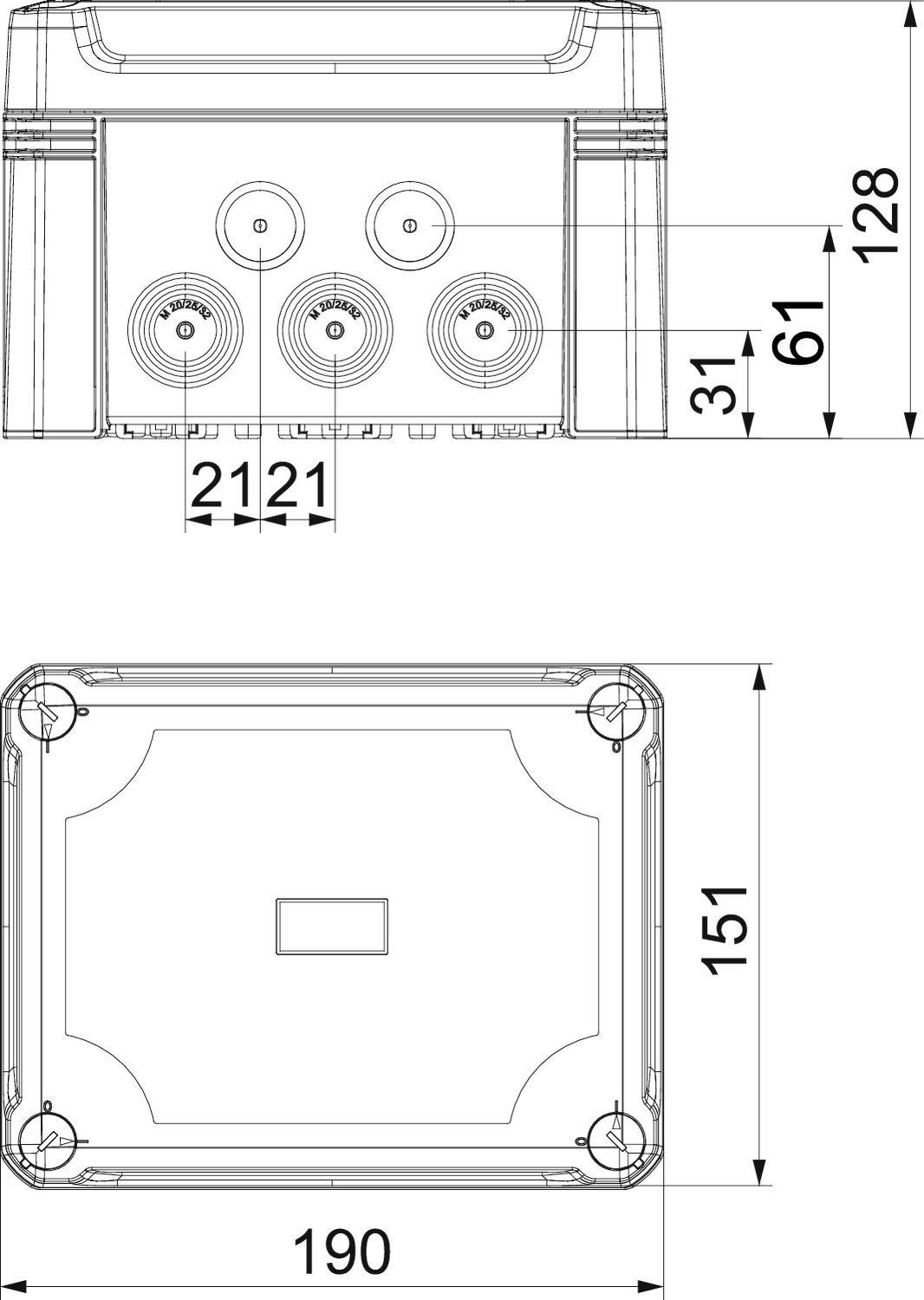

Technical drawing of a rectangular enclosure with dimensions: 212 x 128 mm in the front view and 190 x 151 mm in the top view.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section of 10 mm²
Assembly = without
The form = rectangular
Mounting type = wall/ceiling mounting
Introduction of rear = No
Length = 191 mm
Width = 151 mm.
Depth = 126 mm
Can be stacked end-to-end = Yes
The number of entries = 10
The type of casing feed = Knockout
Material = Plastic
Halogen-free = Yes
Surface = untreated
IP67 degree of protection (IP) =
Cover Mounting = screwed
Sealable = Yes
Rated insulation voltage Ui=750 V
With Shielding = No
Weather-proof = Yes
Use temperature =-25: 0.65°C
Explosion tested design = No

Product type: Junction box

Features: Halogen-free

Content: 1 pc(s)

Dim: (L x W x H) 191 x 151 x 126 mm

Length: 191 mm

Width: 151 mm

Height: 126 mm

Depth: 126 mm

: IP67

Mounting: None

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1956302 OBO Bettermann 2005126 Junction box (L x W) 191 mm x 151 mm 1 pc(s)

Description

In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016).

This text is machine translated.
