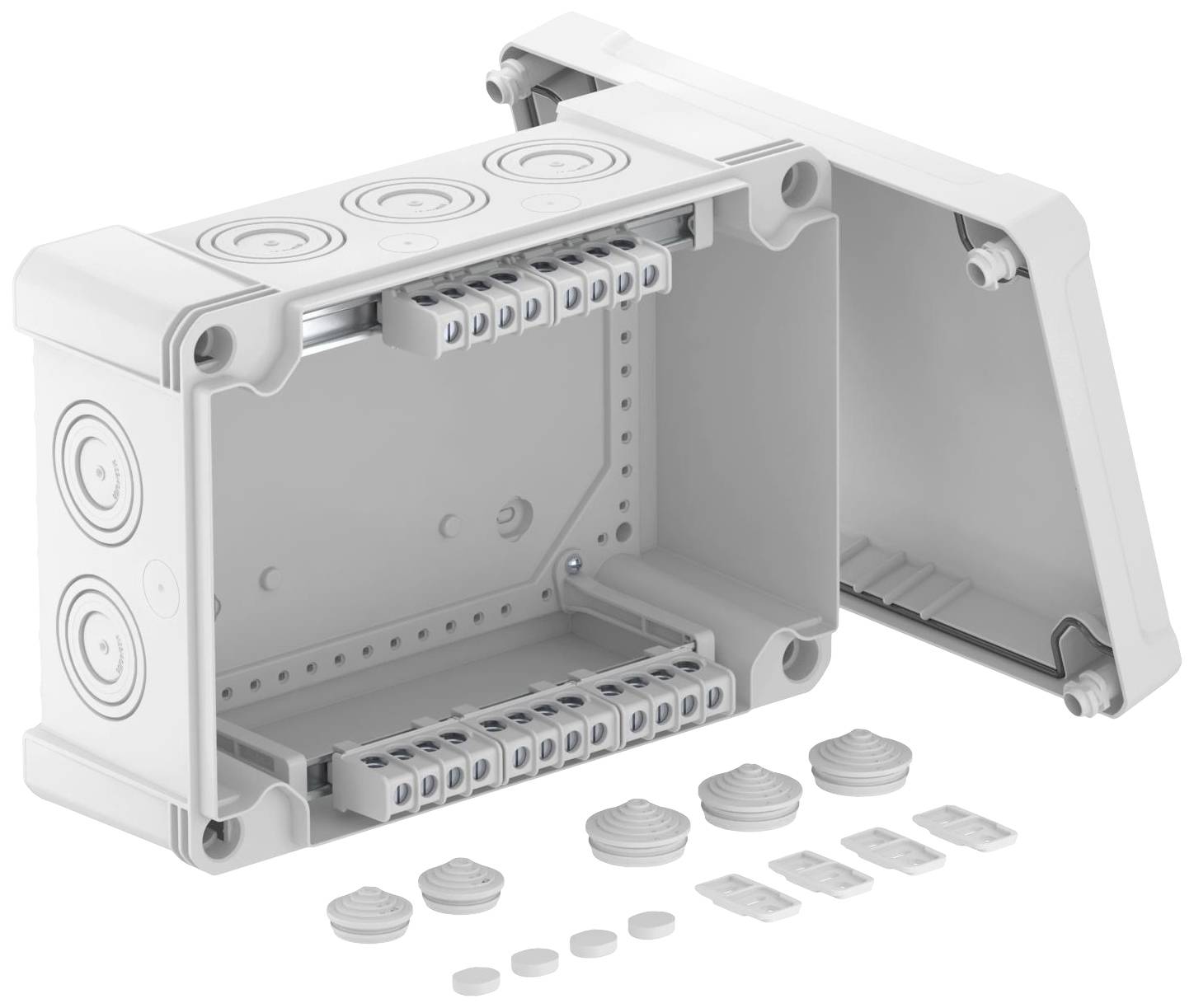

OBO Bettermann 2005214 Junction box (L x W) 286 mm x 202 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 25 mm²
- Assembly=clamp
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = No

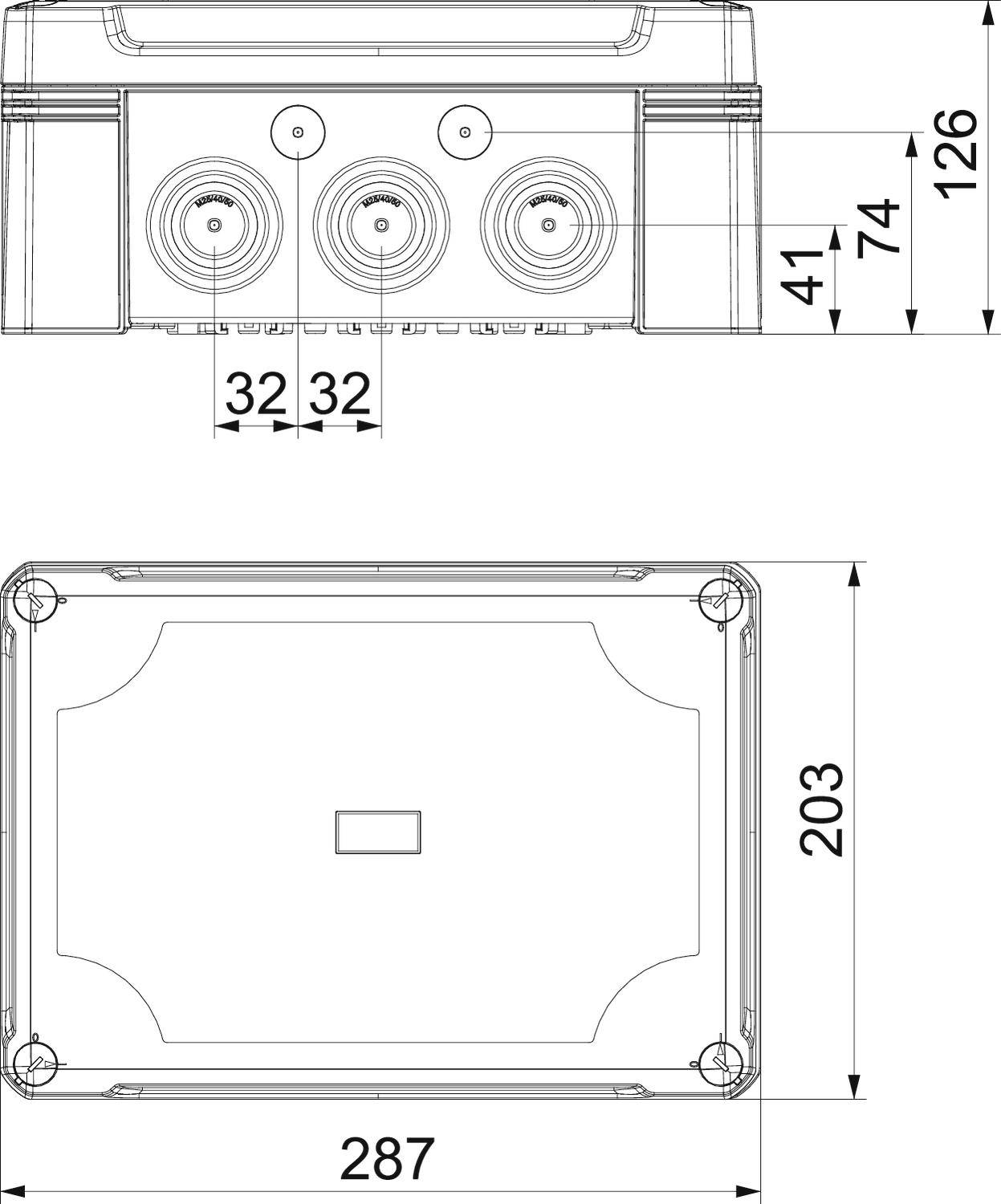

- Length = 286 mm
- Width = 202 mm
- Depth = 126 mm
- Can be stacked end-to-end = Yes
- The number of entries = 10
- The type of casing feed = Knockout
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP67 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=750 V
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-25: 0.65°C
- Explosion tested design = No
- Product type
Junction box
- Features
Weather-proof
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 286 mm x 202 mm
- Length
286 mm
- Width
202 mm
- Depth
126 mm
IP67
- Mounting
Terminal
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957678 OBO Bettermann 2005214 Junction box (L x W) 286 mm x 202 mm 1 pc(s)
Description
In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016). Included are 5 terminal blocks, each with 4 clamping points.
This text is machine translated.
This text is machine translated.
