OBO Bettermann 2005222 Junction box (L x W) 95 mm x 95 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 2.5 mm²
- Assembly=clamp
- The form = square
- Mounting type = wall/ceiling mounting
- Introduction of rear = No
- Length = 95 mm
- Width = 95 mm
- Depth = 72 mm
- Can be stacked end-to-end = Yes
- The number of entries = 7
- The type of casing feed = Knockout
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP67 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=750 V
- With Shielding = No
- Weather-proof = Yes
- Use temperature =-25: 0.65°C
- Explosion tested design = No
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 95 mm x 95 mm
- Length
95 mm
- Width
95 mm
- Depth
72 mm
IP67
- Mounting
Terminal
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959050 OBO Bettermann 2005222 Junction box (L x W) 95 mm x 95 mm 1 pc(s)
Description

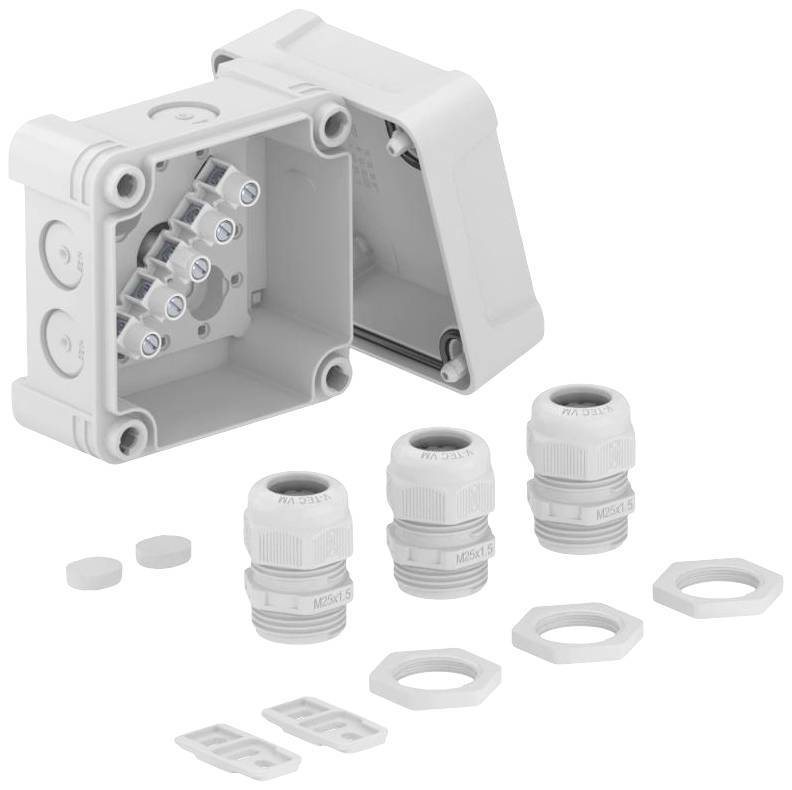

In the robust cable junction box of the X-series electric lines. They are suitable for indoor and outdoor use. For easy cable entry are the introduction of openings pre-stamped. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016). Additionally, a terminal strip, three cable glands V-TEC M20 and three matching lock nuts.
This text is machine translated.
This text is machine translated.
