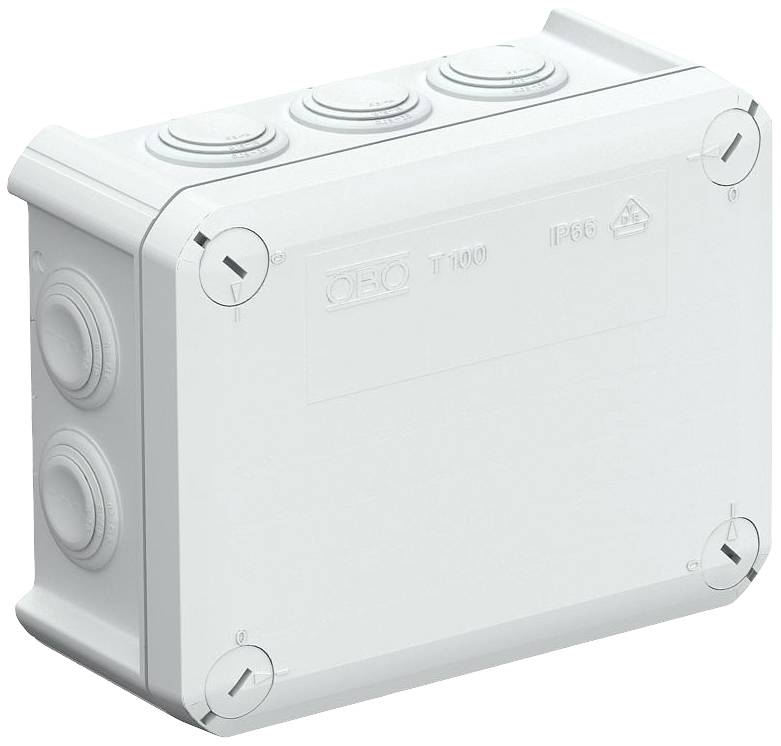

OBO Bettermann 2007081 Junction box (L x W) 102 mm x 136 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section of 10 mm²
- Length = 102 mm
- Width = 136 mm
- Depth = 57 mm
- The number of entries = 10
- Color = gray
- IP66 degree of protection (IP) =
- Sealable = Yes
- Product type
Junction box
- Features
Sealable
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 102 mm x 136 mm
- Length
102 mm
- Width
136 mm
- Depth
57 mm
IP66
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964032 OBO Bettermann 2007081 Junction box (L x W) 102 mm x 136 mm 1 pc(s)
Description
The cable junction box are made of polypropylene, a thermoplastic plastic, and plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 10 x M25 seals can be installed or the seals are cut with a knife to the points intended to an introduction opening for wires or pipes. Alternatively, you can cable glands through the openings in inserted instead of the seals and from the inside with a locknut countered. The cable junction box can with sheet-metal screws 3.5 x 9.5 in holes on mounting plates can be mounted. Cover with labelling field
This text is machine translated.
This text is machine translated.
