OBO Bettermann 2007444 Junction box (L x W) 240 mm x 190 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 25 mm²
- Assembly=clamp
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 240 mm
- Width = 190 mm
- Depth = 95 mm
- Can be stacked end-to-end = Yes
- The number of entries = 16
- The type of casing feed = level membrane can be cut
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = gray
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- Use temperature =-5.:00-15 °C
- For Ex Zone Gas = without
- Product type
Junction box
- Features
Halogen-free
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

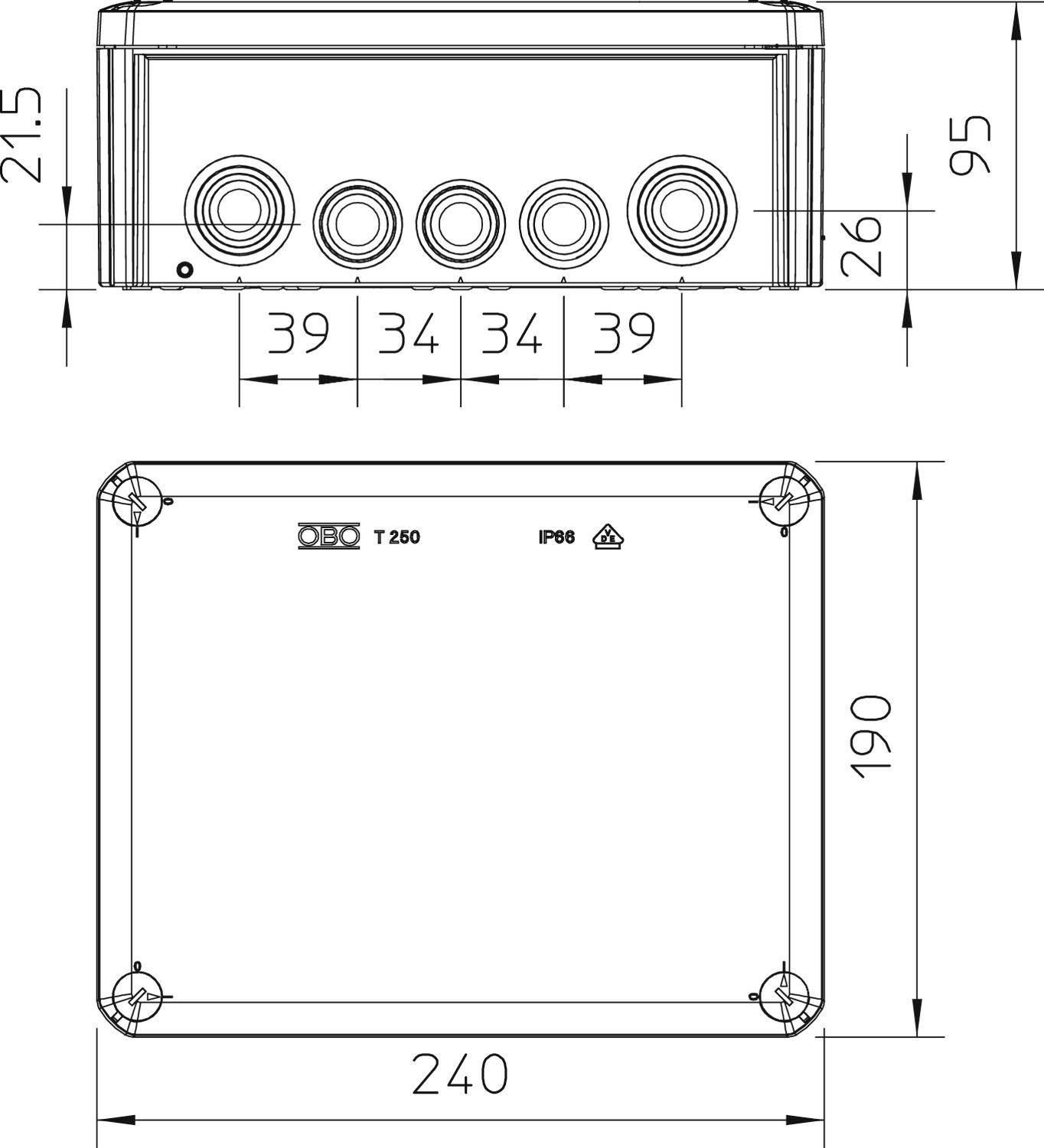

(L x W) 240 mm x 190 mm
- Length
240 mm
- Width
190 mm
- Depth
95 mm
IP66
- Mounting
Terminal
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958625 OBO Bettermann 2007444 Junction box (L x W) 240 mm x 190 mm 1 pc(s)
Description

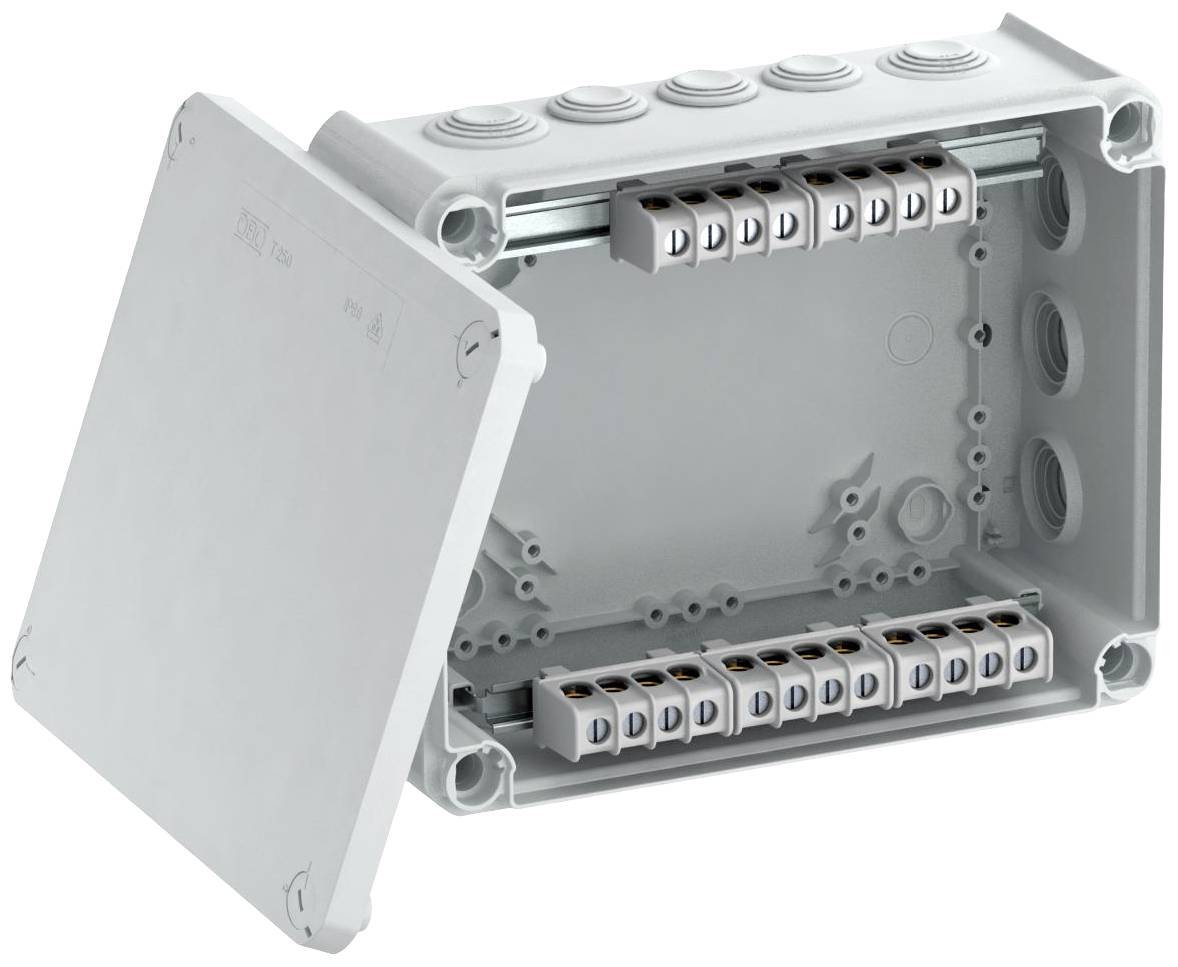

The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 9 x M25 7 x M32 seals can be installed, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 225 x 173 x 86 lid with labelling field and lead-sealable.
This text is machine translated.
This text is machine translated.
