Name: OBO Bettermann 2007448 Junction box (L x W) 285 mm x 201 mm 1 pc(s)
Brand: OBO Bettermann
SKU: 1959970

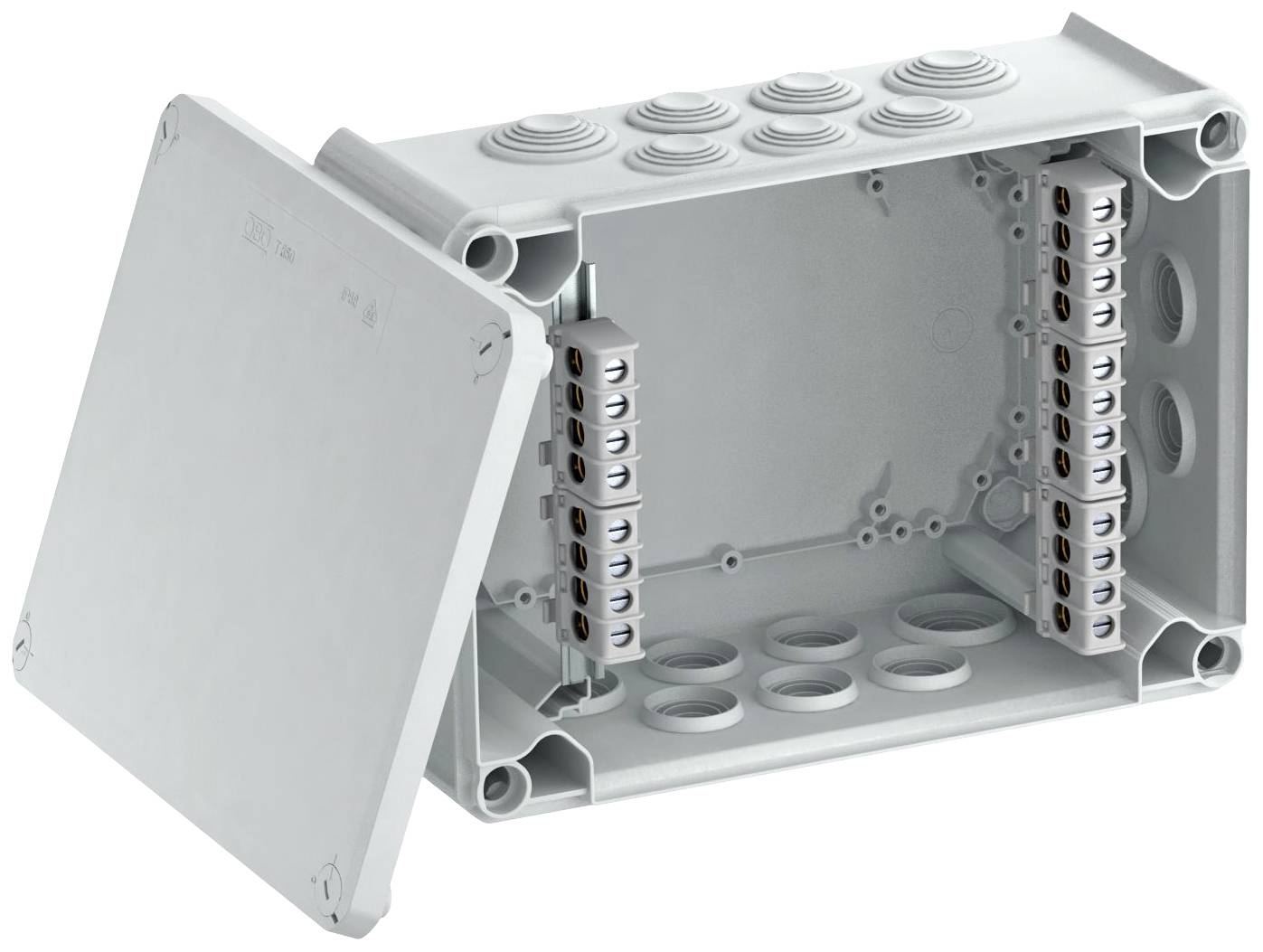

Grey, rectangular plastic distribution box with its lid removed, showing cable entries and terminal strips inside.

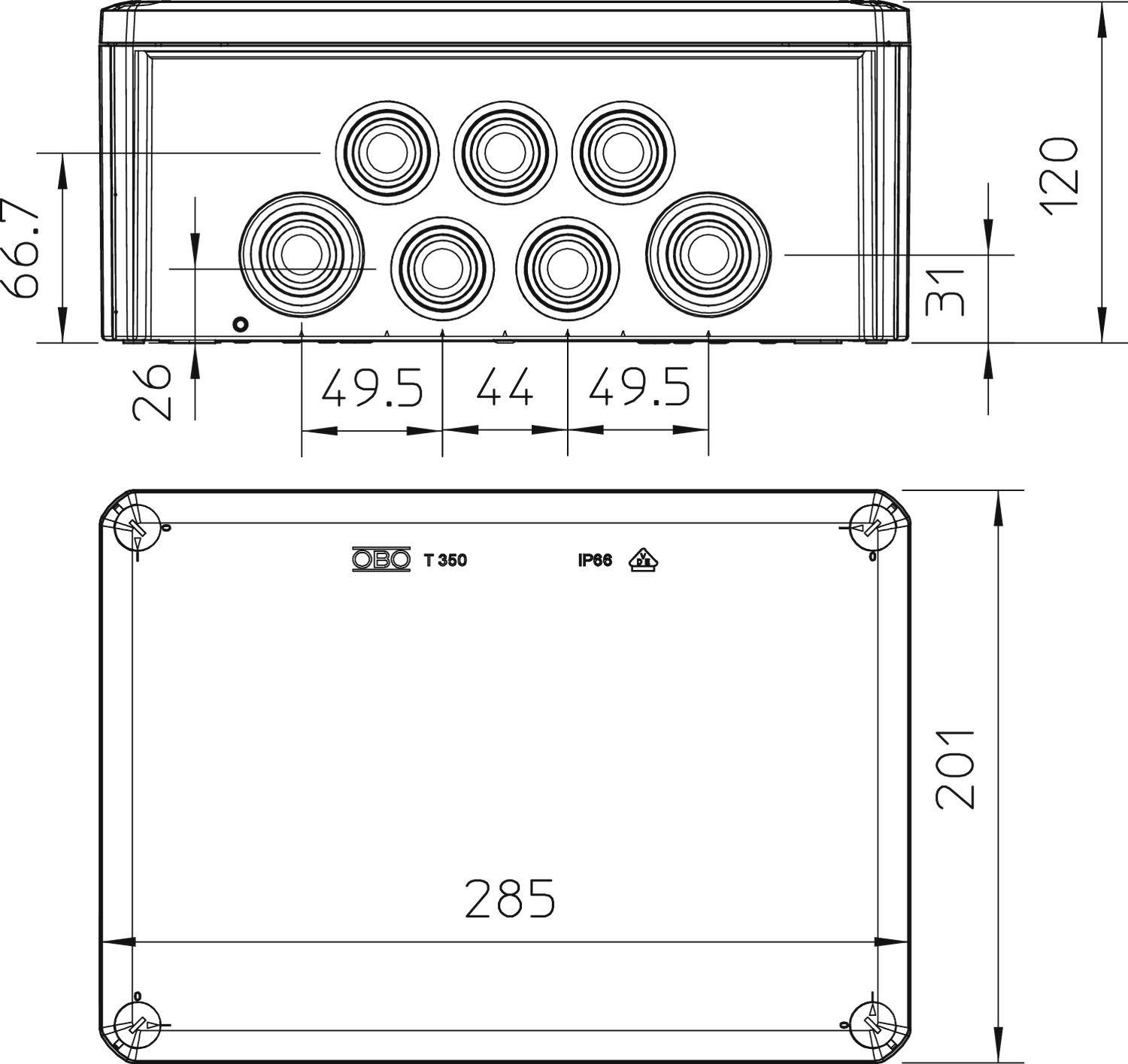

Technical drawing of a rectangular enclosure with seven round openings on top and dimensional specifications in millimetres: 285 x 201 x 120.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Max. Conductor cross-section = 35 mm²
Assembly=clamp
The form = rectangular
Mounting type = wall/ceiling mounting
Introduction of rear = Yes
Length = 285 mm
Width = 201 mm
Depth = 120 mm
Can be stacked end-to-end = Yes
The number of entries = 24
The type of casing feed = level membrane can be cut
Material = Plastic
Halogen-free = Yes
Surface = untreated
Color = gray
IP66 degree of protection (IP) =
Cover Mounting = screwed
Sealable = Yes
Rated insulation voltage Ui=500 V
Function receives = without
With Shielding = No
Weather-proof = No
Use temperature =-5.:00-15 °C
For Ex Zone Gas = without

Product type: Junction box

Features: Halogen-free

Content: 1 pc(s)

Factory colour: Grey

Dim: (L x W) 285 mm x 201 mm

Length: 285 mm

Width: 201 mm

Depth: 120 mm

: IP66

Mounting: Terminal

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1959970 OBO Bettermann 2007448 Junction box (L x W) 285 mm x 201 mm 1 pc(s)

Description

The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 16 x M32 8 x M40 seals can be installed, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 267 x 182 x 110 lid with labelling field and lead-sealable.

This text is machine translated.
