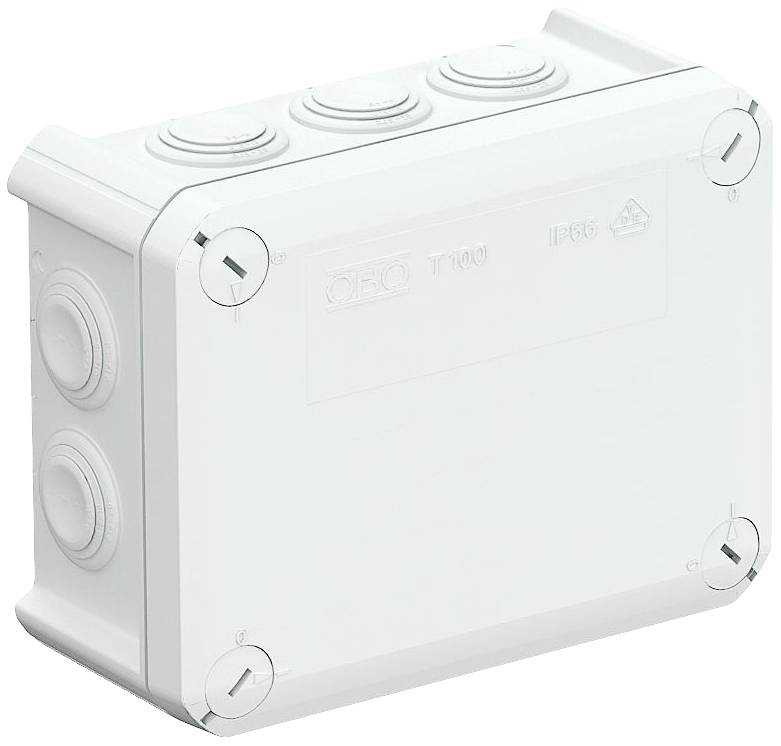

OBO Bettermann 2007533 Junction box (L x W) 151 mm x 117 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section of 10 mm²
- Assembly = without
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = Yes
- Length = 151 mm.
- Width = 117 mm
- Depth = 67 mm
- Can be stacked end-to-end = Yes
- The number of entries = 10
- The type of casing feed = level membrane can be cut
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = white
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = Yes
- Rated insulation voltage Ui=500 V
- Function receives = without
- With Shielding = No
- Weather-proof = No
- Use temperature =-5.:00-15 °C
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
White
- Dim
(L x W x H) 151 x 117 x 67 mm
- Length
151 mm
- Width
117 mm
- Height
67 mm
- Depth
67 mm
IP66
- Mounting
None
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962739 OBO Bettermann 2007533 Junction box (L x W) 151 mm x 117 mm 1 pc(s)
Description
The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be directly through the 10 x M25 seals can be installed, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 136 x 102 x 57 lid with labelling field and lead-sealable.
This text is machine translated.
This text is machine translated.
