Name: OBO Bettermann 2007750 Junction box (L x W) 114 mm x 114 mm 1 pc(s)
Brand: OBO Bettermann
SKU: 1964759

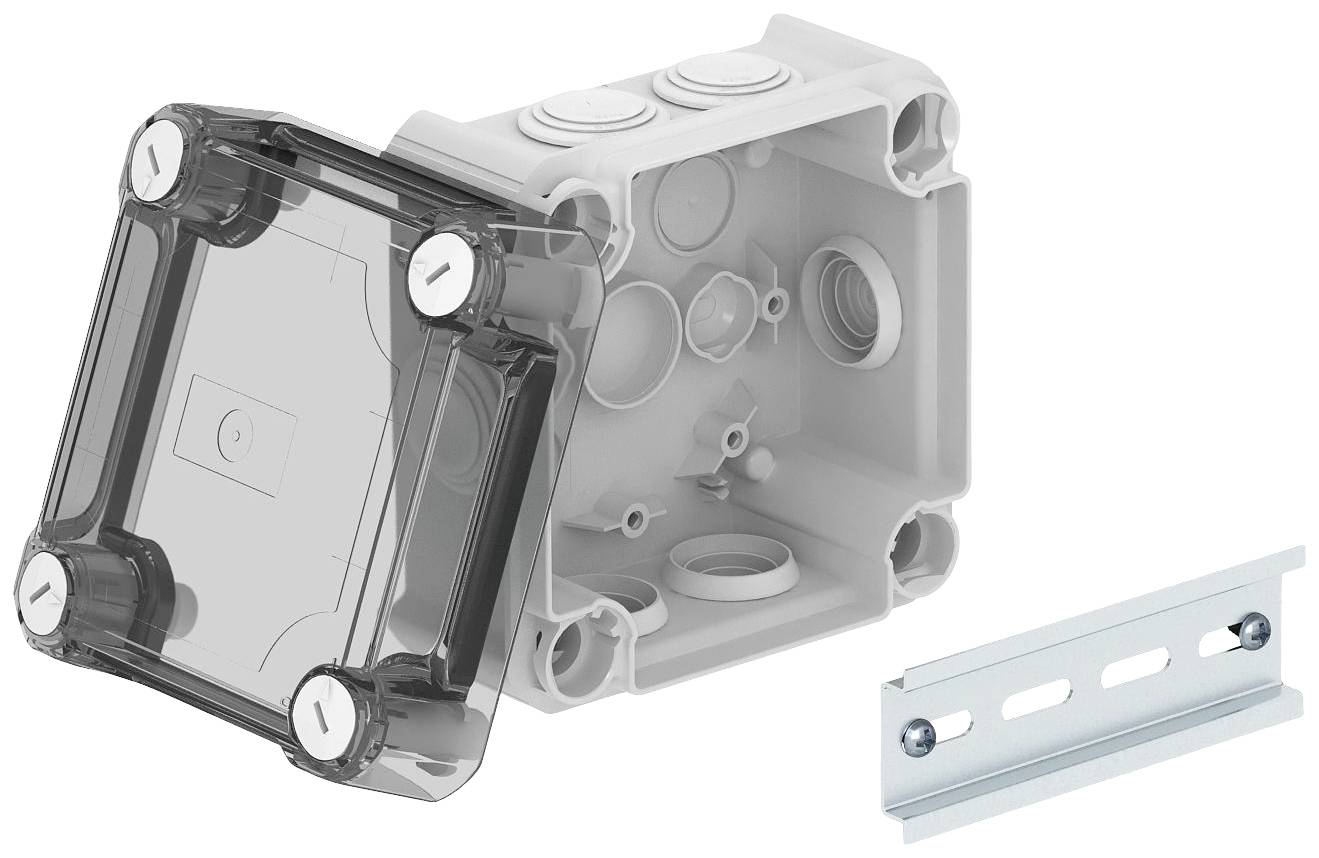

Electrical distribution box with a transparent lid; internal recesses and cable openings visible. Metal mounting bracket beside it.

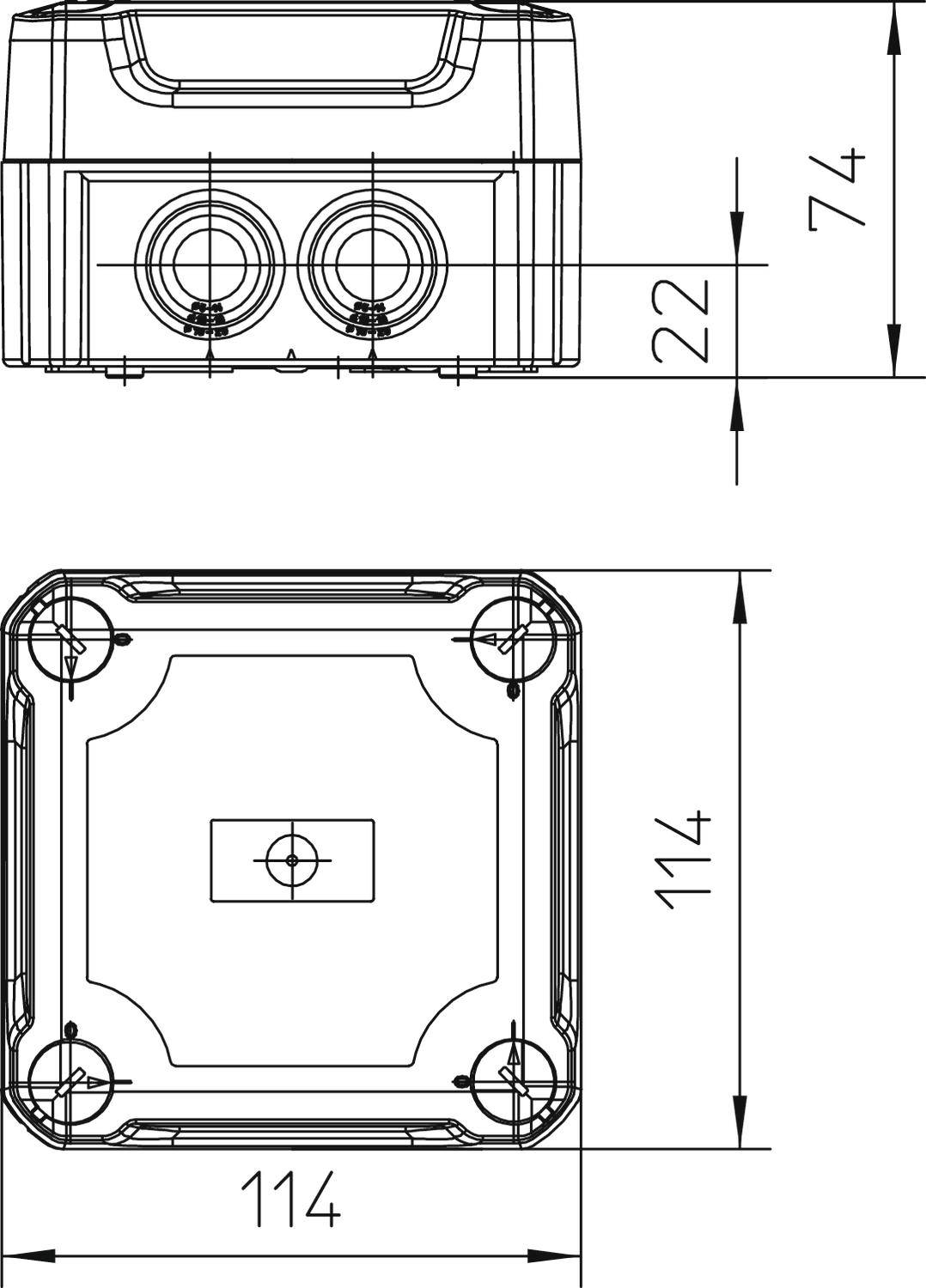

Technical drawing of a rectangular enclosure with two connections on top and dimensions: 74 mm height, 114 mm width and height.

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Assembly = without
The form = square
Mounting type = wall/ceiling mounting
Introduction of rear = Yes
Length = 114 mm
Width = 114 mm
Depth = 74 mm
Can be stacked end-to-end = Yes
The number of entries = 7
The type of casing feed = other
Material = Plastic
Halogen-free = Yes
Surface = untreated
Color = gray
IP66 degree of protection (IP) =
Cover Mounting = screwed
Sealable = Yes
Rated insulation voltage Ui=500 V
Function receives = without
With Shielding = No
Weather-proof = Yes
Explosion tested design = No
For Ex Zone Gas = without
For Ex zone dust = without

Product type: Junction box

Features: Halogen-free

Content: 1 pc(s)

Factory colour: Grey

Dim: (L x W x H) 114 x 114 x 74 mm

Length: 114 mm

Width: 114 mm

Height: 74 mm

Depth: 74 mm

: IP66

Mounting: None

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1964759 OBO Bettermann 2007750 Junction box (L x W) 114 mm x 114 mm 1 pc(s)

Description

The cable junction boxes are made of a thermoplastic polypropylene with plug-in gaskets made of ethylene vinyl acetate EVA. Lines can be installed directly by the 7xM25 seals, or the seals wereden with a knife to the provided cut to an introduction opening for wires or pipes. Alternatively, you can cable glands instead of the seals are inserted through the openings must be countered by and from the inside with a locknut. The cable junction box with sheet metal screws on mounting plates can be mounted on the ground in 3.5x9.5 openings. Internal dimensions: 100 x 100 x 65 lid with labelling field and lead-sealable.

This text is machine translated.
