OBO Bettermann 2007821 Junction box (L x W) 150 mm x 116 mm 1 pc(s)

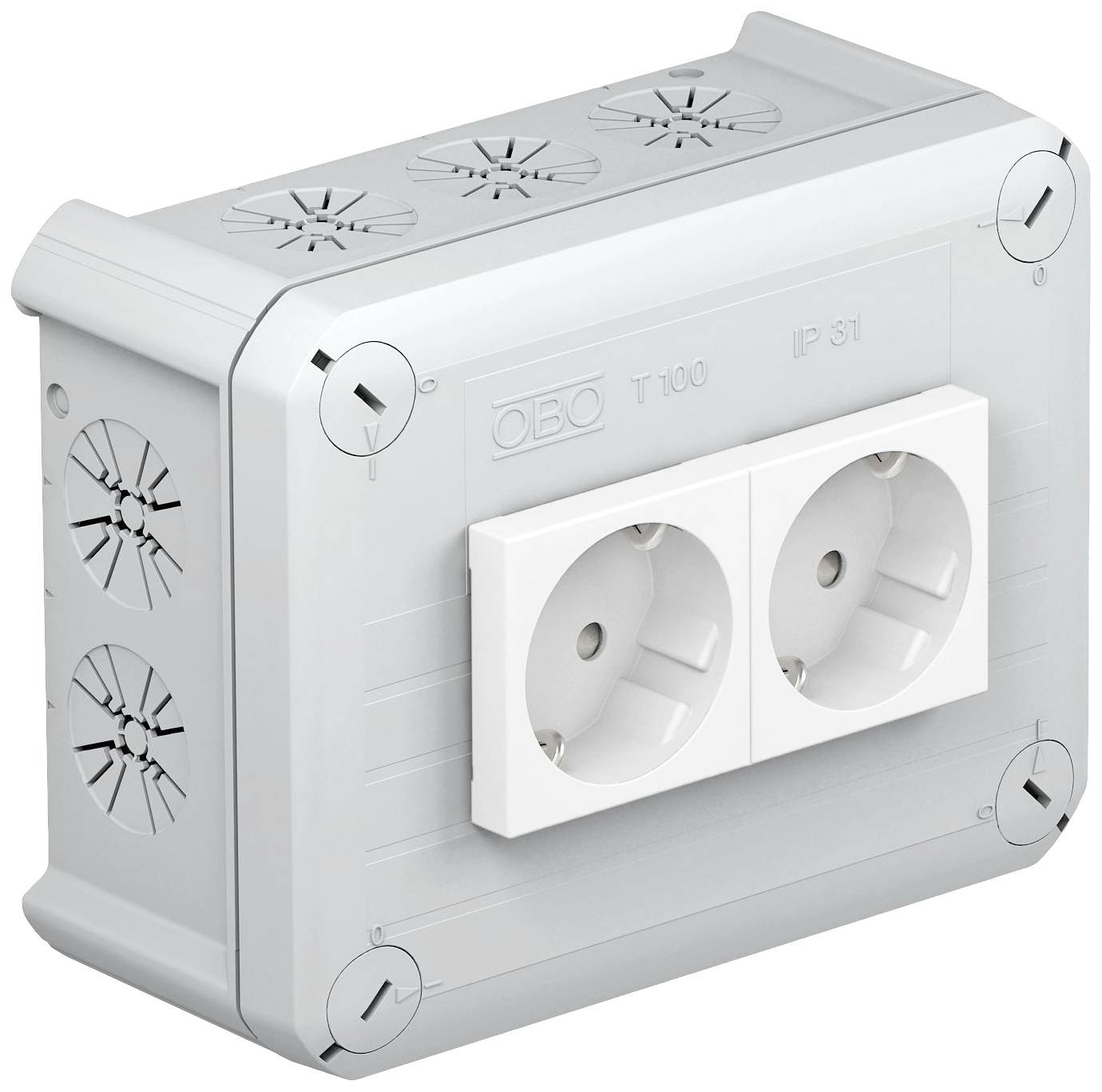

Double socket in a grey rectangular wall box with multiple connection options. Suitable for interior installations.

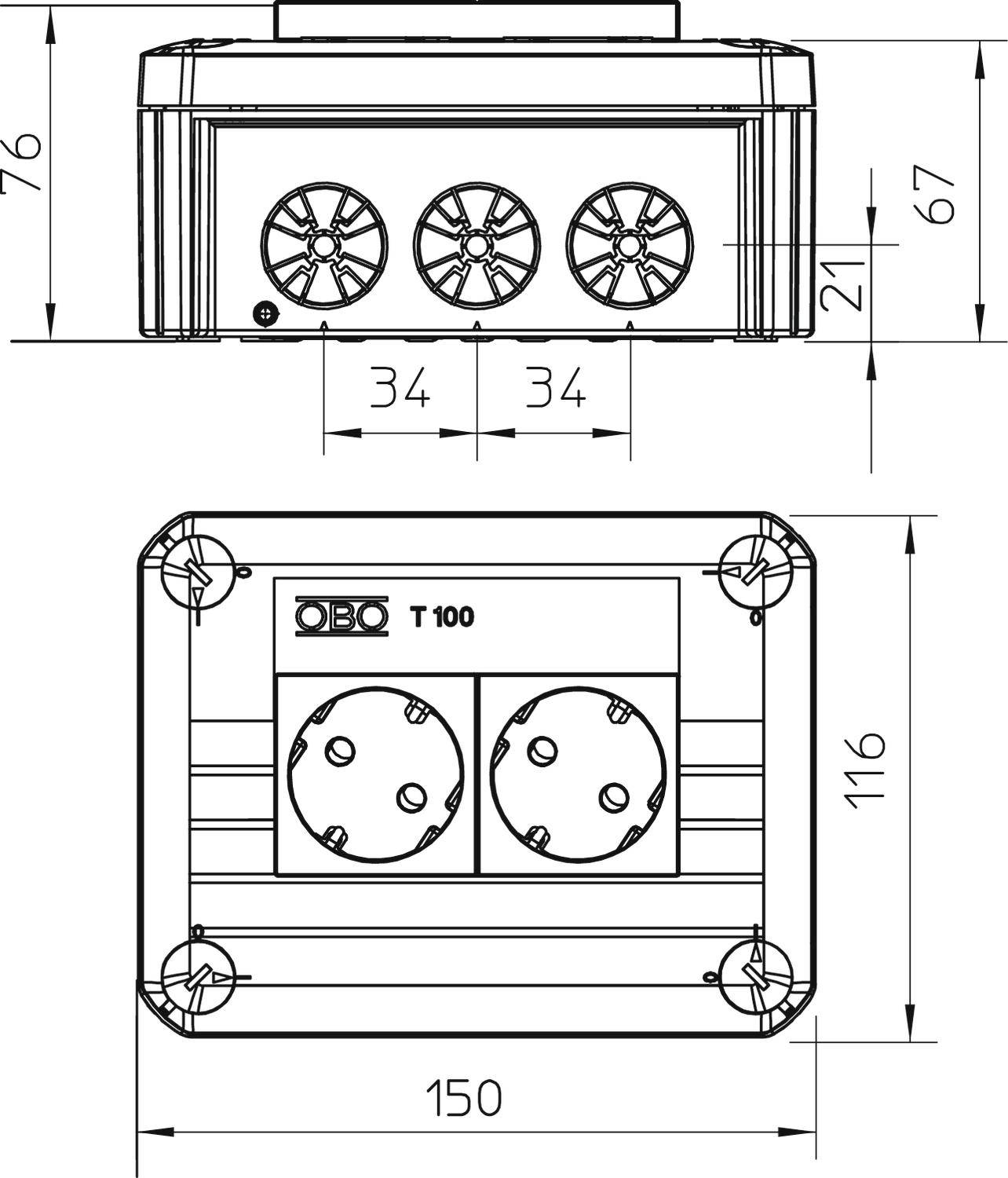

Technical Drawing of a Rectangular Socket Distribution Box. Top view shows two sockets, side view shows dimensions.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Max. Conductor cross-section = 2.5 mm²
  • Assembly = other
  • The form = rectangular
  • Mounting type = wall/ceiling mounting
  • Introduction of rear = Yes
  • Length = 150 mm
  • Width = 116 mm
  • Depth = 67 mm
  • The number of entries = 10
  • The type of casing feed = Knockout
  • Material = Plastic
  • Halogen-free = Yes
  • Color = gray
  • IP30 degree of protection (IP) =
  • Cover Mounting = screwed
  • Sealable = Yes
  • Rated insulation voltage Ui=500 V
  • Function receives = without
  • With Shielding = No
  • Weather-proof = No
  • For Ex Zone Gas = without
Product type

Junction box

Features

Halogen-free

Content

1 pc(s)

Factory colour

Grey

Dim

(L x W) 150 mm x 116 mm

Length

150 mm

Width

116 mm

Depth

67 mm

IP30

Mounting

Other

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1964043 OBO Bettermann 2007821 Junction box (L x W) 150 mm x 116 mm 1 pc(s)

Description

Cable junction box with 2 power sockets 33° red 151 x 117 x 67, PP, light gray RAL 7035
