OBO Bettermann 2012804 Cable gland Plastic Dark grey 25 pc(s)
Product type
Cable gland
Type
Straight
Material
Plastic
Clamp Ø
36 mm
Terminal Ø (max.)
39 mm
EAN:
Part number:
Item no:
Technical specifications
- Thread Type: PG
- Suitable for cable diameter: 36. -39 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Color: dark gray
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: yes
- With strain relief: no
- Type of seal: sealing ring
- Product type
Cable gland
- Features
for ribbon cables
- Factory colour
Dark grey
- Type
Straight
- Material
Plastic
- Clamp Ø
36 mm
- Terminal Ø (max.)
39 mm
IP31
- Halogen-free
Yes
- Content
25 pc(s)
- Manufacturer part #
2012804
- Type
106 FL 21 9 39
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956121 OBO Bettermann 2012804 Cable gland Plastic Dark grey 25 pc(s)
Description

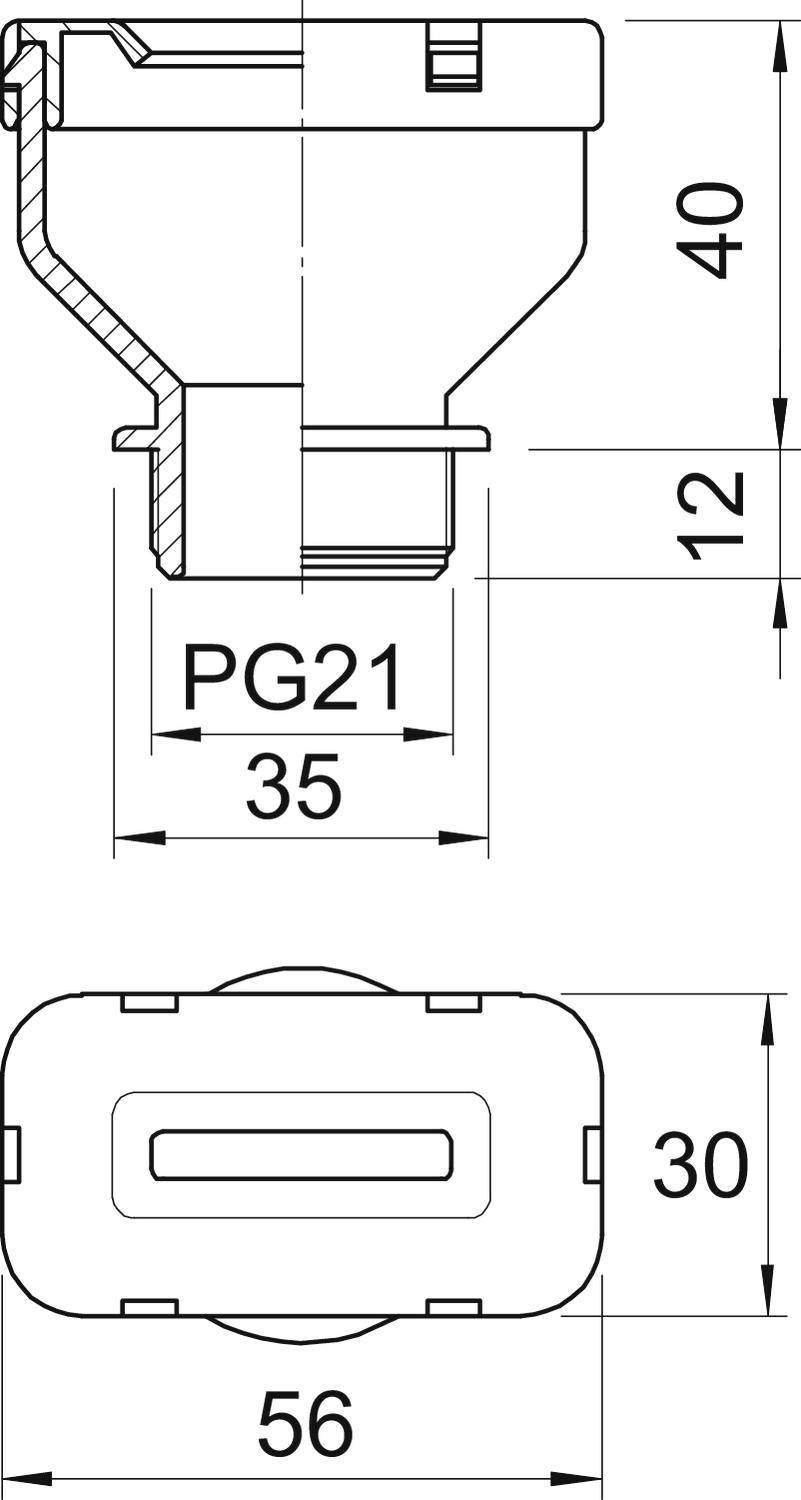

Flat cable entry in the twisting cap design, with PG threads according to DIN 40430, protection class IP 31, with pre-assembled nozzle sealing ring 107/F.
