OBO Bettermann 2016195 KL-T 16-35 Terminal flexible: - fixed: 16-35 mm² Number of pins: 4 10 pc(s) Grey
Packaging type
Piece
Product type
Terminal
Cross section (inflexible) (min.)
16 mm²
Cross section (inflexible) (max.)
35 mm²
Number of pins
4
EAN:
Part number:
Item no:
Technical specifications
- Explosion tested design "Ex e": No
- Design of electrical connection 1: screw terminals.
- Connection position: lateral
- Number of clamping points each pole: 1
- Installation type: Other
- Material of the insulating body: thermoplastic
- End plate required: No
- Transparent: no
- Packaging type
Piece
- Product type
Terminal
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
35 mm²
- Number of pins
4
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Content
10 pc(s)

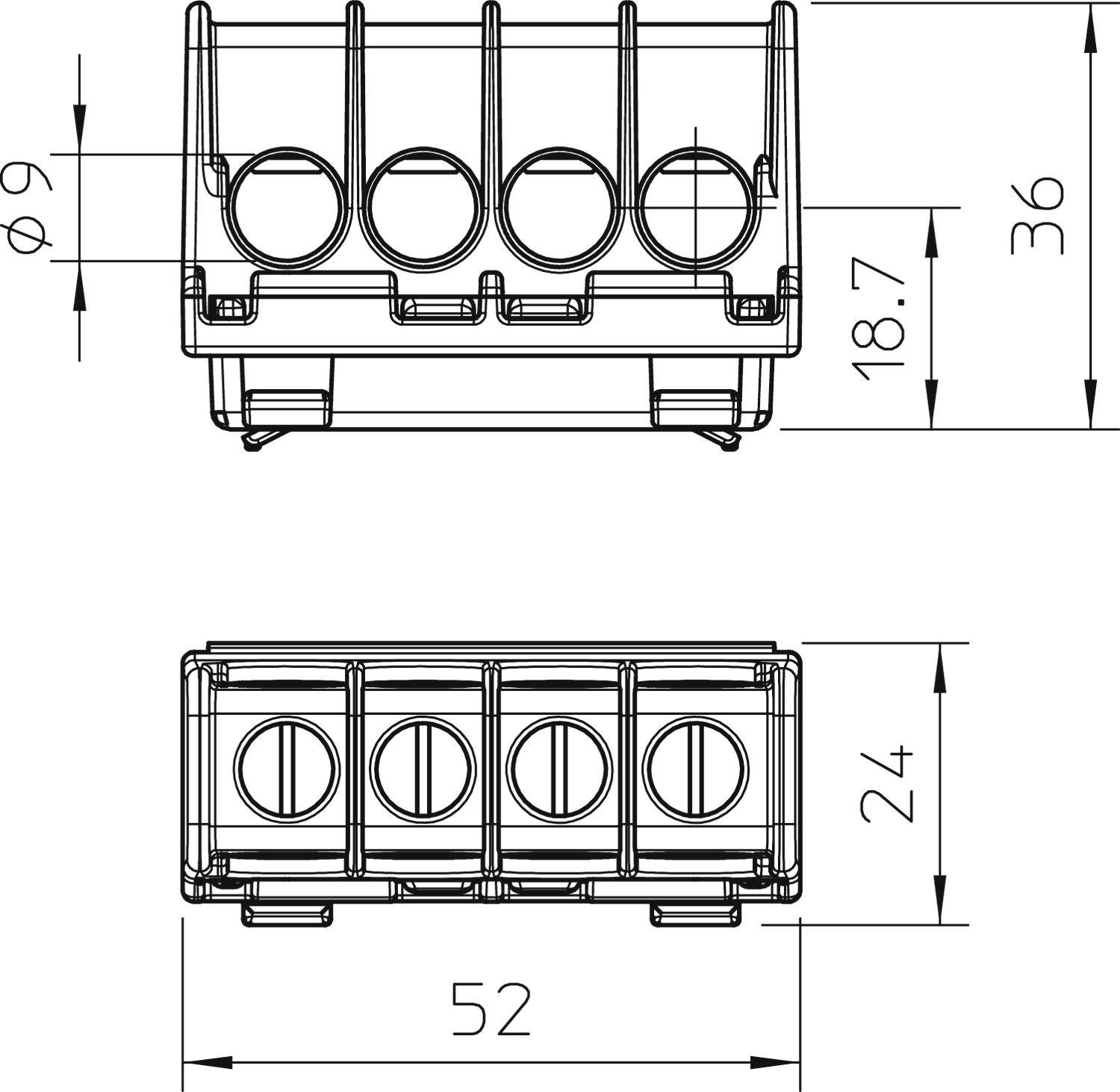

- Dim
(L x W) 52 mm x 24 mm
- Manufacturer part #
2016195
- Connection
Screws
- Insulation material
Thermoplastic
- Contact material
Brass
- Nominal voltage
400 V
- Width
24 mm
- Length
52 mm
- Pitch
24 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962730 OBO Bettermann 2016195 KL-T 16-35 Terminal flexible: - fixed: 16-35 mm² Number of pins: 4 10 pc(s) Grey
Description
Clamps brass, Screws steel, galvanised and transparent passivated, nominal cross-section 16 ÷ 35 mm², rated voltage 400 V, 1-pole, with socket terminals max. connectable conductor each clamping point max. 4 x 35 mm², 4 x 25 mm², 8 x 16 mm² or 12 x 10 mm².
