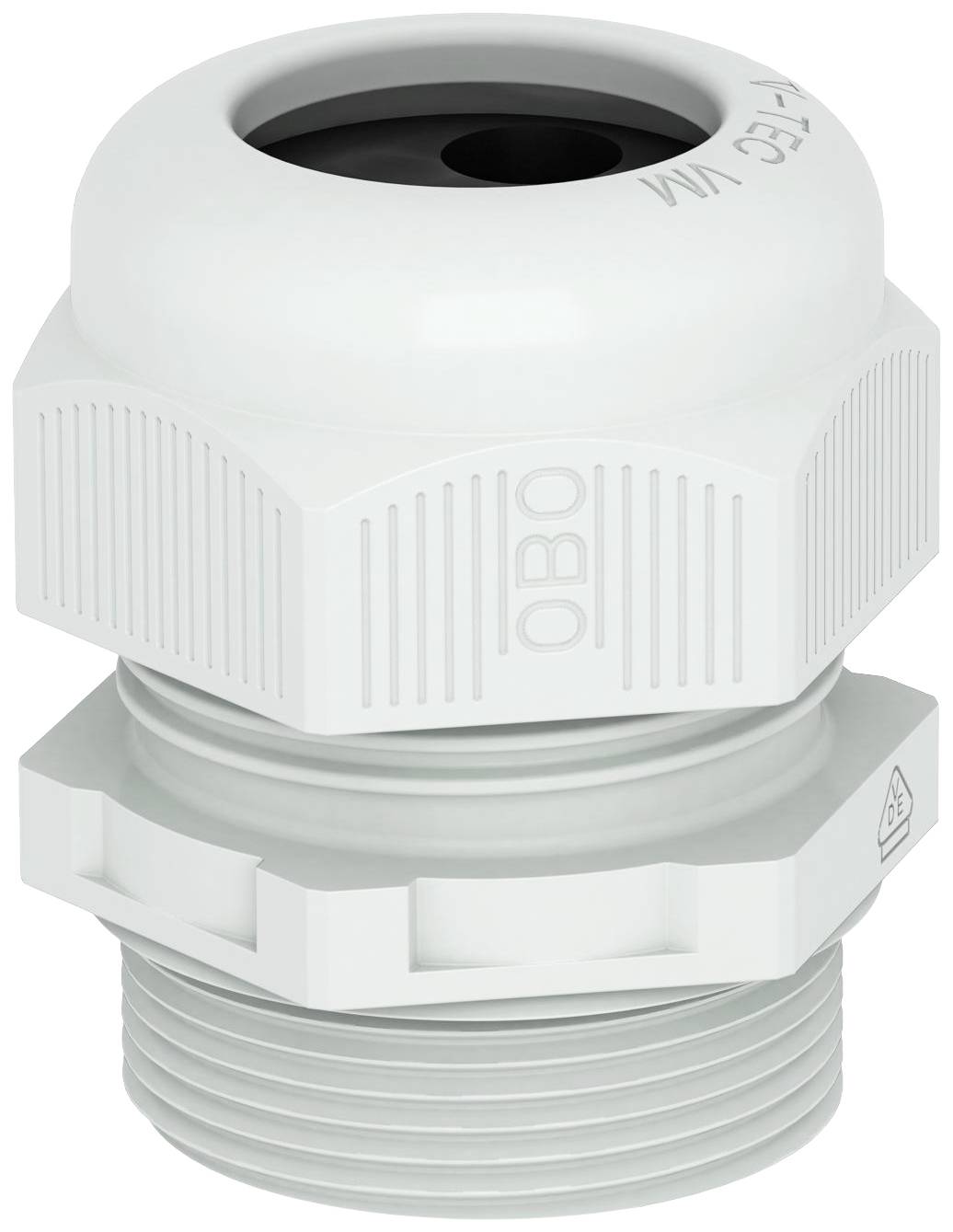

OBO Bettermann 2022122 Cable gland 1.5 mm Plastic, PA 25 pc(s)
Type
Straight
Material
Plastic
PA
Features
with strain relief
Internal thread
1.5 mm
Thread length
10 mm
EAN:
Part number:
Item no:
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 25
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Features
with strain relief
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
PA
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
29 mm
- Halogen-free
Yes
- Content
25 pc(s)
- Manufacturer part #
2022122
- Type
V-TEC VM25 3x6
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956390 OBO Bettermann 2022122 Cable gland 1.5 mm Plastic, PA 25 pc(s)
Description
The fastest and most comfortable way with cable glands at cable branch boxes and housings for strain-relief and sealing to ensure: the tried-and-tested V-TEC VM cable glands from OBO. With the integrated lip seal and special OBO lamellae technology, the protection class IP68 is achieved. Strain-relief and sealing are tested according to DIN EN 50262. The connection threads are metric and thus can be used without sell. Once screwed, keeps the installation forever: The ideal thread adjustment with the right slope provides permanently for vibration strength. Applications: from the private residential area with cable junction box to industrial applications in the distribution cabinet. Temperature range: -20°C to +65°C
