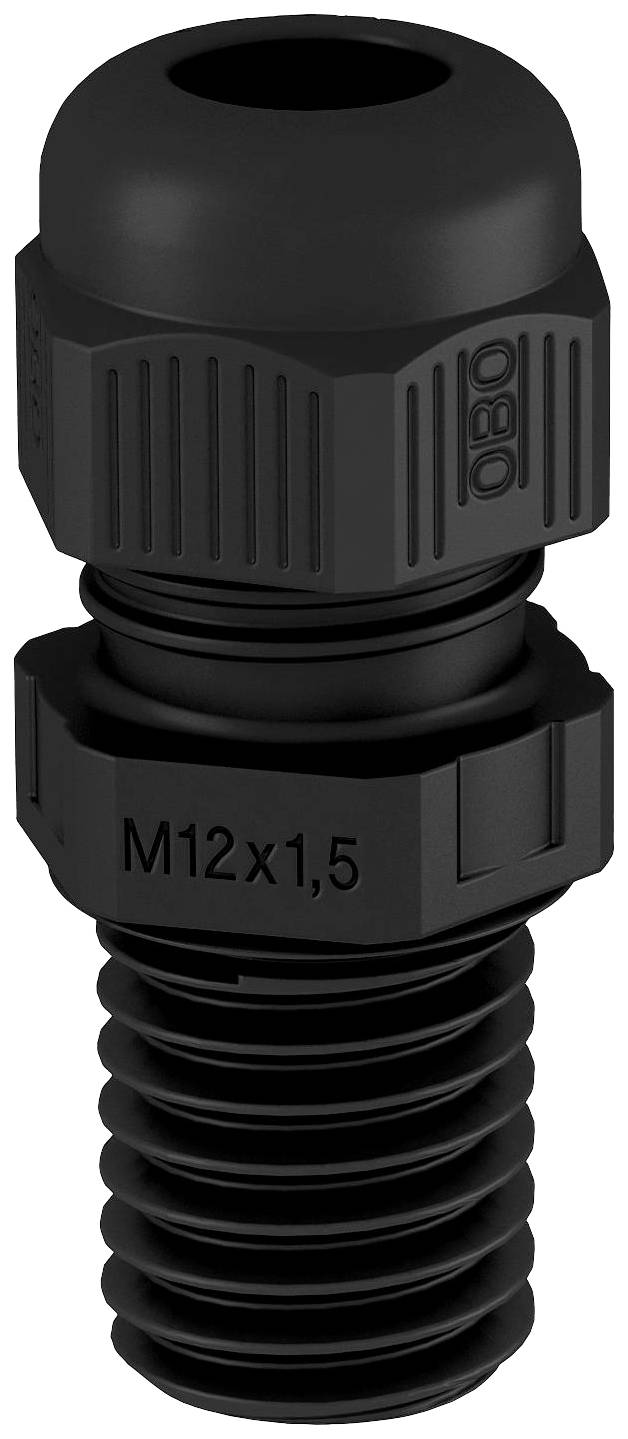

OBO Bettermann 2022970 Cable gland 1.5 mm Plastic, PA Black 25 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Type
Straight
Material
Plastic
PA
Clamp Ø
9 mm
Terminal Ø (max.)
17 mm
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 25
- Suitable for cable diameter: 9. .17 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Colour: Black
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Black
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
PA
- Clamp Ø
9 mm
- Terminal Ø (max.)
17 mm
- Thread length
15 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
29 mm
- Halogen-free
Yes
- Content
25 pc(s)
- Manufacturer part #
2022970
- Type
V-TEC VM L25 SW
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962666 OBO Bettermann 2022970 Cable gland 1.5 mm Plastic, PA Black 25 pc(s)
Description
With metric connection thread according to IEC 423 robust cable gland into domed cap design for high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Sealing ring made of acrylonitrile butadiene rubber/Polychloropren. Molded shape lip seal between the two fittings, so no connecting thread sealing ring is required, VDE-tested according to DIN EN 50262, IP 68. Temperature range -20°C to +65°C.
